Trotec SL400 - Display and Connections; Display Indicators; Device Connections

EN 5
digital sound level meter SL400

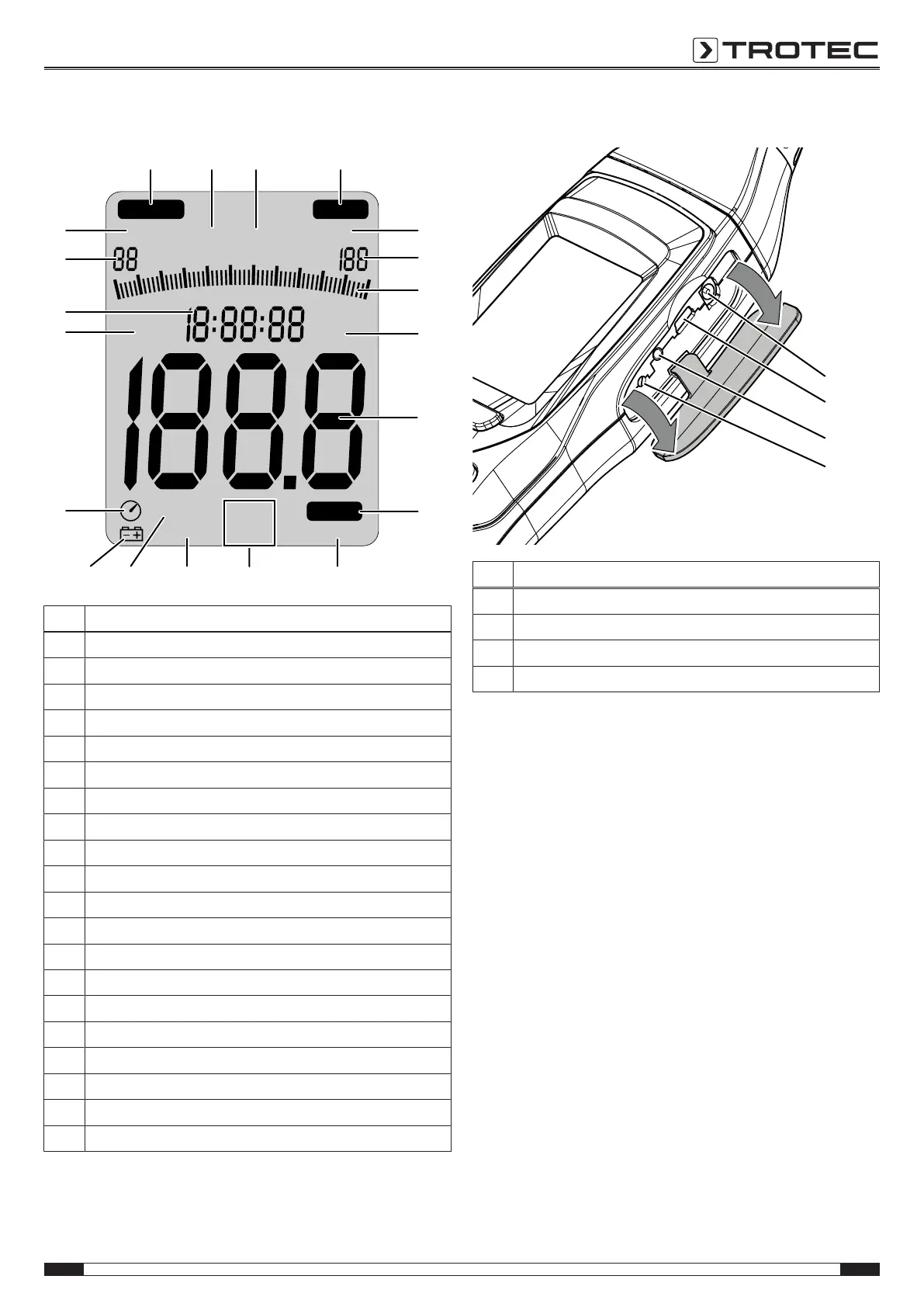

Display
MAX MIN FAST SLOW
REC dBA
FULL dBC
HOLD
AUTO
OVERUNDER
DATE TIME
15
16 17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
No. Designation
15 UNDER indication (i.e. fallen below measuring range)
16 MIN indication
17 FAST indication
18 OVER indication (i.e. measuring range exceeded)
19 SLOW indication
20 Indication of the scale's maximum value
21 Display of the measuring scale
22 TIME indication
23 Measurement value display
24 AUTO indication
25 HOLD indication
26 dBA/ dBC indication
27 FULL indication (memory full)
28 REC indication
29 Battery status indication
30 Automatic switch-off indication
31 DATE indication
32 Time/ date display
33 Indication of the scale's minimum value
34 MAX indication
Connections
35
36
37
38
No. Designation
35 Connection for the power adapter (DC 9 V)
36 MiniUSB port
37 3.5mm jack*
38 Setscrew for calibration
* e.g. to connect a frequency analyser or recorder
