Trotec TVE 16 User Manual

EN 5
pedestal fan TVE 16 / TVE 18 S
Assembly and start-up
Scope of delivery
• 1xDeviceTVE16 / TVE18S
• 1x manual
Unpacking the device
1. Open the cardboard box and take the device out.
2. Completely remove the packaging.
3. Fully unwind the power cable. Make sure that the power
cable is not damaged and that you do not damage it during
unwinding.

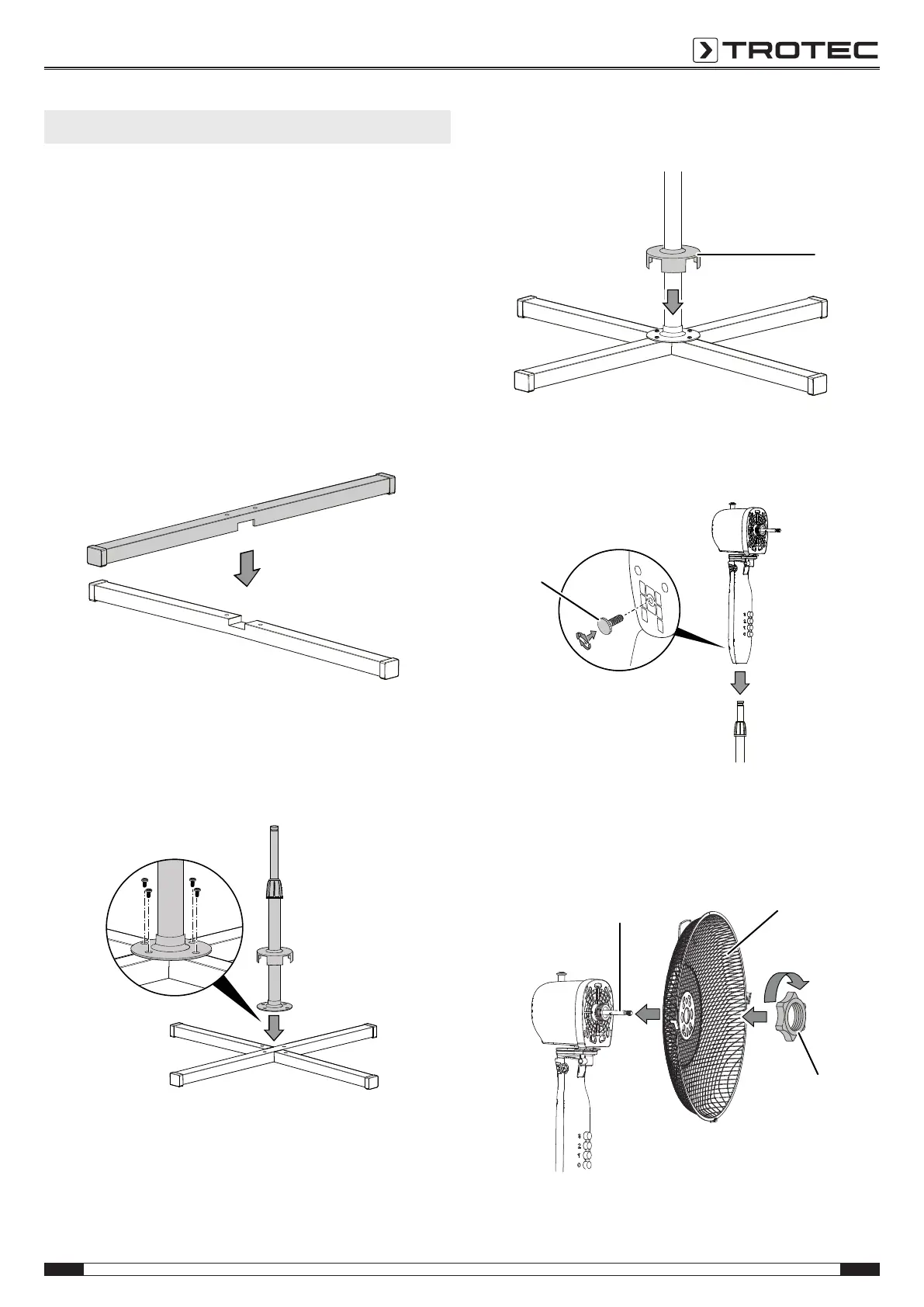

Assembly
Mounting the foot
1. Assemble the two base elements of the foot(3).
2. Position the stand centrally on top of the two connected
base elements.
3. Use the supplied screws to connect the stand(4) to the
base elements. Screw the screws into the prepared bore
holes.
4. Push the stand's protective cap(7) onto the screwed
connection.
7
Connecting the operating element and pillar
1. Connect the control panel(2) and the pillar(4) and fasten
the connection screw(8) at the rear of the control panel.
8
Mounting the rotor
1. Fit the rear part of the protective grid(10) on the motor
spindle(9). Fasten both elements with the retaining
ring(11).
9
10
11

Trotec TVE 16 Specifications

General

AC input voltage	220 - 240 V
Power source type	AC
AC input frequency	50 Hz
Power consumption (typical)	50 W
Type	Household blade fan
Placement	Floor
Cord length	1.5 m
Noise level	52.5 dB
Fan diameter	400 mm
Product color	White
Auto oscillating	Yes
Number of speeds	3
Oscillation range	90 °
Height adjustment range	1100 - 1290 mm

Weight and Dimensions

Width	520 mm
Height	1290 mm
Weight	2414 g
