pedestal fan TVE 16 / TVE 18 S
Operation

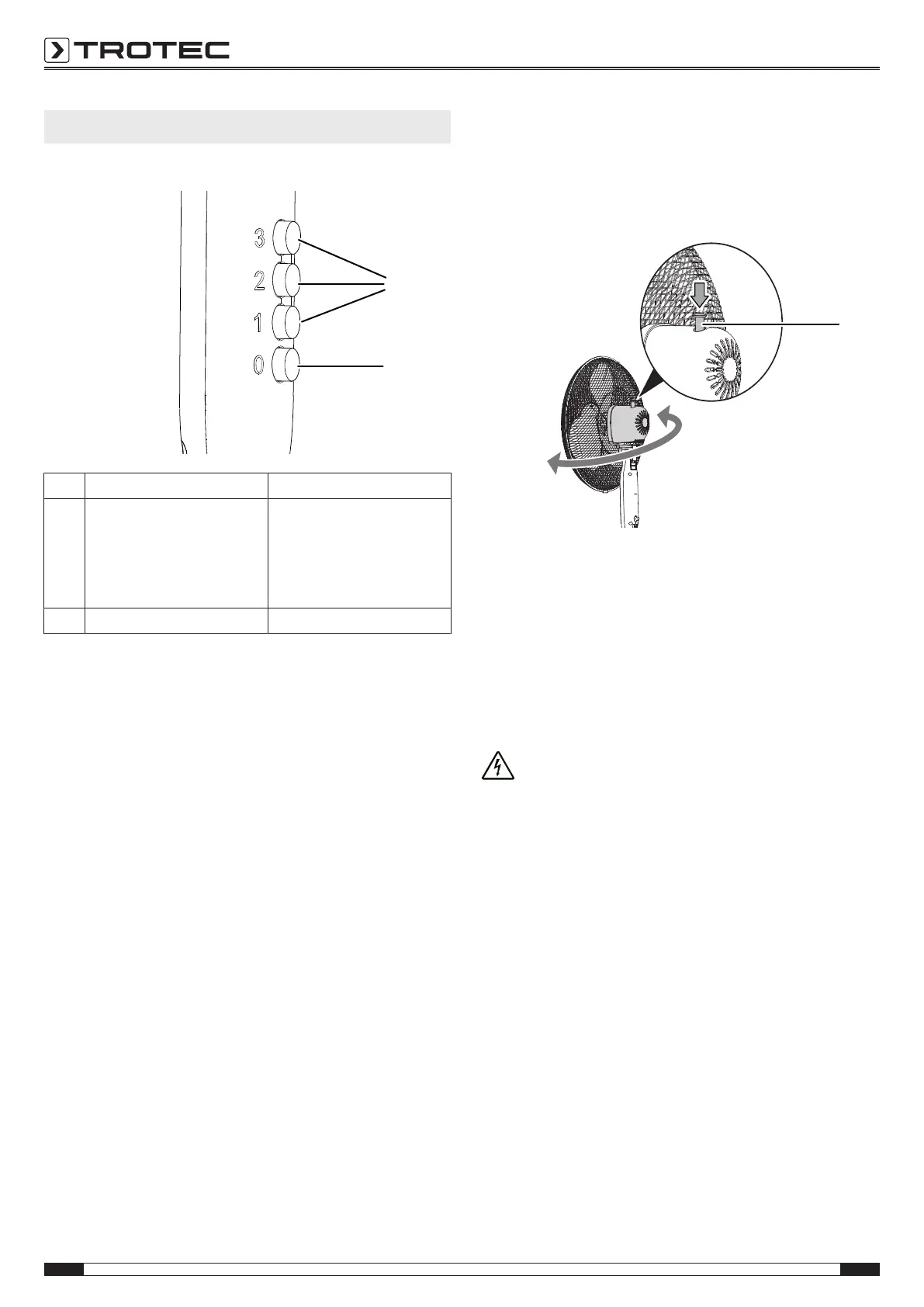

Operating elements
18
17
No. Designation Meaning
17 Fan stage buttons
1
2
3
Setting the fan speed:
Stage 1 = low
Stage 2 = medium
Stage 3 = high
18 0 button Switching the device off
Switching the device on
Once you have completely installed the device as described in
the chapter Assembly and start-up, you can switch it on.
1. Press one of the fan stage buttons(17).
ð The device starts in the selected fan stage.
Changing the fan stage
You can also switch between the three fan stages during
operation.
1. Press one of the fan stage buttons(17).
ð The device switches over to the selected fan stage.
Using the oscillation function
By means of the oscillation function you can achieve consistent
ventilation.
ü The device is switched on and operating.
1. Press the oscillation pin(6) so that it locks in place.
90°
6
90°
ð The oscillation function is activated.
ð The fan head rotates to and fro by up to 90°.
2. Pull the oscillation pin(6) up to switch the oscillation
function back off.
ð The oscillation function is deactivated.
ð The device stops oscillation at the desired position and
continues to run in the selected fan stage.
Shutdown
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Clean the device according to the Maintenance chapter.
• Store the device according to the Transport and storage
chapter.

Trotec TVE 16 Specifications

General

AC input voltage	220 - 240 V
Power source type	AC
AC input frequency	50 Hz
Power consumption (typical)	50 W
Type	Household blade fan
Placement	Floor
Cord length	1.5 m
Noise level	52.5 dB
Fan diameter	400 mm
Product color	White
Auto oscillating	Yes
Number of speeds	3
Oscillation range	90 °
Height adjustment range	1100 - 1290 mm

Weight and Dimensions

Width	520 mm
Height	1290 mm
Weight	2414 g
