pedestal fan TVE 16 / TVE 18 S

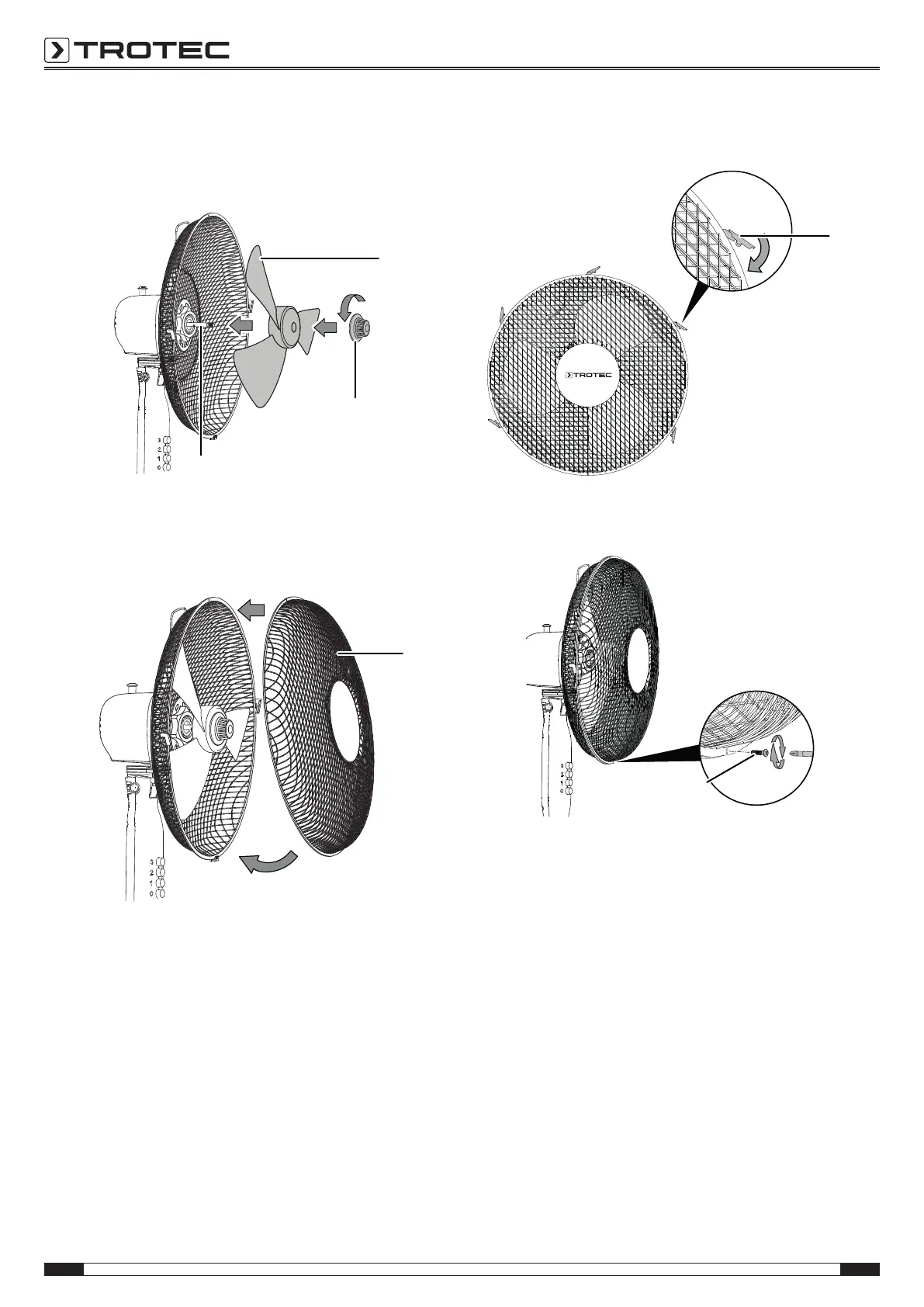

Fastening the impeller on the motor spindle
1. Fit the impeller(12) on the motor spindle(9).
2. Fasten the impeller(12) using the impeller retaining
cap(13).
12
13
9
Mounting and closing the protective grid
1. Fit the front part of the protective grid(14) on the rear part
of the protective grid(10). Make sure that the two parts are
fixed by the fastening clips(15).
14
2. Make sure that the two parts are fixed by all fastening
clips(15).
15
3. Use the fastening screw(16) at the bottom of the
protective grid to fasten the two grid parts.
16

Trotec TVE 16 Specifications

General

AC input voltage	220 - 240 V
Power source type	AC
AC input frequency	50 Hz
Power consumption (typical)	50 W
Type	Household blade fan
Placement	Floor
Cord length	1.5 m
Noise level	52.5 dB
Fan diameter	400 mm
Product color	White
Auto oscillating	Yes
Number of speeds	3
Oscillation range	90 °
Height adjustment range	1100 - 1290 mm

Weight and Dimensions

Width	520 mm
Height	1290 mm
Weight	2414 g
