Close the damper blade

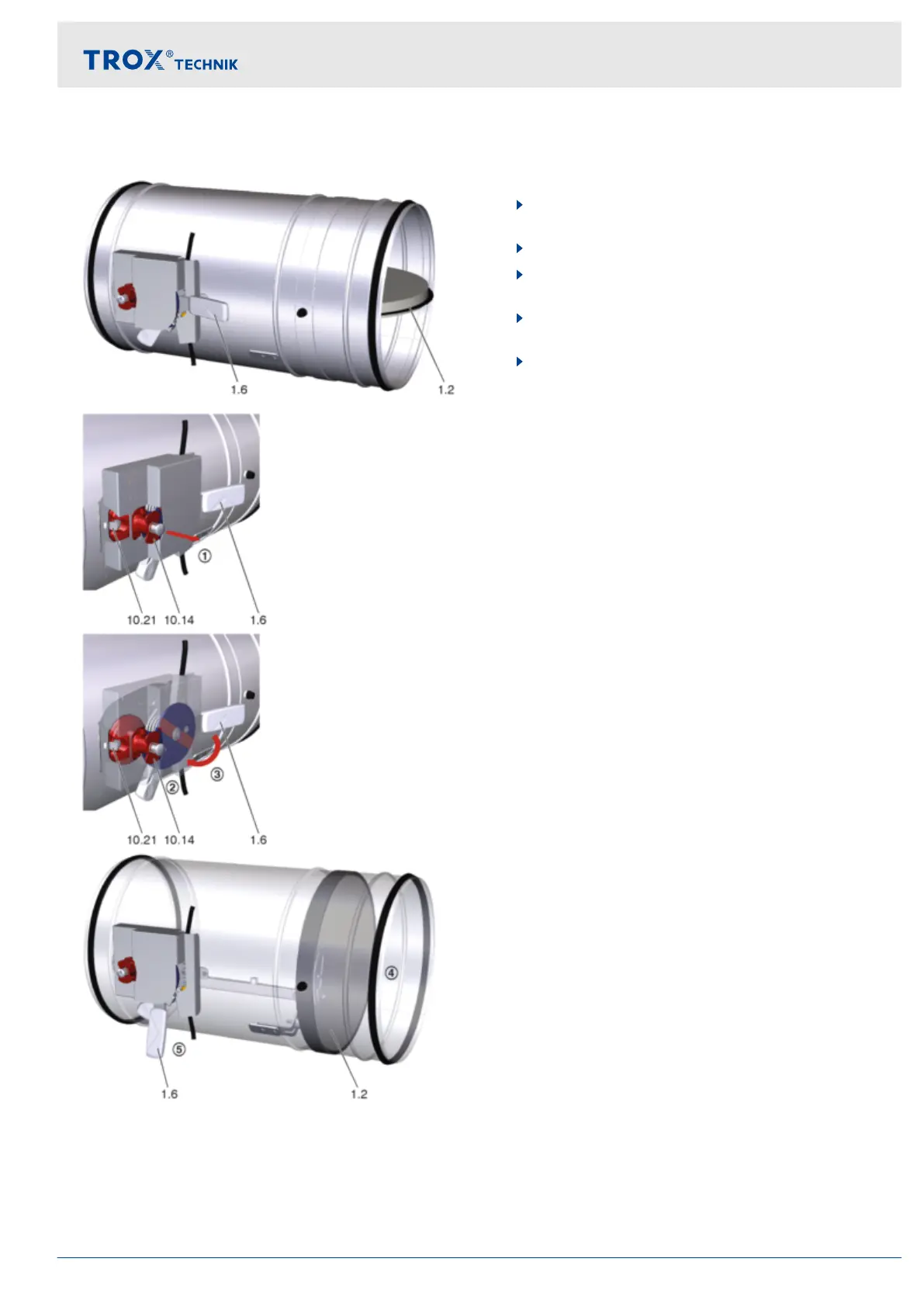

Fig. 8: Close the damper blade
Requirement
The damper blade is OPEN.
1. Pull the hand knob of the thermal release device
(10.14) forward in the direction of the arrow to
2. Release the cam disc (1.6) of the handle.
3. The handle (1.6) swivels automatically in the
direction of the arrow.
4. The damper blade (1.2) engages in the CLOSED
position and
5. The handle (1.6) indicates that the damper blade
(1.2) is closed.
Functional test
FKR-EU with fusible link and limit switch, explo...
Explosion-proof fire damper FKR-EU 13
