2 Technical data
2.1 FKR-EU with fusible link, explosion proof version
Dimensions and weight

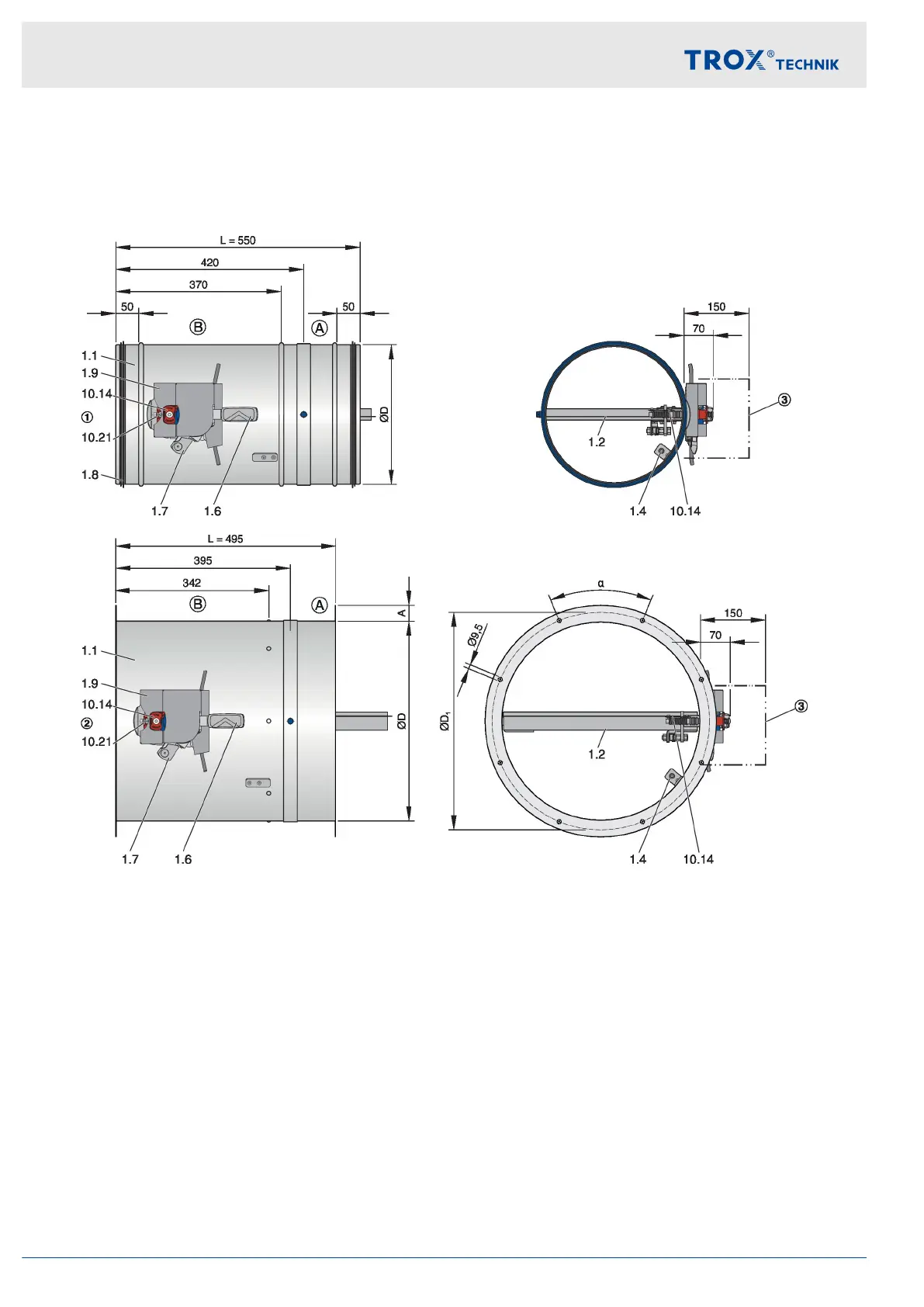

Fig. 1: FKR-EU with fusible link, explosion proof version
1.1 Casing
1.2 Damper blade with sealing ring
1.4 Stop CLOSED position
1.6 Handle
1.7 Interlock
1.8 Lip seal
1.9 Limit switch cover (only in case of limit switch)
10.14 Thermal release mechanism with fusible link
10.21 Z-plate
1 Spigot construction
2 Flange construction
3 Keep clear to provide access for operation
A Installation side
B Operating side
Technical data
FKR-EU with fusible link, explosion proof version
Explosion-proof fire damper FKR-EU6
