4 Functional test
4.1 General Information
During operation, the fire damper is open. A functional
test involves closing and opening the damper blade.
The procedure differs depending on the type release
mechanism.
WARNING!
During the release, there is a risk of injury when
reaching into the release device or into a moving
damper blade. Do not touch the release device or
the fire damper blade while actuating the release
mechanism.
4.2 FKR-EU with fusible link and limit
switch, explosion-proof version
NOTICE!
The Z-plate ( Fig. 1 /10.21) is an important compo-
nent of the ATEX version of the FKR-EU with fusible
link, which ensures a conductive connection between
the thermal release device and the fire damper
casing.
When installing the thermal release device on the fire
damper casing, be sure to insert one of the two fixing
screws into the circular hole of the Z-plate.
When removing the thermal release device (Ä FKR-
EU operating and assembly instructions), check that
the Z-plate is intact. If damaged, replace the entire
thermal release device.
The Z-plate must not be changed or removed.

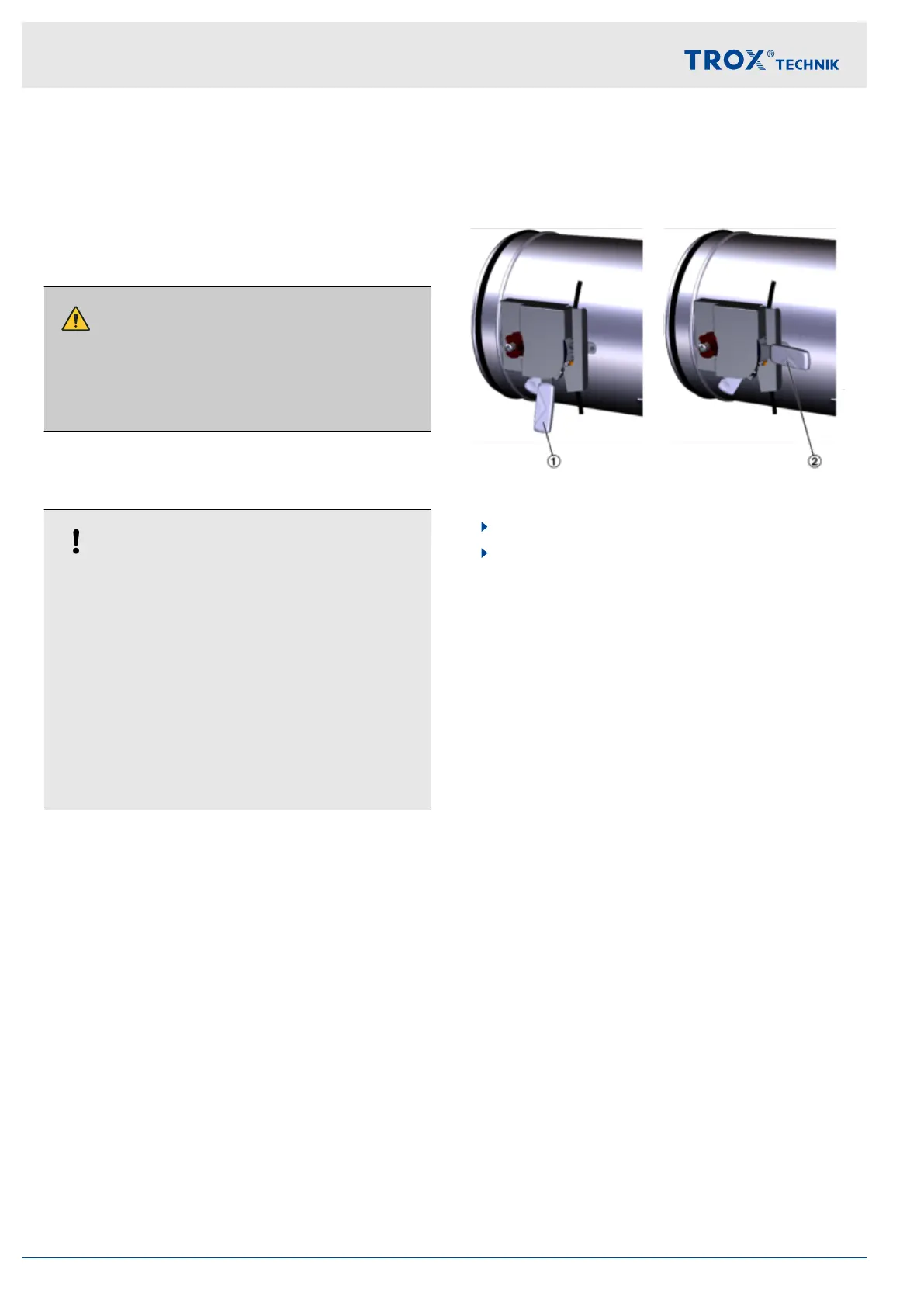

Damper blade position indicator
The position of the damper blade (1.2) is indicated by
the vertical or horizontal position of the handle (1.6).
Fig. 7: Damper blade position indicator
1. Damper blade (1.2) closed.
2. Damper blade (1.2) open.
Functional test
FKR-EU with fusible link and limit switch, explo...
Explosion-proof fire damper FKR-EU12
