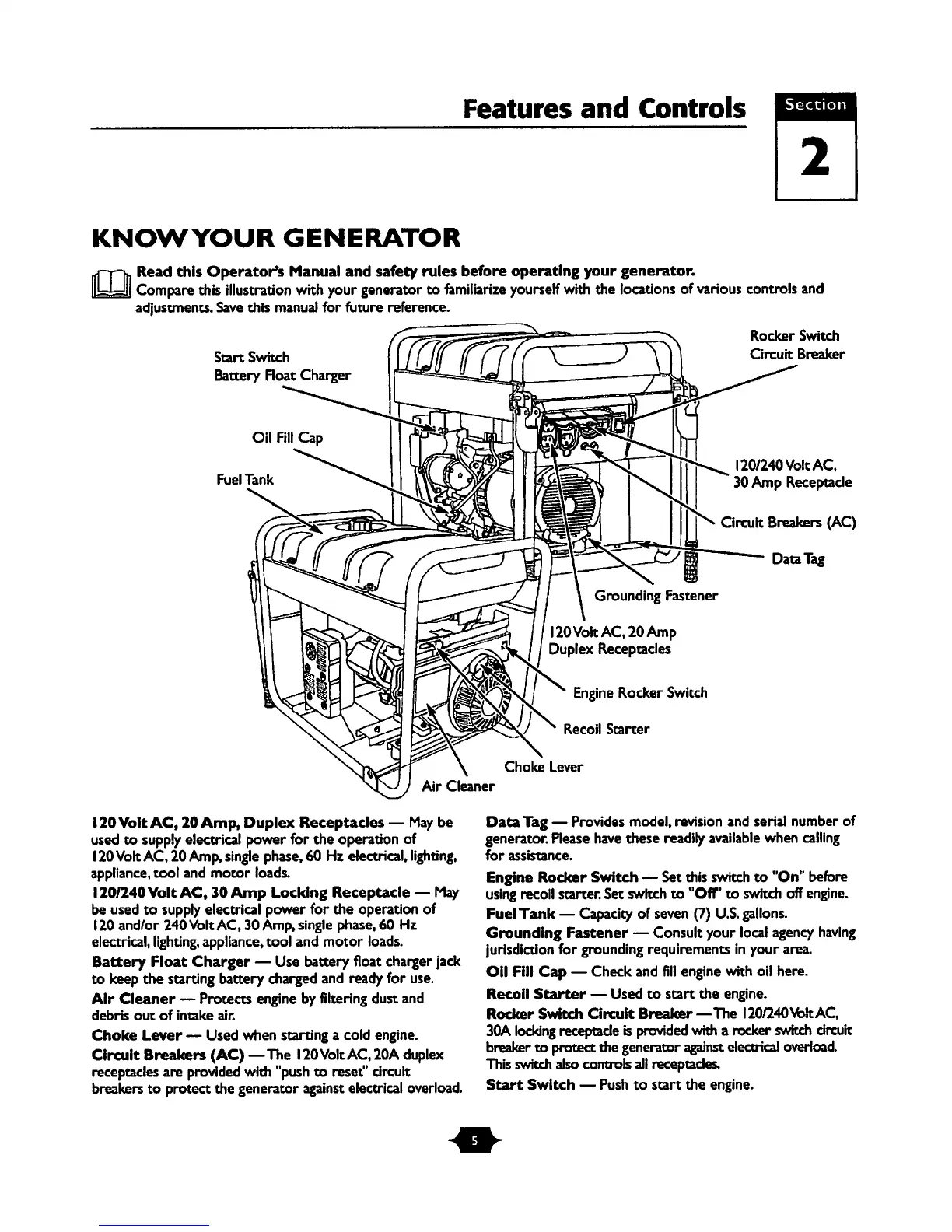

Features and Controls
Section
2
KNOWYOUR GENERATOR
p-^ Read this Operator's Manual and safety rules before operating your generator.
1 Compare this illustration with your generator to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
Start Switch
Battery Float Charger
Oil Fill Cap
Fuel Tank
l20VoltAC,20Amp
Duplex Receptacles
Rocker Switch
Circuit Breaker
120/240 Volt AC,
30 Amp Receptacle
Circuit Breakers (AC)
Data Tag
Engine Rocker Switch
Recoil Starter
Choke Lever
Air Cleaner
120 Volt AC, 20 Amp, Duplex Receptacles — May be
used to supply electrical power for the operation of
120 Volt AC, 20 Amp, single phase, 60 Hz electrical, lighting,
appliance, tool and motor loads.
120/240 Volt AC, 30 Amp Locking Receptacle — May
be used to supply electrical power for the operation of
120 and/or 240 Volt AC, 30 Amp, single phase, 60 Hz
electrical, lighting, appliance, tool and motor loads.
Battery Float Charger — Use battery float charger jack
to keep the starting battery charged and ready for use.
Air Cleaner — Protects engine by filtering dust and
debris out of intake air.
Choke Lever — Used when starting a cold engine.
Circuit Breakers (AC) —The 120 Volt AC, 20A duplex
receptacles are provided with "push to reset" circuit
breakers to protect the generator against electrical overload.
Data Tag — Provides model, revision and serial number of
generator. Please have these readily available when calling
for assistance.
Engine Rocker Switch — Set this switch to "On" before
using recoil starter. Set switch to "Off' to switch off engine.
Fuel Tank — Capacity of seven (7) U.S. gallons.
Grounding Fastener — Consult your local agency having
jurisdiction for grounding requirements in your area.
Oil Fill Cap — Check and fill engine with oil here.
Recoil Starter — Used to start the engine.
Rocker Switch Circuit Breaker—The 120/240 Volt AC,
30A locking receptacle is provided with a rocker switch circuit
breaker to protect die generator against electrical overload.
This switch also controls all receptacles.
Start Switch — Push to start the engine.
