Troy-Bilt 030247 - Assembly; Unpack the Generator; Carton Contents; Install Wheel Kit

Section
3
Assembly
ASSEMBLY
Your generator requires some assembly and is ready for
use after rt has been properly serviced with the
recommended oil and fuel.
If you have any problems with die assembly of your
generator, please call die generator helpline at
I -888-611 -6708. If calling for assistance, please have the
model, revision, and serial number from die data tag available.
See "Know Your Generator" for data tag location.
Unpack the Generator
1. Set the carton on a rigid flat surface.
2. Open carton completely by cutting each corner from
top to bottom.
3. Remove everything from carton except generator.
4. Leave generator on carton to install wheel kit.
Carton Contents
Check all contents against those listed below:
• Main unit
• Engine oil
• Operator's manual
• Engine operator's manual
• Battery float charger
• Wheel kit
If any parts are missing or damaged, call the generator
helpline at 1-888-611-6708.
Install Wheel Kit
The wheel kit is designed to greatly improve the portability
of your generator.
NOTE: Wheel kit is not intended for over-the-road use.
You will need the following tools to install this wheel kit
• 1/2" or 13 mm socket wrench
• 1/2" or 13mm open end wrench
• Pliers
• Safety glasses

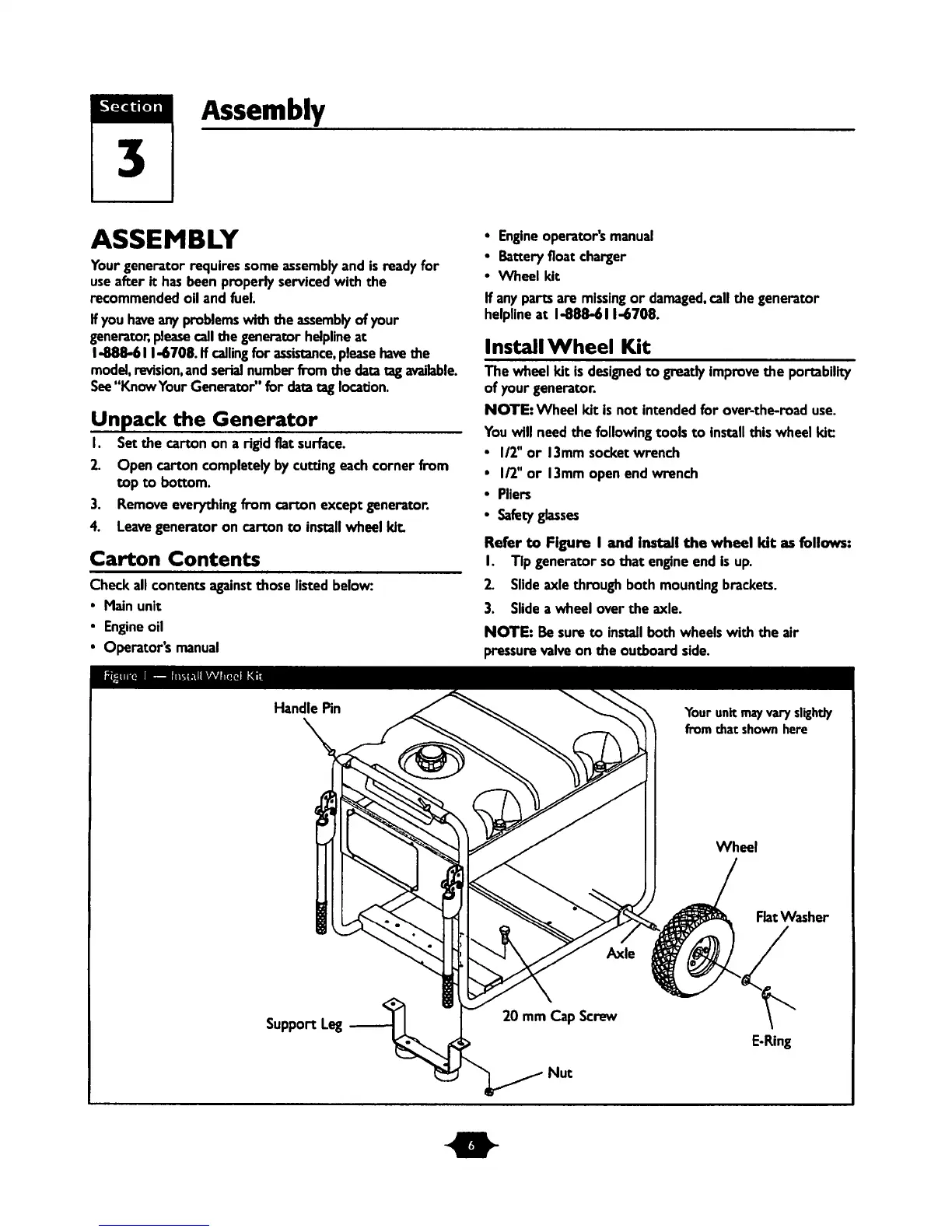

Refer to Figure I and install the wheel kit as follows:
1. Tip generator so that engine end is up.
2. Slide axle through both mounting brackets.
3. Slide a wheel over the axle.
NOTE: Be sure to install both wheels with the air
pressure valve on the outboard side.
Your unit may vary slight!/
from chat shown here
