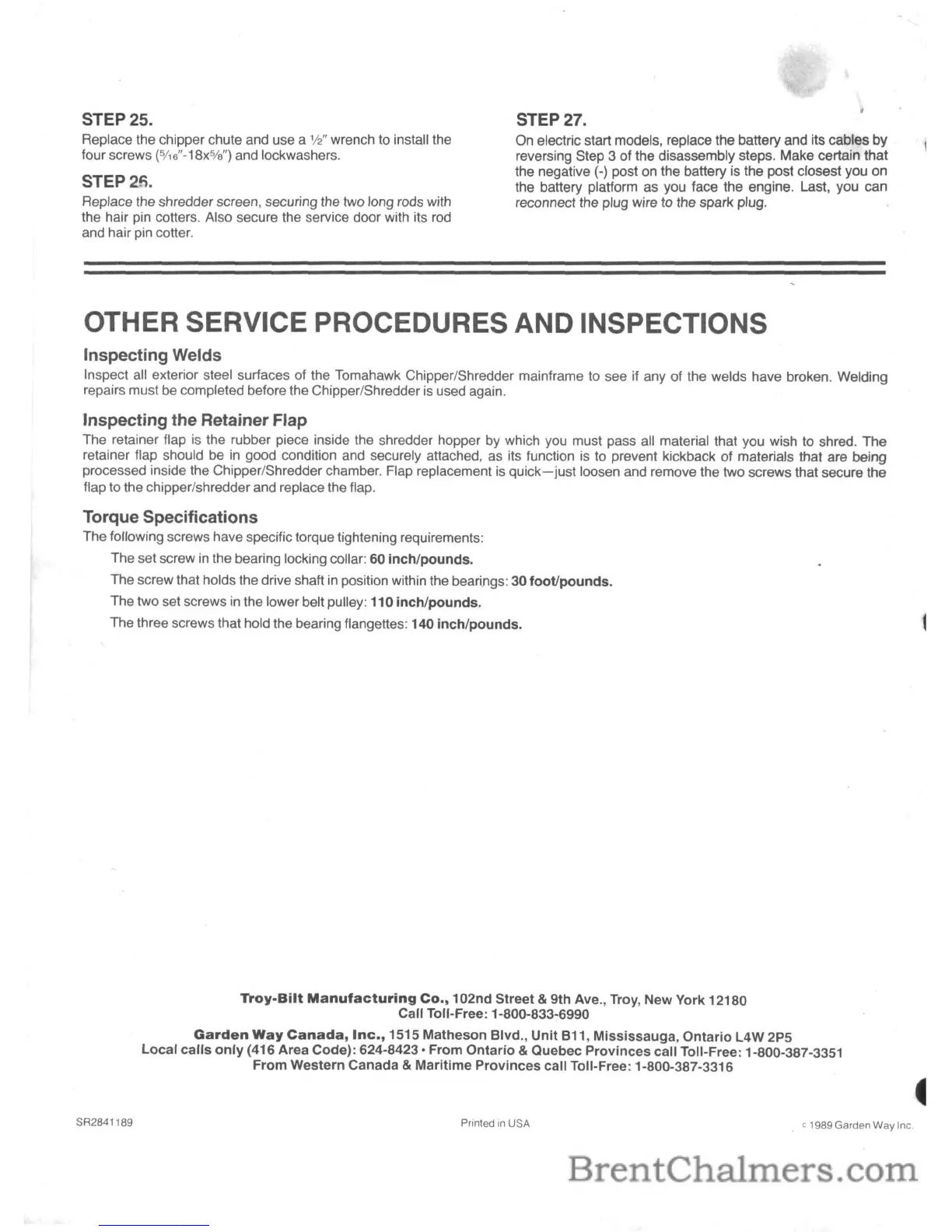

STEP 25.
Replace the chipper chute and use a
%"
wrench to install the
four screws
(5f16"-18xS/a")
and lockwashers.
STEP2R.
Replace the shredder screen, securing the two long rods with
the hair pin cotters. Also secure the service door with its
rod
and hair pin cotter.
STEP 27.
On
electric start models, replace the battery and its cables by
reversing Step 3 of the disassembly steps. Make certain that
the negative
(-)
post
on
the battery
is
the post closest you on
the battery platform as you face the engine. Last, you can
reconnect the plug wire to the spark plug.
OTHER SERVICE PROCEDURES AND INSPECTIONS
Inspecting Welds
Inspect all exterior steel surfaces of the Tomahawk Chipper/Shredder mainframe to see if any of the welds have broken. Welding
repairs must be completed before the Chipper/Shredder
is
used again.
Inspecting
the
Retainer Flap
The retainer flap is the rubber piece inside the shredder hopper by which you must pass all material that you wish to shred. The
retainer flap should
be
in
good condition and securely attached,
as
its function is to prevent kickback of materials that are being
processed inside the Chipper/Shredder chamber. Flap replacement is
quick-just
loosen and remove the two screws that secure the
flap to the chipper/shredder and replace the flap.
Torque Specifications
The following screws have specific torque tightening requirements:
The set screw
in
the bearing locking collar: 60
inch/pounds.
The screw that holds the drive shaft
in
position within the bearings: 30
foot/pounds.
The two set screws
in
the lower belt pulley: 110
inch/pounds.
The three screws that hold the bearing flangettes: 140
inch/pounds.
Troy.Bilt
Manufacturing
Co.,
102nd Street & 9th Ave., Troy, New York 12180
Call Toll-Free: 1-800-833-6990
Garden
Way
Canada,
Inc.,
1515 Matheson BlVd., Unit B11, Mississauga,
Ontario
L4W 2P5
Local
calls
only
(416 Area Code): 624-8423· From Ontario & Quebec Provinces call Toll-Free: 1-800-387-3351
From Western Canada
& Maritime
Provinces
call Toll-Free: 1-800-387-3316
SR2841189
Printed
in
USA
c 1989 Garden
Way
Inc.
