Troy-Bilt 52051 - Page 25

23
Models 52051 and 52052
1 1915963 Upper Handlebar w/decal ....................... 1
2 1915889 Bail Decal ............................................... 1
3 ---- Ref. No. Not Used
4 1915270001 Bail......................................................... 1
5 1749977001 Cable Bracket ......................................... 1
6 ---- Ref. No. Not Used
7 1908677 Nyliner Bushing...................................... 2
9 1908673 Retaining Ring, external .312 I.D............ 1
10 1910852 Control Cable.......................................... 1
11 ---- Ref. No. Not Used
12 1983658 Hex Hd Screw, 1/4-20 x 1-1/8................ 1
13 1185814 Top Lock Nut, 1/4-20 ............................. 1
14 1763682 Cable Tie................................................. 2
17 1910809001 Lower Handlebar (B) .............................. 1
1910809001 Lower Handlebar (A) .............................. 1
18 ---- Ref. No. Not Used
19 1100799 Hex Hd Screw, 5/16-18 x 1-1/2, Gr. 5 .... 2
20 1732499 Lock Nut, 5/16-18 .................................. 2
21 1904406 Decal - Keyswitch (B)............................. 1
22 1900455 Ignition Switch (B) ................................. 1
23 1187950 Lockwasher, 5/8 (B)............................... 1
24 92018 Hex Nut, 5/8-32 (B)................................ 1
25 96520 Ignition Key (A)...................................... 1
Ref. # Part # Description Qty.
Ref. # Part # Description Qty.
HANDLEBAR ASSEMBLY
Ref. # Part # Description Qty.

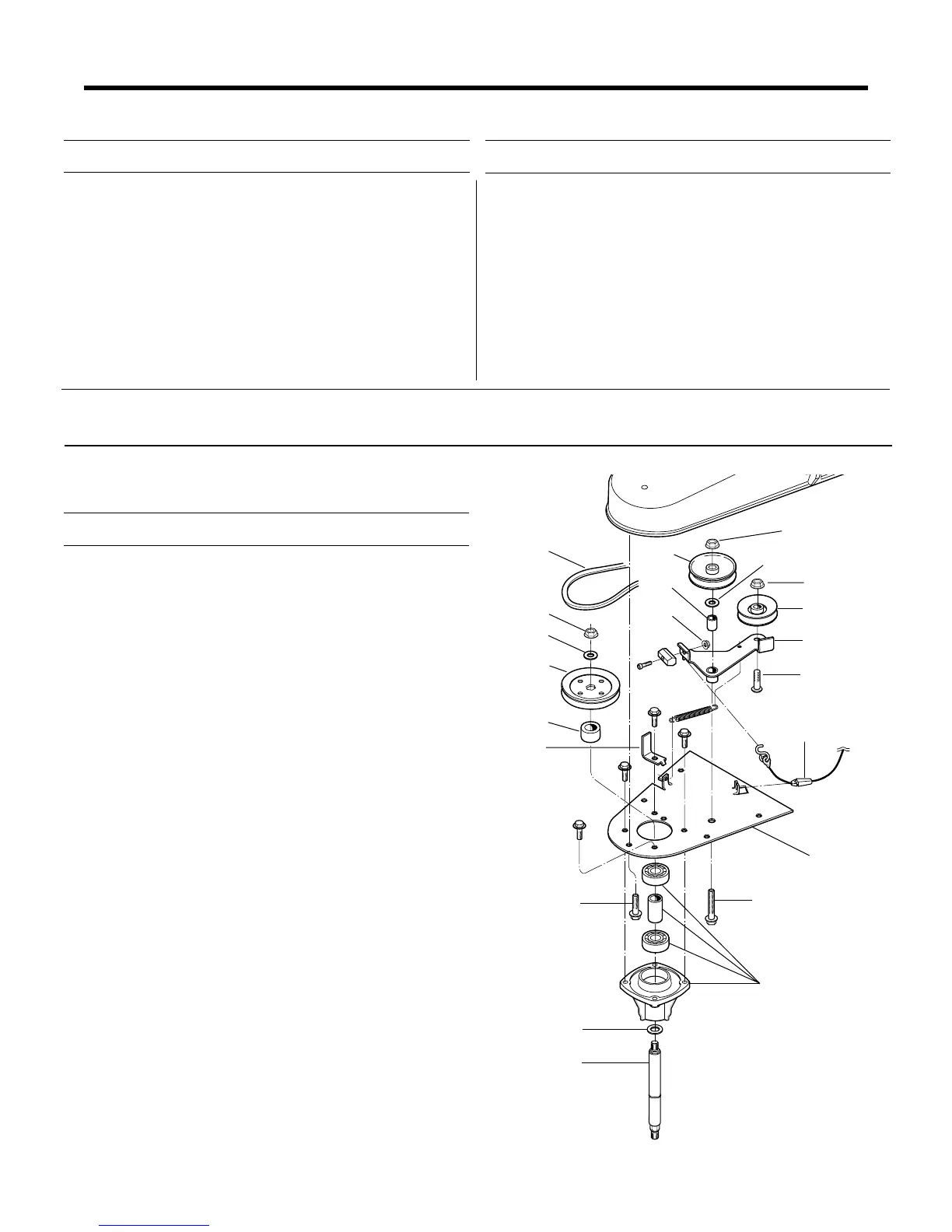

SPINDLE PLATE ASSEMBLY
1
2
3
4
9
10
11
18
20
21
22
23
24
22
22
22
19
14
14
15
16
5
6
13
7
25
8
17
12
1 1910850001 Spindle Mounting Plate .......................... 1
2 1910839 Spindle Assembly................................... 1
3 1915477 Spindle Shaft Assembly (Incl. Ref. 25)... 1
4 1910860001 Belt Guide............................................... 1
5 1910856 Spindle Spacer ....................................... 1
6 1910842 Spindle Pulley......................................... 1
7 1904308 Hex Flange Nut, 1/2-13........................... 1
8 1915555 V-Belt ..................................................... 1
9 1904479 Idler Arm/Brake Shoe Assembly............. 1
10 1910859 Socket Hd Capscrew, 10-24 x 3/4 .......... 1
11 1910847 Brake Shoe............................................. 1
12 1983039 Hex Lock Nut, 10-24 .............................. 1
13 1727978 V-Groove Idler Pulley ............................. 1
14 1186393 Hex Flange Nut, 3/8-16........................... 2
15 1910855 Flat Idler Pulley....................................... 1
16 1915261 Washer, .88 x .382 x .275 ...................... 1
17 1910854 Idler Arm Spacer .................................... 1
18 1910857 Button Head Screw, 3/8-16 x 1-1/2....... 1
19 1910852 Control Cable (also Ref. 13, Pg. 4)........ 1
20 1910849 Idler Tension Spring............................... 1
21 1910858 Hex Flange Screw, 3/8 x 16 x 2-1/4........ 1
22 1909304 Hex Flange Screw, 5/16-18 x 3/4............ 4
23 90063 Hex Flange Screw, 5/16-18 x 1............... 5
24 9953 Hardened Shim, 3/4 ID x 1.022 OD
x .060 thick.......................................... 1
25 9928 Belleville Washer, 5/8............................. 1
(A) Model 52051 (B) Model 52052
