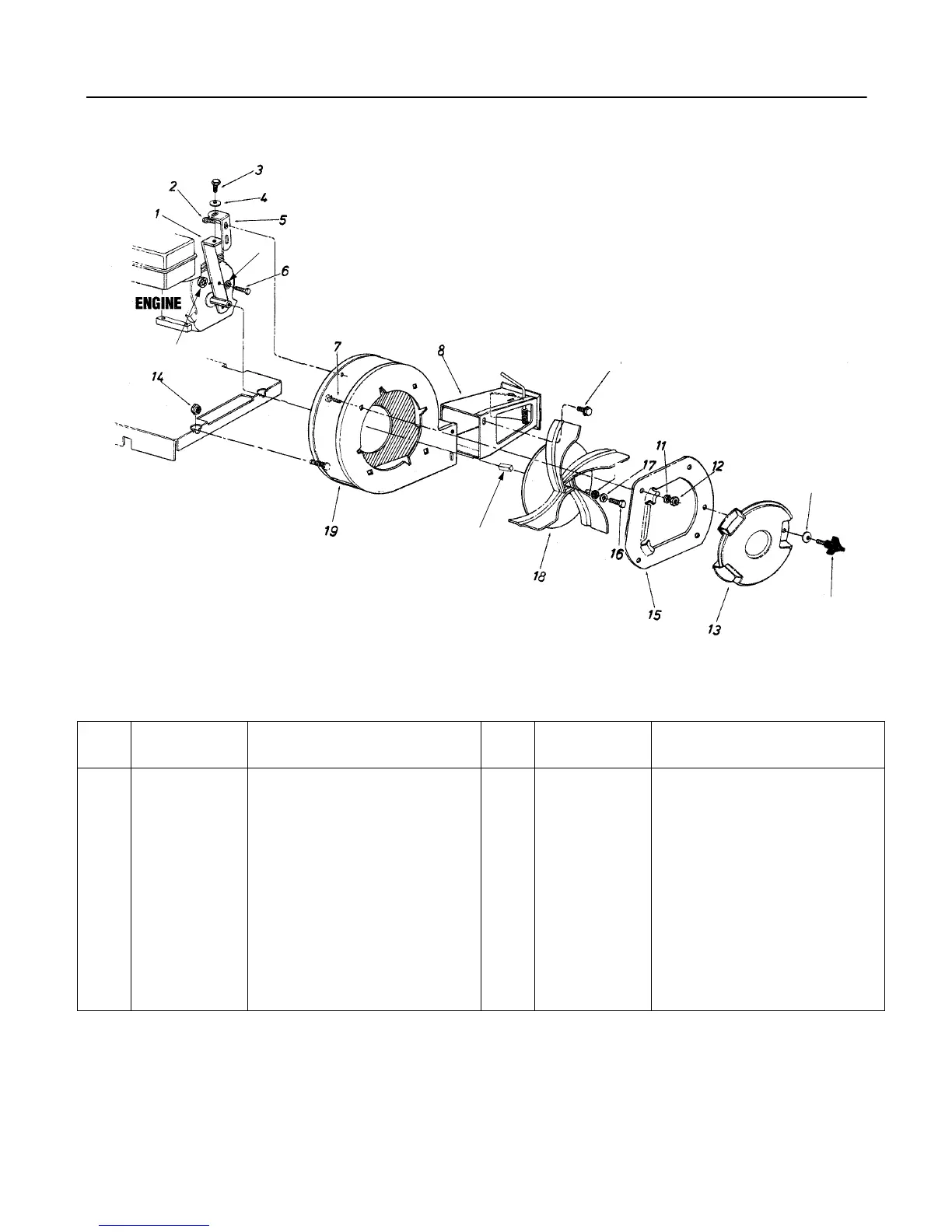

SECTION 7: PARTS LIST FOR MODEL 657
Ref.
No.
Part No. Part Description
1. 14540B Engine Housing Brace Assembly
2. 710-0607 Hex Self Tapping Screw 5/16 x .5
3. 710-1260A Hex Bolt 5/16-18 x .75
4. 736-0170 Special L-Washer 5/16” x.88 OD
5. 14541 Right Angle Bracket
6. 710-0672 Hex Screw, 5/16-24 x 1.25
7. 710-0260A Carriage Bolt 5/16-18 x .62
8. 14479 Directional Discharge Assembly
9. 750-3198 Engine Spacer, 1.0 x.34Lg x.35
10. 711-04221 Impeller Hub
11. 736-0119 Lock Washer 5/16
12. 712-3010 Hex Nut 5/16-18
13. 731-0608 Blower Guard
14. 711-0758 Hex Shoulder Nut .50”
15. 14563A Nozzle Plate Assembly
16. 710-1273 Hex Screw, 3/8-24 x 2.75
17. 736-0217 Lock Washer 3/8
18. 681-04015 Impeller Assembly
19. 14496B Blower Housing Assembly
20. 714-0105 Square Key, 3/16 x 1.00
21. 710-0259 Hex Sems Bolt 5/16-18 x .62
22. 736-0242 Bell Washer .34 ID x .87 OD
23. 710-3008 Screw 5/16-18 x.75
Ref.
No.
Part No. Part Description
22
23
10
21
11
9
20
