12 Section 3— ASSembly & Set-Up
Attaching the Hood Scoop (If so equipped)
On some tractors, a hood scoop may be included. If the hood
scoop was not installed on the hood of your tractor at the
factory, refer to the steps below to install the hood scoop now:
1. Remove the four screws pre-installed in the hood scoop
and retain for Step 2.
2. Install the hood scoop onto the hood of the tractor and
secure from the underside using the four screws previously
removed. See Figure 3-8.

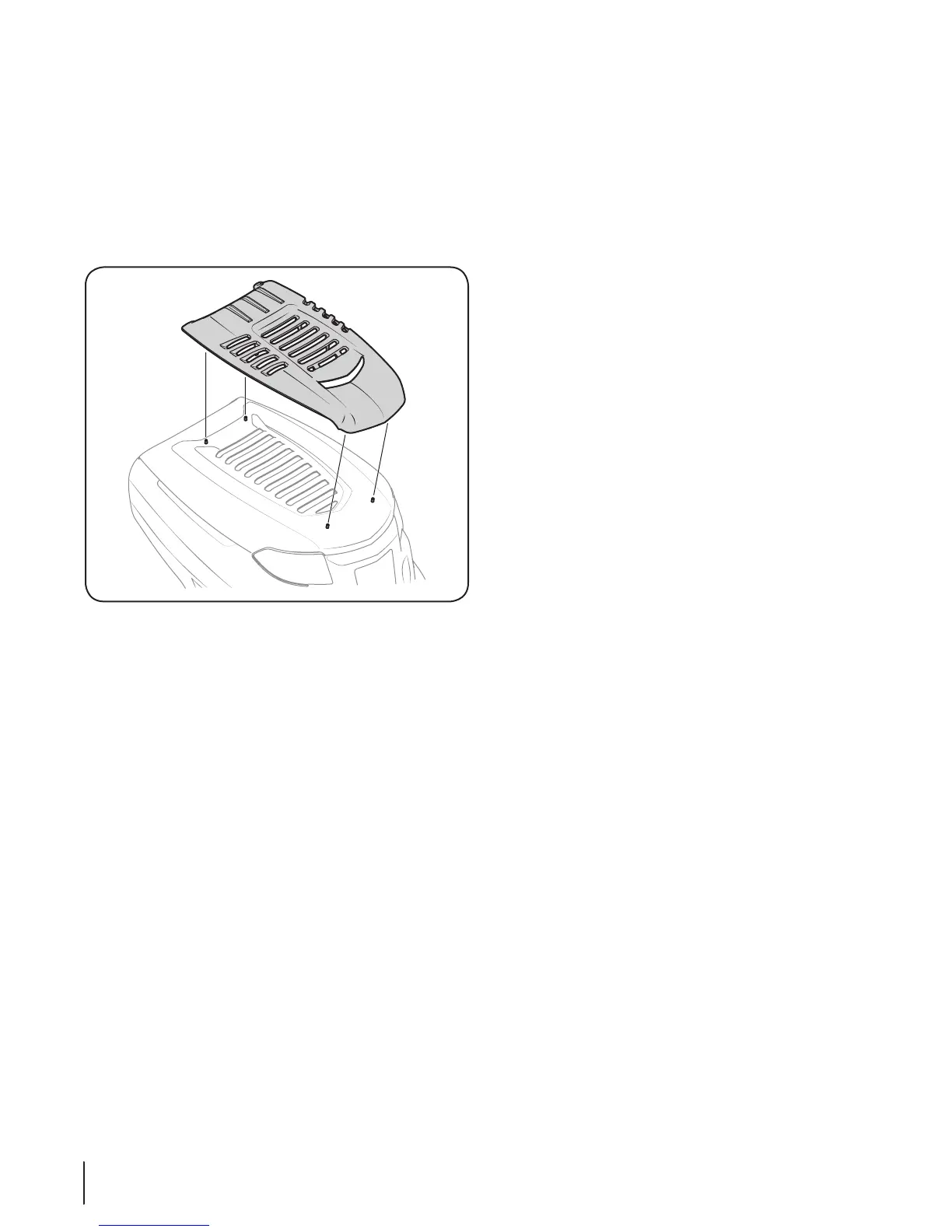

Figure 3-8
