39Section 7 — Service
9. Push the belt forward then down until it is looped over the
lower pulley. See Figure 7-2. Do not yet seat it in either of
the lower pulley’s grooves.
NOTE: A blunt object, like a ruler, can help you push the
belt downward if needed.
10. Move the top half of the belt up and over the rubber
reverse disc, but do not seat it in either of the grooves in
the top pulley.
11. Place the Wheels/Tines/PTO Drive Lever in NEUTRAL.
12. Move the top half of the belt into the HIGH Range groove,
the groove closest to the engine, on the top pulley. See
Figure 7-5.
Drive
Belt

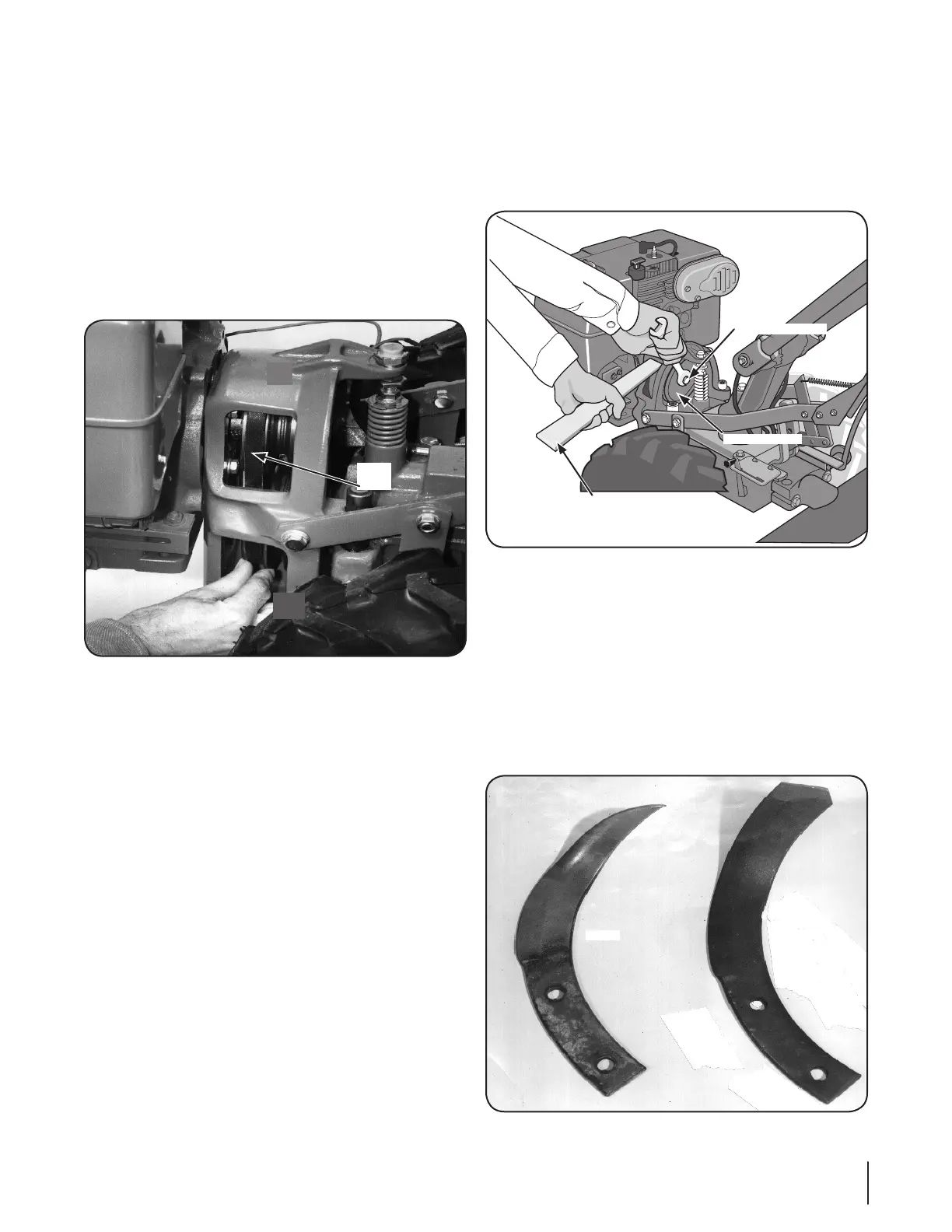

Figure 7-5
13. Move the bottom half of the belt into the HIGH Range
groove of the lower pulley. If extra slack is needed, hold
up Wheels/Tines/PTO Drive Lever while moving the belt.
Verify the belt is seated properly on the pulleys.
14. To move the belt to the Low Range position. See Changing
Belt Speed in the Operation Section.
15. After installing the belt, check and adjust for correct belt
tension as explained previously.
Reverse Disc
Follow these steps to replace the reverse disc. If your tiller has a
Bumper Attachment mounted, it must be removed first.
1. Move Wheels/Tines/PTO Drive Lever in NEUTRAL position.
2. Wedge a ⁄”-thick board between the top of the engine
pulley and the cast iron housing next to it. This immobilizes
the pulley. Avoid contacting the reverse disc.
3. Use a ⁄” wrench to loosen the mounting bolt shown in
Figure 7-6. Remember to immobilize the pulley with the
wood wedge while loosening the bolt. If necessary, pry
the disc from the pulley with the tip of a screwdriver. Back
the bolt out as far as possible. Then angle the disc a little
to remove it. Bring the bolt and lockwasher along with the
disc. Installing a new Reverse Disc.
O
IL
Mounting Bolt
Reverse Disc
Wood Wedge
Figure 7-6
4. Do steps 1-through-3,in the opposite order to install the
new reverse disc.
5. Tighten the mounting bolt securely, and check for correct
operation — see the Maintenance & Adjustments section.
Tines
Inspect the tines for wear or damage after every 30 operating
hours. The rate of wear depends upon the hours of use and soil
conditions. With use, the tines get shorter, narrower and more
pointed. See Figure 7-7.
Worn New
Figure 7-7
