Section 3— ASSembly & Set-Up8

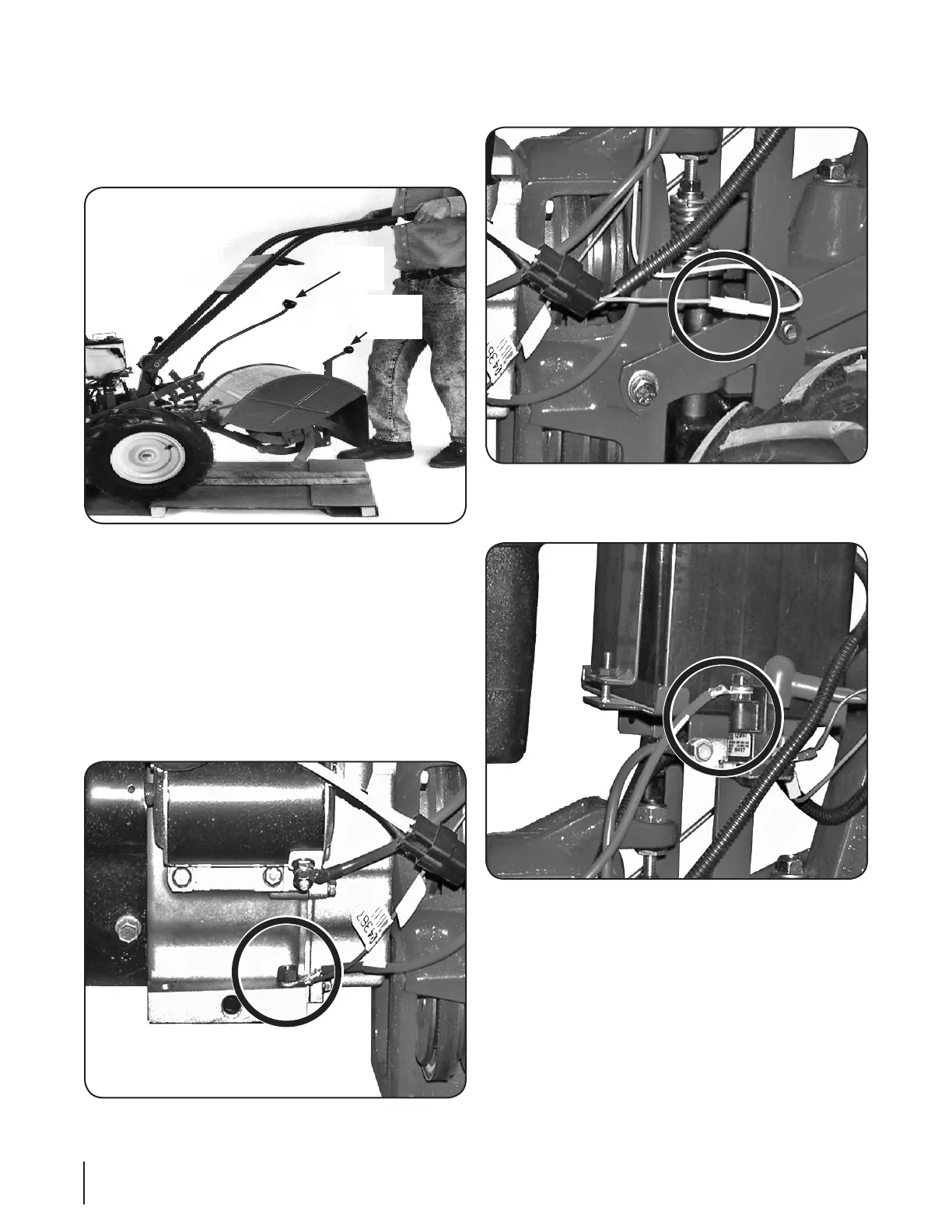

Moving the Tiller off the Shipping Platform
1. Set the Depth Regulator Lever to the “TRAVEL” position.
Do this by lifting the tiller by the handlebars, then pulling
straight back on the lever and sliding down to the highest
notched setting. See Figure 3-2.
Depth
Regulator
Lever
Wheel
Speed
Lever
Figure 3-2
2. Set the Wheel Speed Lever to the Freewheel position. To
do this, move the lever approximately halfway between the
Fast and Slow settings while you rock the tiller forward and
backward until the wheels move freely. See Figure 3-2.
3. Lift the Handlebars high enough to clear the tiller tines
and pull back firmly to dislodge the tiller from the platform
wheel wells.
Wire Harness
1. Ground the green (and red for electric start tillers) wire(s) to
the engine block. See Figure 3-3.
Figure 3-3
2. Connect the safety wire assembly (green and yellow wires).
See Figure 3-4.
Figure 3-4
3. Connect the tiller’s main harness connection to the neutral
safety switch receptacle. See Figure 3-5.
Figure 3-5
