Troy-Bilt Bronco CRT Service Manual

Troy-Bilt Small Frame Tillers
8

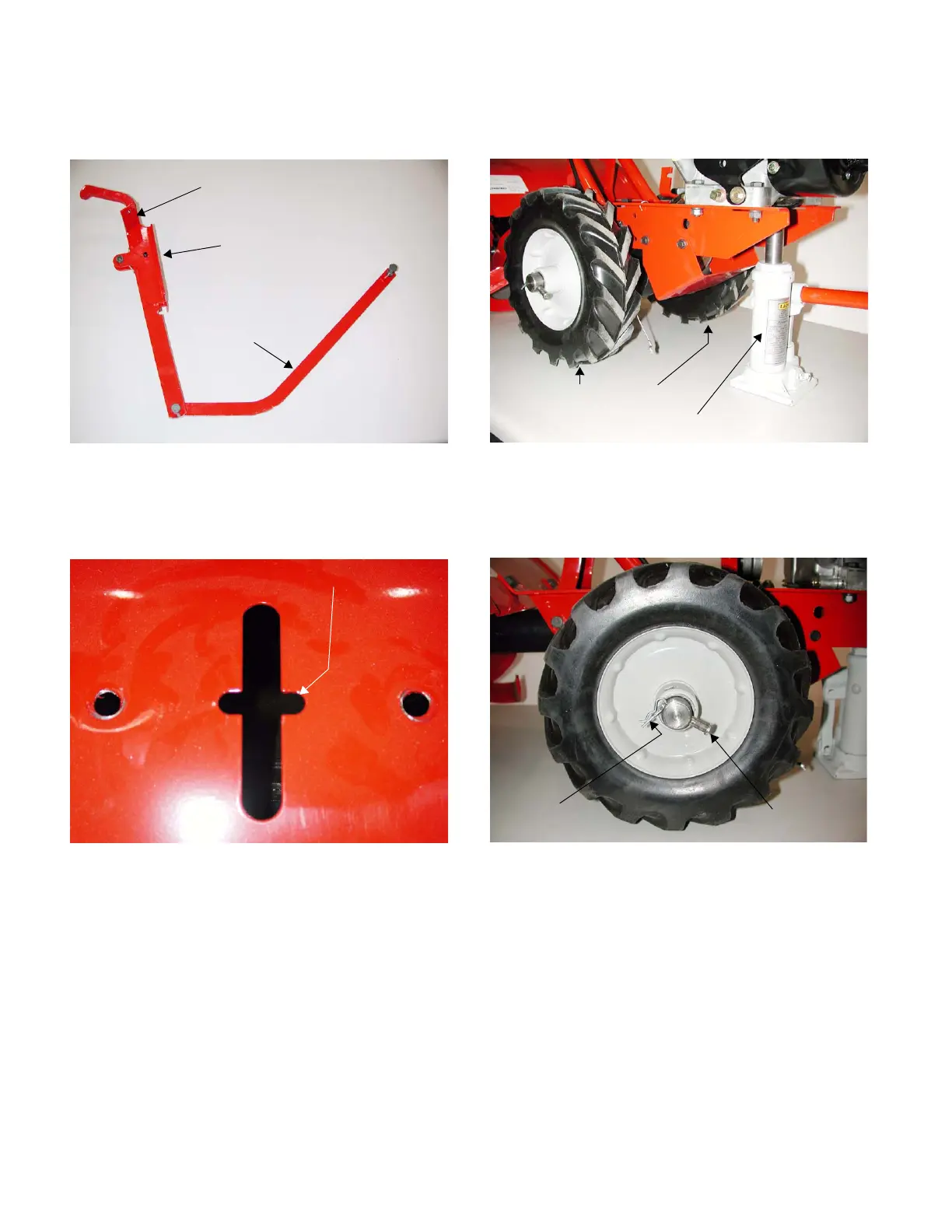

6.12. Remove the depth regulator assembly and drag
bar assembly. See Figure 6.12.
NOTE: There is a cut a way in the tine hood to
allow the depth bar’s spiral pin to pass through.
See Image Below.
6.13. Lower the unit back onto the tines.
NOTE: Make certain the unit is resting on the
tines and not on the trailing shield.
6.14. Raise the front of the tiller up until the wheel
assemblies are off the ground. See Figure 6.14.
6.15. Remove both hair pins and clevis pins securing
the wheel assemblies onto the wheel shaft using
needle nose pliers. See Figure 6.15.
6.16. Remove both wheel assemblies.
Figure 6.12
Depth Regulator Assembly
Drag Bar
Hood Brackets
Cut A Way
Cut A Way for Spiral Pin
Figure 6.14
Raise the Unit Up
Wheels off Ground
Figure 6.15
Hair Pin
Clevis Pin

Troy-Bilt Bronco CRT Specifications

General

Number of Forward Speeds	1
Number of Reverse Speeds	1
Tilling Width	18 in.
Tilling Depth	8 inches
Warranty	2 years limited
Starting System	Recoil start
