Troy-Bilt Bronco CRT Service Manual

Troy-Bilt Small Frame Tillers
9
6.17. Remove the forward return spring from the right
engine bracket using needle nose pliers. See
Figure 6.17.
6.18. Pivot the forward idler lever inward.
6.19. Secure the upper handlebar in position from
above. See Figure 6.19.
NOTE: The unit needs to be stabilized before
removing the transmission.

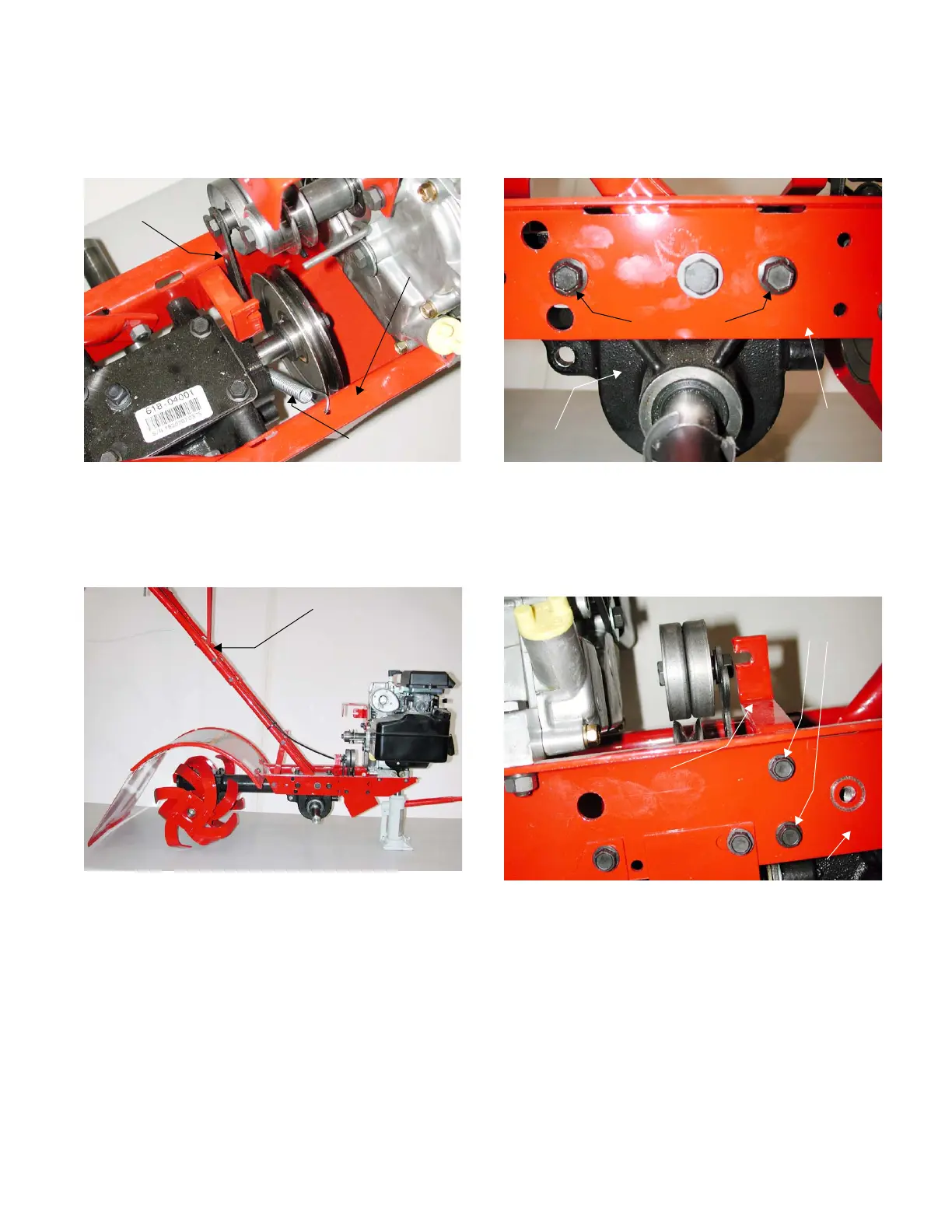

Figure 6.17
Return Spring
Right
Engine
Bracket
Idler Lever
Figure 6.19
Upper Handlebar Secured
6.20. Remove both sets of hex screws securing the
left and right engine brackets to the transmission
using a 1/2” socket. See Figure 6.20.
6.21. Remove both self-tapping hex screws securing
the lower forward cable mounting bracket to the
left engine bracket using a 3/8” socket. See Fig-
ure 6.21.
6.22. Grasp the front of the unit and raise it up until the
front support can be removed.
6.23. Lower the front of the unit until the pulley/belt
guard is setting on the ground.
Figure 6.20
Hex Screws
Engine
Bracket
Transmission
Figure 6.21
Self-Tapping
Screws
Cable Mounting Bracket
Engine Bracket
