Troy-Bilt Bronco CRT Service Manual

Troy-Bilt Small Frame Tillers
11

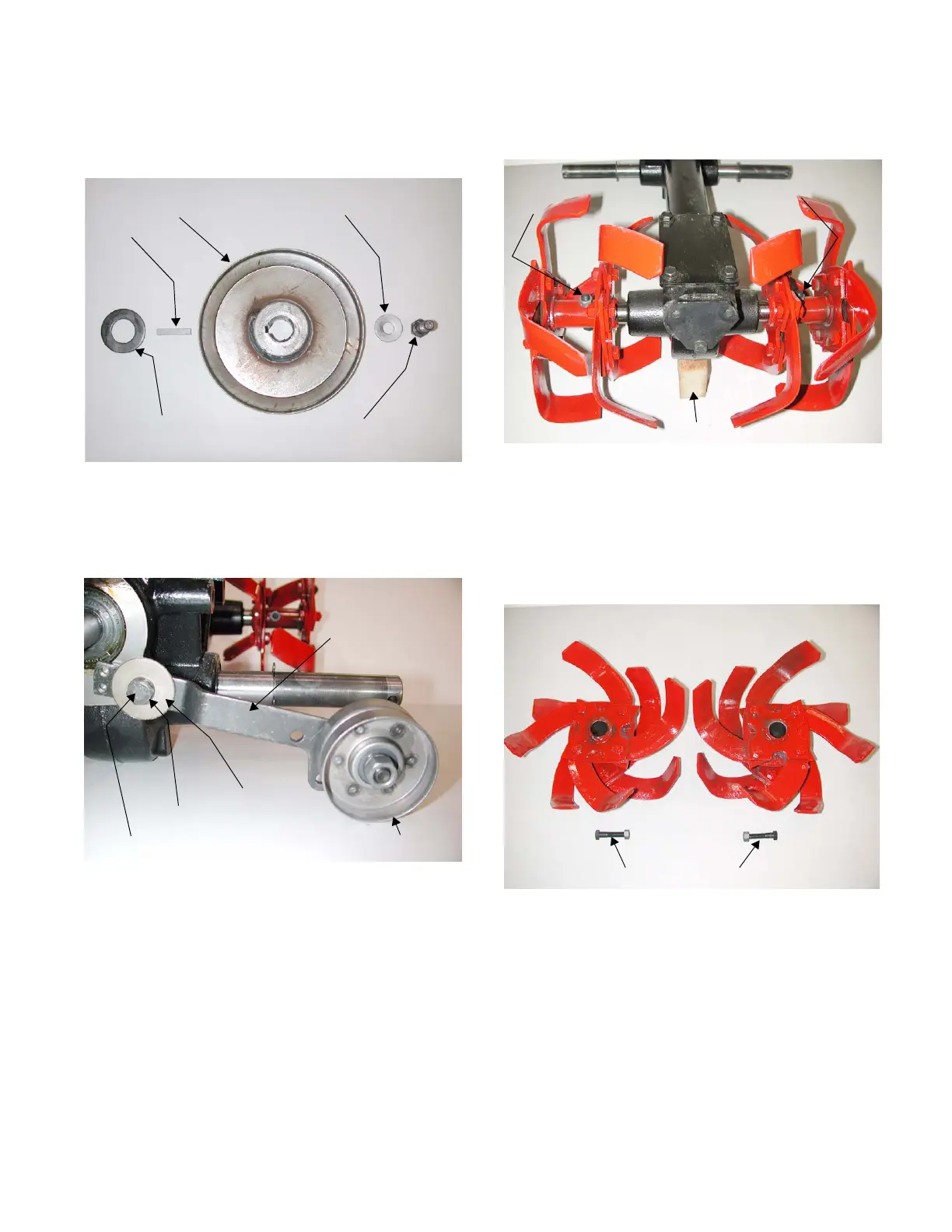

6.30. Remove the transmission pulley, key and front
support washer from the drive shaft assembly.
See Figure 6.30.
6.31. Remove the hex screw securing the forward
idler assembly to the transmission housing
assembly using a 1/2” socket. See Figure 6.31.
6.32. Rotate the transmission horizontally 180°.
Figure 6.30
Transmission Pulley
Key
Front Support Washer
Belleville
Hex Screw
Figure 6.31
Hex Screw
Lock Washer
Shoulder Washer
Forward Lever
Idler Pulley
6.33. Raise the rear of the transmission up and set it
on a 2” x 4” block. See Figure 6.33.
6.34. Remove the hex screws and lock nuts securing
the right and left tine assemblies using a 9/16”
socket and wrench.
NOTE: Record the orientation of the tine assem-
blies for correct installation. See Image Below
Figure 6.33
2” x 4”
Hex Screw &
Lock Nut
Hex Screw & Lock Nut
Right
Left
Hex Screws and Lock Nuts
Left and Right Tine Assemblies

Troy-Bilt Bronco CRT Specifications

General

Number of Forward Speeds	1
Number of Reverse Speeds	1
Tilling Width	18 in.
Tilling Depth	8 inches
Warranty	2 years limited
Starting System	Recoil start
