Troy-Bilt Bronco CRT Service Manual

Troy-Bilt Small Frame Tillers
16
7.31. Inspect the tiller shaft assembly for wear or dam-
age inside the transmission case. See Figure
7.31.
7.32. Remove the left and right oil seals from the
transmission housing, at the wheel shaft, using a
long 3/16” flat blade screwdriver. See Figure
7.32.
NOTE: Make certain the transmission oil seal
bores are not damaged during removal.
7.33. Remove the left and right retaining rings secur-
ing the wheel shaft in position using medium
retaining ring pliers. See Figure 7.33.
7.34. Remove the external shims from right and left
sides of the wheel shaft using a small hook tool
and a stick magnet. See Figure 7.34.

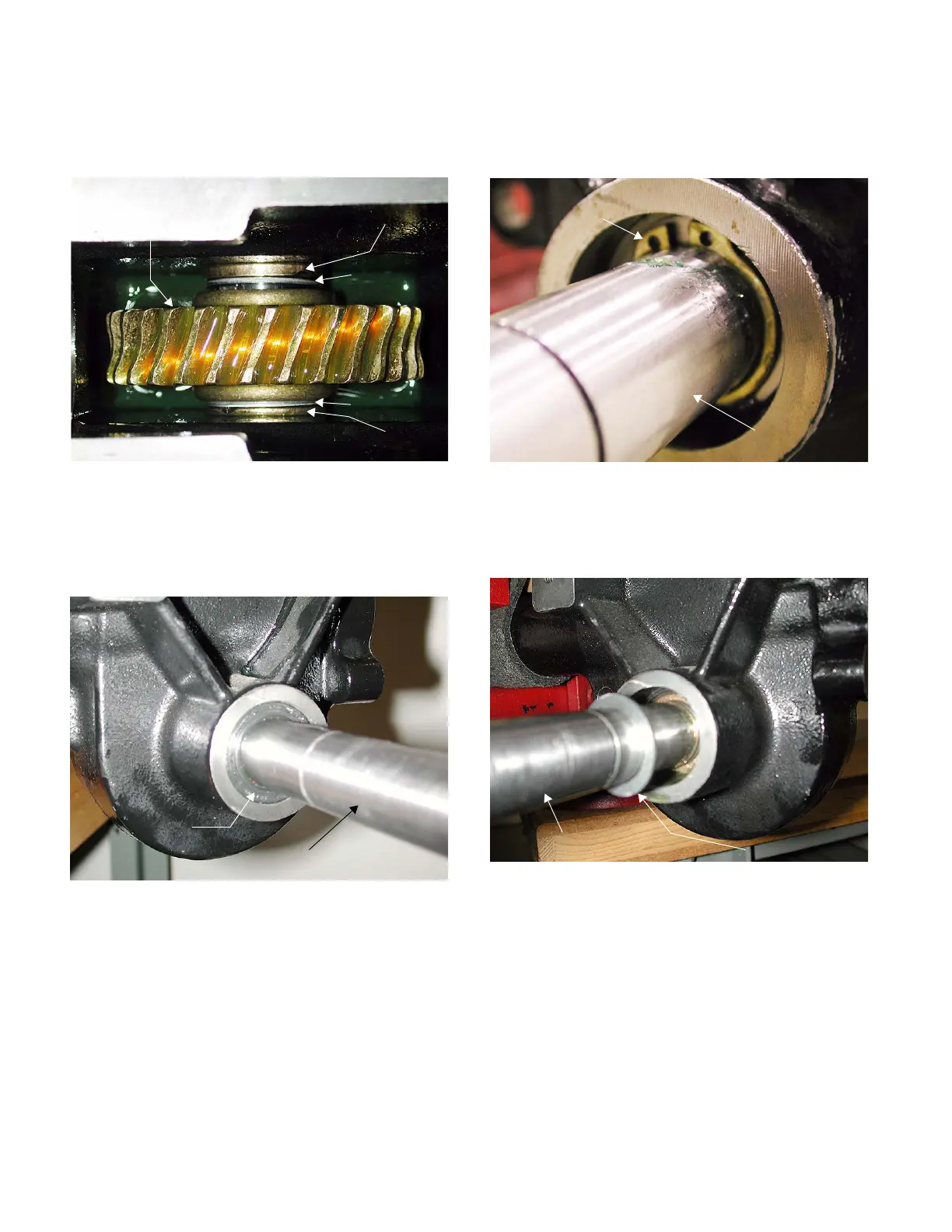

Figure 7.31
Tiller Shaft Worm Gear
Spacer
Spacer
Bronze Bushing
Bronze Bushing
Figure 7.32
Oil Seal
Wheel Shaft
Figure 7.33
Retaining Ring
Wheel Shaft
Figure 7.34
External Shims
Wheel Shaft

Troy-Bilt Bronco CRT Specifications

General

Number of Forward Speeds	1
Number of Reverse Speeds	1
Tilling Width	18 in.
Tilling Depth	8 inches
Warranty	2 years limited
Starting System	Recoil start
