Troy-Bilt Bronco CRT Service Manual

Troy-Bilt Small Frame Tillers
34
1.4. Cut the cable tie securing the reverse clutch
cable to the handlebar assembly using side cut-
ters. See Figure 1.4.
NOTE: Make certain the reverse clutch cable is
cable tied during assembly.
1.5. Remove the hex flange screw and large flat
washer securing the belt cover to the belt cover
bracket using a 3/8” socket. See Figure 1.5.
1.6. Pivot the belt cover around the forward clutch
cable until it is out of the work area.
1.7. Remove the inside jam nut securing the reverse
clutch cable to the belt cover bracket using two
1/2” wrenches. See Figure 1.7.
1.8. Remove the reverse clutch cable’s Z-fitting from
the reverse idler arm.
NOTE: The reverse return spring will drop off its
anchoring position at the left frame rail. Make
certain it is correctly installed during assembly.
1.9. Install a new reverse clutch cable in the reverse
order above. See Figure 1.9.
1.10. Leave the belt cover off at this time.
1.11. Perform the Reverse Clutch Cable Adjustment
section.

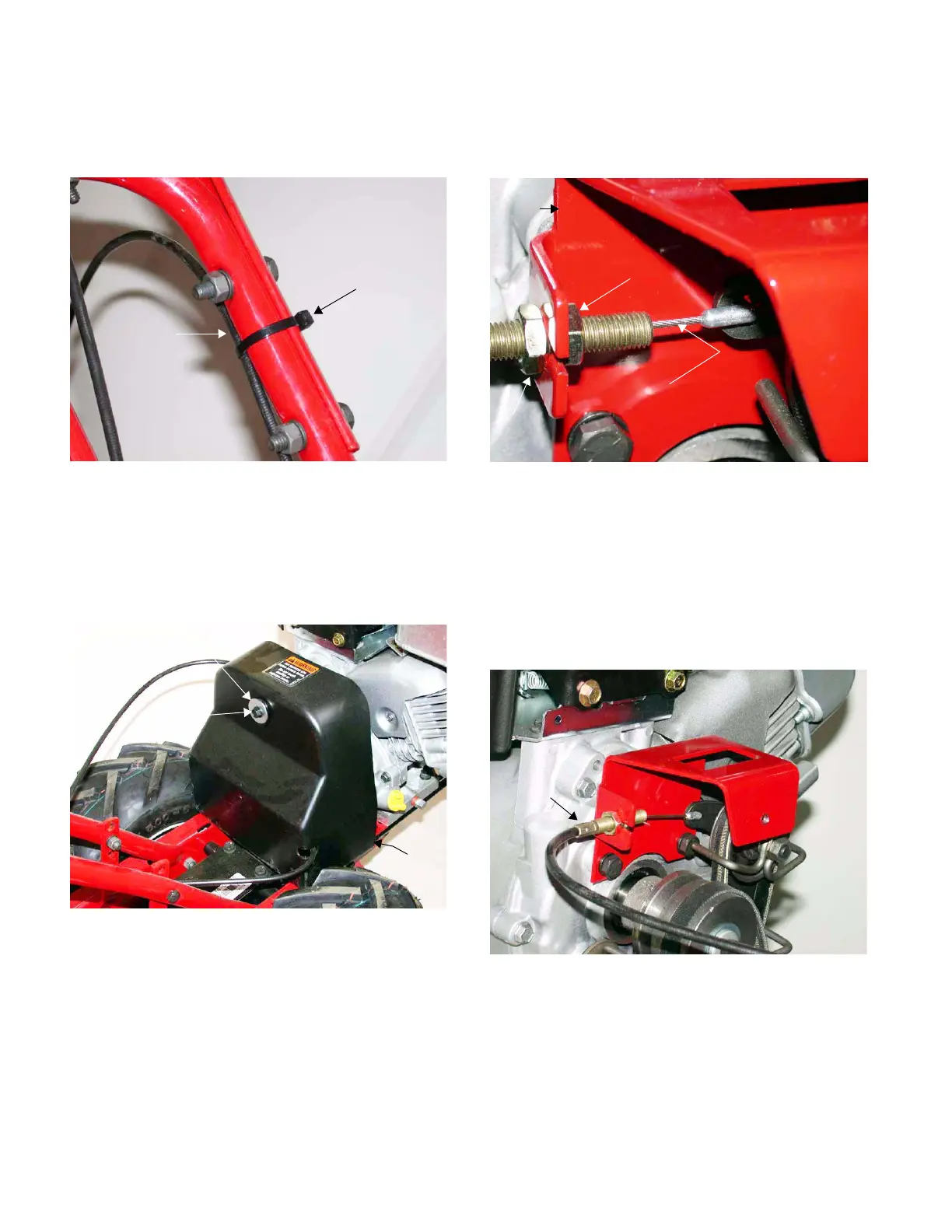

Figure 1.4
Cable Tie
Reverse Clutch
Cable
Figure 1.5
Hex Screw
Flat Washer
Belt Cover
Figure 1.7
Inside Jam Nut
Jam
Nut
Belt
Cover
Bracket
Reverse Clutch Cable
Figure 1.9
Reverse
Clutch
Cable

Troy-Bilt Bronco CRT Specifications

General

Number of Forward Speeds	1
Number of Reverse Speeds	1
Tilling Width	18 in.
Tilling Depth	8 inches
Warranty	2 years limited
Starting System	Recoil start
