Troy-Bilt CORE TB4200 - Know Your Unit; Applications; Assembly Tools Required; Unit Diagram and Components

7
Battery*
Battery Charger*
Trimmer

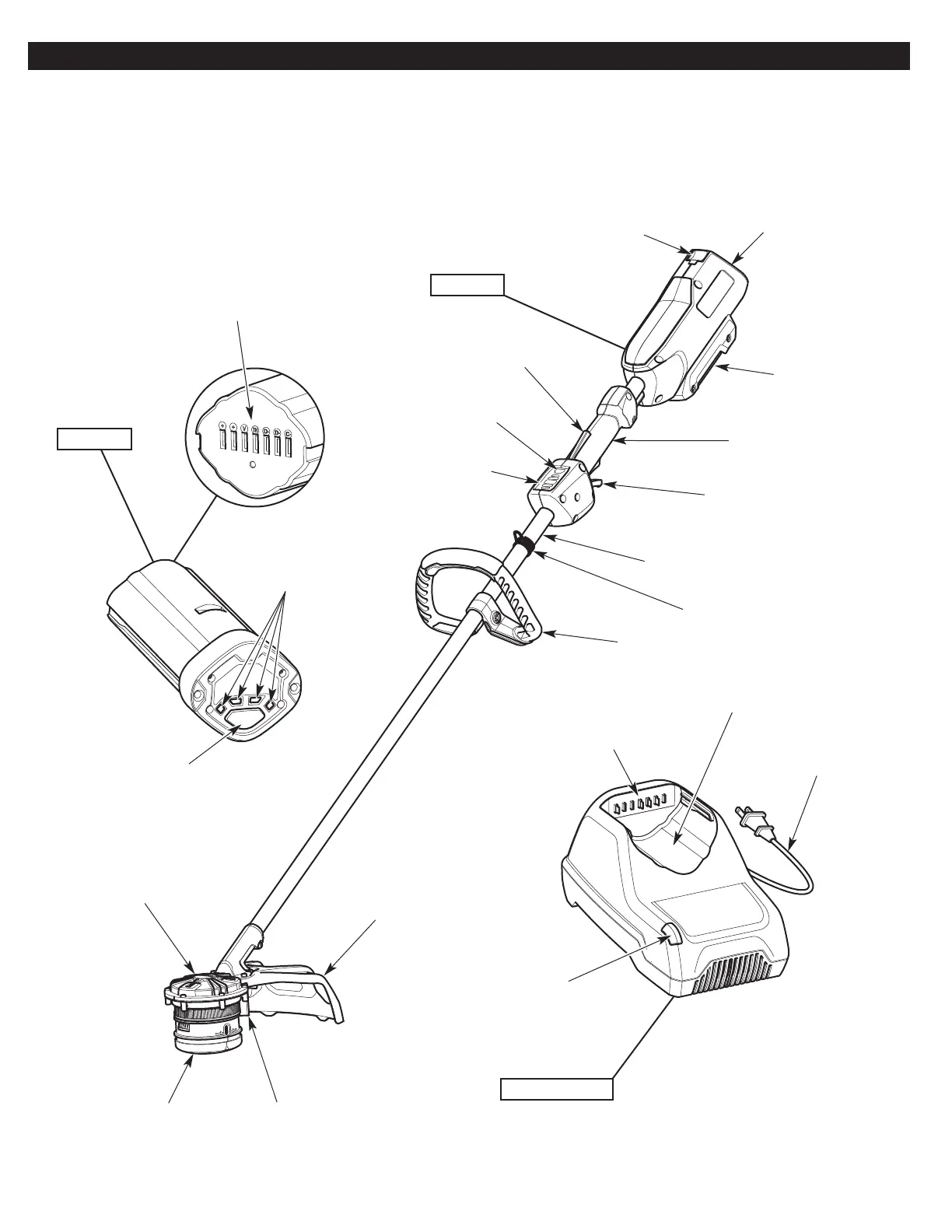

KNOW YOUR UNIT
APPLICATIONS
• Cutting grass and light weeds
• Decorative trimming around trees, fences, etc.
ASSEMBLY TOOLS REQUIRED:
• Flat-head Screwdriver
Charge Meter
Button
Charge Meter
Lights
Terminals
LED
Charging Dock
Power Cord
Terminals
Cutting Head
Shield
Cutting Head
Line Cutting Blade
Motor
Handle
Shaft Grip
Shaft Housing
Throttle Control
Throttle Lockout
Heat Sink
Battery Latch
Battery Port
Boost Button
Power Meter
* The battery and battery charger are not included with model TB4200B.
Shoulder Strap / Harness Loop
