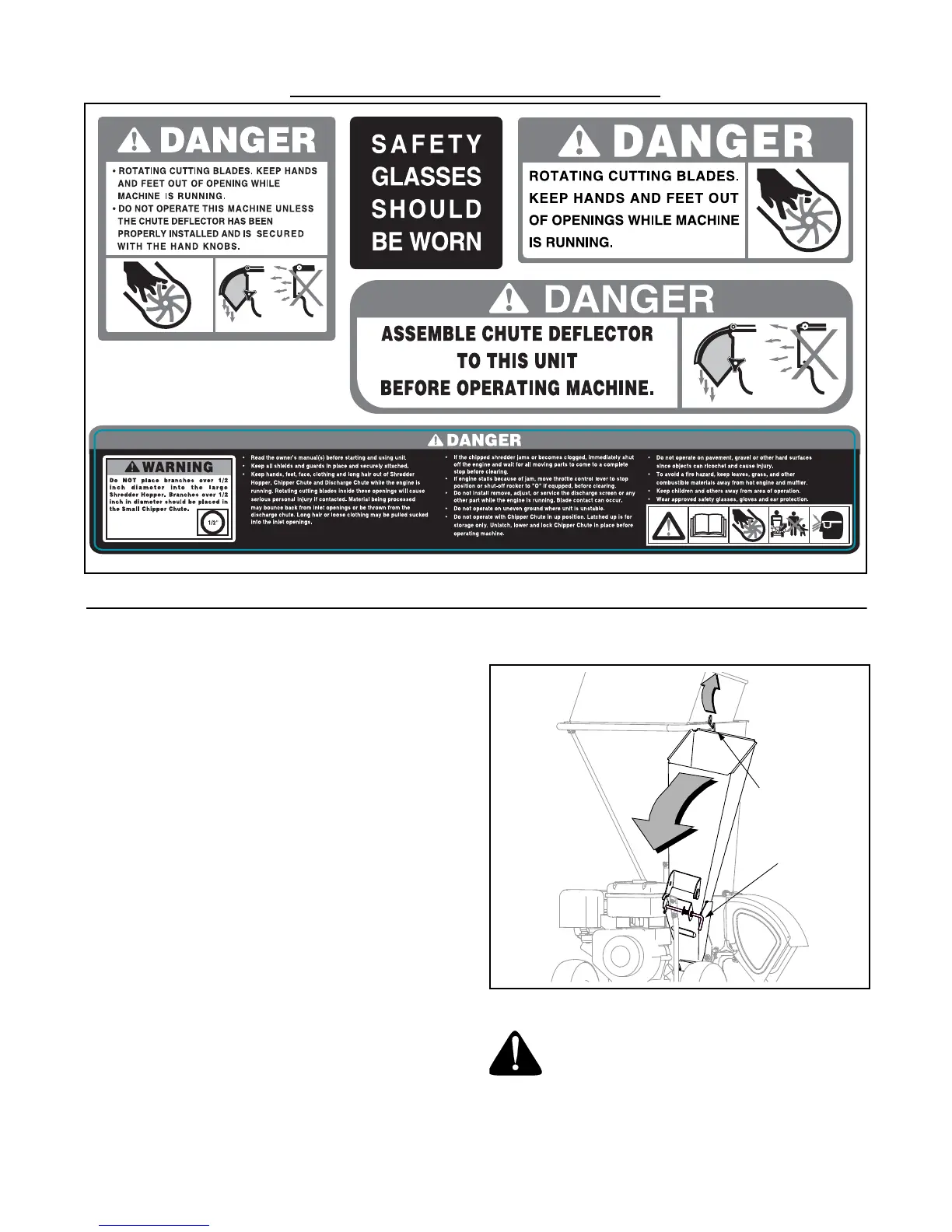

SAFETY LABELS FOUND ON YOUR UNIT
SECTION 2: ASSEMBLING YOUR CHIPPER SHREDDER
IMPORTANT:
This unit is shipped without gasoline or oil
in the engine. Be certain to service engine with gasoline
and oil as instructed in the Briggs & Stratton Owner/
Operator manual packed with your unit. before
operating your machine.
Loose Parts In Carton
•Tow Bar (Model CS4210 Only)
• Debris Collection Bag
• Safety Glasses
• Engine Oil (one 20 oz. bottle)
Lowering the Chipper Chute
For shipping reasons, the unit is crated with its chipper
chute in a raised position. To pivot it downward,
proceed as follows:
• Pull the spring latch upward and gently pivot the
chipper chute down until it clicks into the lock rod.
See Figure 1.
Figure 1
WARNING: Never operate the chipper
shredder with the chipper chute in the raised
position. Doing so may result in property
damage or serious injury to the operator or
bystanders.
1.
2.
Spring Latch
Lock Rod
To Next Page
