Controlsand Features
4
Recoil
Hose Handle
Hose Extension
Chi
Nozzle Height
Adjustment Lever
Hose Assembly
J
WARNING: The operation of any chipper shredder
can result in foreign objects being thrown into the
eyes, which can damage your eyes severely. Always
wear the safety glasses provided with this unit or
eye shields while operating or while performing any
adjustments or repairs.
ChipperChute
Allows twigs and small branches up to 1-1/2" in diameter to be
fed into the impeller for chipping. See Fig. 4-1.
NozzleHeightAdjustmentLever
Used to adjust the nozzle ground clearance ranging
approximately 5/8" to 4 1/8".
Nozzle
Yard waste such as leaves or pine needles can be vacuumed up
through the nozzle for shredding.
HoseAssembly

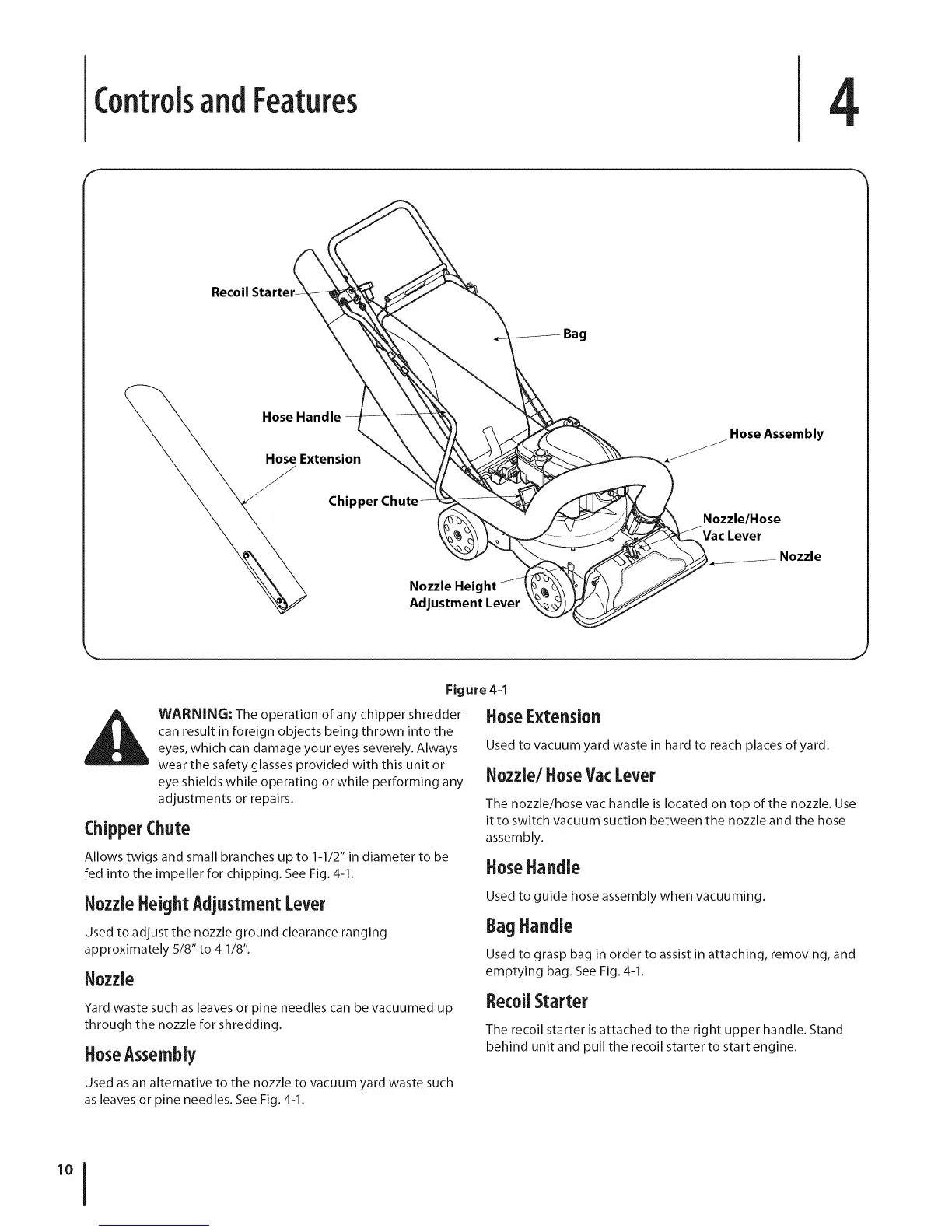

Figure 4=1
HoseExtension
Used to vacuum yard waste in hard to reach places of yard.
Nozzle/HoseVacLever
The nozzle/hose vac handle is located on top of the nozzle. Use
it to switch vacuum suction between the nozzle and the hose
assembly.
HoseHandle
Used to guide hose assembly when vacuuming.
SagHandle
Used to grasp bag in order to assist in attaching, removing, and
emptying bag. See Fig. 4-1.
RecoilStarter
The recoil starter is attached to the right upper handle. Stand
behind unit and pull the recoil starter to start engine.
Used as an alternative to the nozzle to vacuum yard waste such
as leaves or pine needles. See Fig. 4-1.
