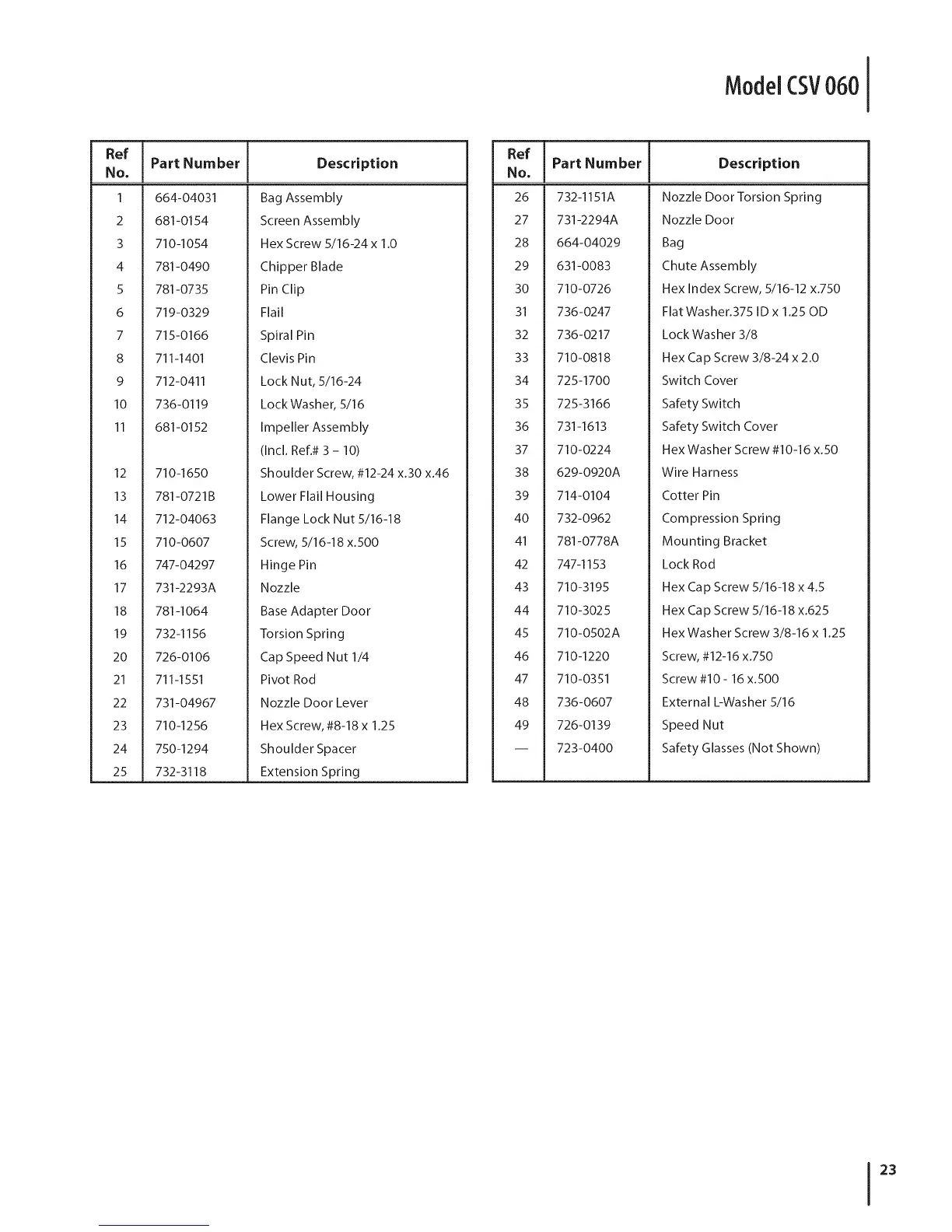

Troy-Bilt CSV 060 User Manual

ModelCSV060
Ref I Part Number
NO,
I
1 664-04031
2 681-0154
3 710-1054
4 781-0490
5 781-0735
6 719-0329
7 715-0166
8 711-1401
9 712-0411
10 736-0119
11 681-0152
12 710-1650
13 781-0721B
14 712-04063
15 710-0607
16 747-04297
17 731-2293A
18 781-1064
19 732-1156
20 726-0106
21 711-1551
22 731-04967
23 710-1256
24 750-1294
25 732-3118
Description
Bag Assembly
Screen Assembly
Hex Screw 5/16-24 x 1.0
Chipper Blade
Pin Clip
Flail
Spiral Pin
Clevis Pin
Lock Nut, 5/16-24
Lock Washer, 5/16
Impeller Assembly
(Incl. Ref.# 3 - 10)
Shoulder Screw, #12-24 x.30 x.46
Lower Flail Housing
Flange Lock Nut 5/16-18
Screw, 5/16-18 x.500
Hinge Pin
Nozzle
Base Adapter Door
Torsion Spring
Cap Speed Nut 1/4
Pivot Rod
Nozzle Door Lever
Hex Screw, #8-18 x 1.25
Shoulder Spacer
Extension Spring
Ref
No.
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
I Part Number
732-1151A
731-2294A
664-04029
631-0083
710-0726
736-0247
736-0217
710-0818
725-1700
725-3166
731-1613
710-0224
629-0920A
714-0104
732-0962
781-0778A
747-1153
710-3195
710-3025
710-0502A
710-1220
710-0351
736-0607
726-0139
723-0400
Description
Nozzle Door Torsion Spring
Nozzle Door
Bag
Chute Assembly
Hex Index Screw, 5/16-12 x.750
Flat Washer.375 ID x 1.25 OD
Lock Washer 3/8
Hex Cap Screw 3/8-24 x 2.0
Switch Cover
Safety Switch
Safety Switch Cover
Hex Washer Screw #10-16 x.50
Wire Harness
Cotter Pin
Compression Spring
Mounting Bracket
Lock Rod
Hex Cap Screw 5/16-18 x 4.5
Hex Cap Screw 5/16-18 x.625
Hex Washer Screw 3/8-16 x 1.25
Screw, #12-16 x.750
Screw #10 - 16 x.500
External L-Washer 5/16
Speed Nut
Safety Glasses (Not Shown)
23
