Ref
No.
Part Number Description
1 941-0415 Flange Bearing.566 ID

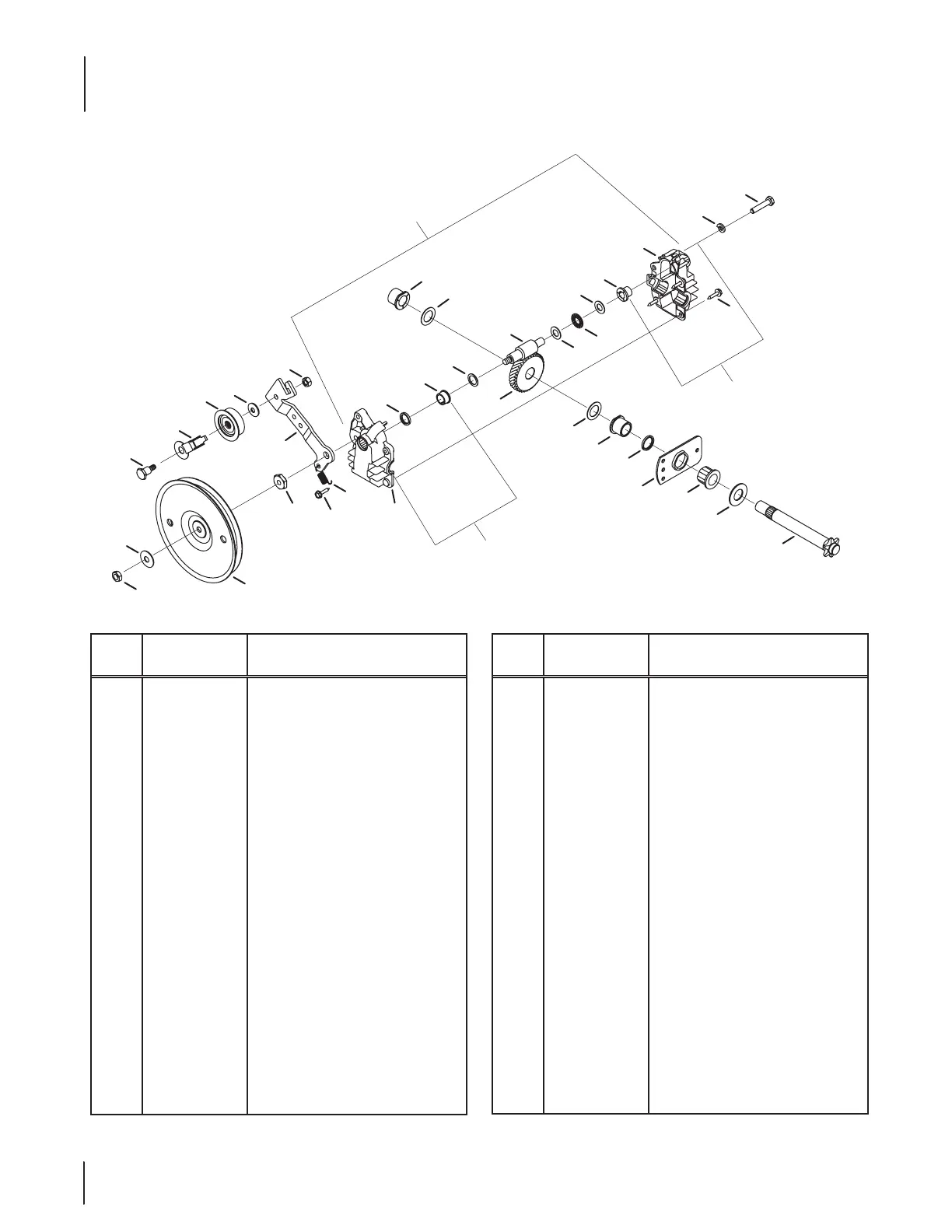

2 918-0255 Shredder Transmission Assembly
3 16500A-0637 Hex Bearing Cup
4 911-1118 Output Shaft 6T Sprocket
5 717-1432 Helical 34T Gear
6 721-0213 Oil Seal
7 736-0187 Flat Washer, .64 ID x 1.24 OD
8 936-0336 Flat Washer, 5/8 x 1.0
9 941-0413 Hex Flange Bearing, .631 ID
10 741- 0414 Flange Bearing, .629 ID
11 719-0325 Lower Housing
12 748-0373 Flange Bearing, .503 ID
13 719-0324A Upper Housing
14 748- 0208A Flange Bearing, .378 ID
15 710-0589 Hex Washer Screw, #10-16 x.75
16 717-1433 Pinion Shaft 10T
17 921-0329 Oil Seal
18 936-0314 Thrust Washer, .382 ID x.684 OD
19 936-0520 Flat Washer, .504 ID x.70 OD
Ref
No.
Part Number Description
20 741- 0479 Thrust Bearing, .375 ID x.812 OD
21 956-0008 Idler Pulley Assembly W/ Bearing
956-0558 Idler Pulley Only
941-0556 Needle Bearing Only
22 710 -1062 Hex Cap Screw, 1/4-20 x 1.25
23 912- 0138 Hex Nut, 1/4-28
24 912-3045 Hex Jam Nut, 5/16-24 LH Thd
25 932-0357A Extension Spring, 1.12 Lg
26 736-0270 Bell Washer, .265 ID x.75 OD
27 936-0329 Lock Washer, 1/4
28 936-0425 Bell Washer, .325 ID x.930 OD
29 738-0440 Shoulder Spacer, .375 ID x.165 OD
30 938-0826 Shoulder Bolt, 1/4-28 x.375
31 756-0656 Flat Pulley 5.06 Dia
32 782-7569 Belt Keeper
33 682-0054 Idler Bracket
34 618-0132 Lower Housing Assembly
35 618-0133A Upper Housing Assembly
2
23
17
12
16
20
15
18
18
14
13
27
22
19
26
21
32
33
1
8
30
31
29
15
25
11
28
24
35
34
5
8
6
10
3
9
7
4
Model CSV 204
