11
Features and Controls
Generator
Read this Operator’s Manual and safety rules before operating your generator.

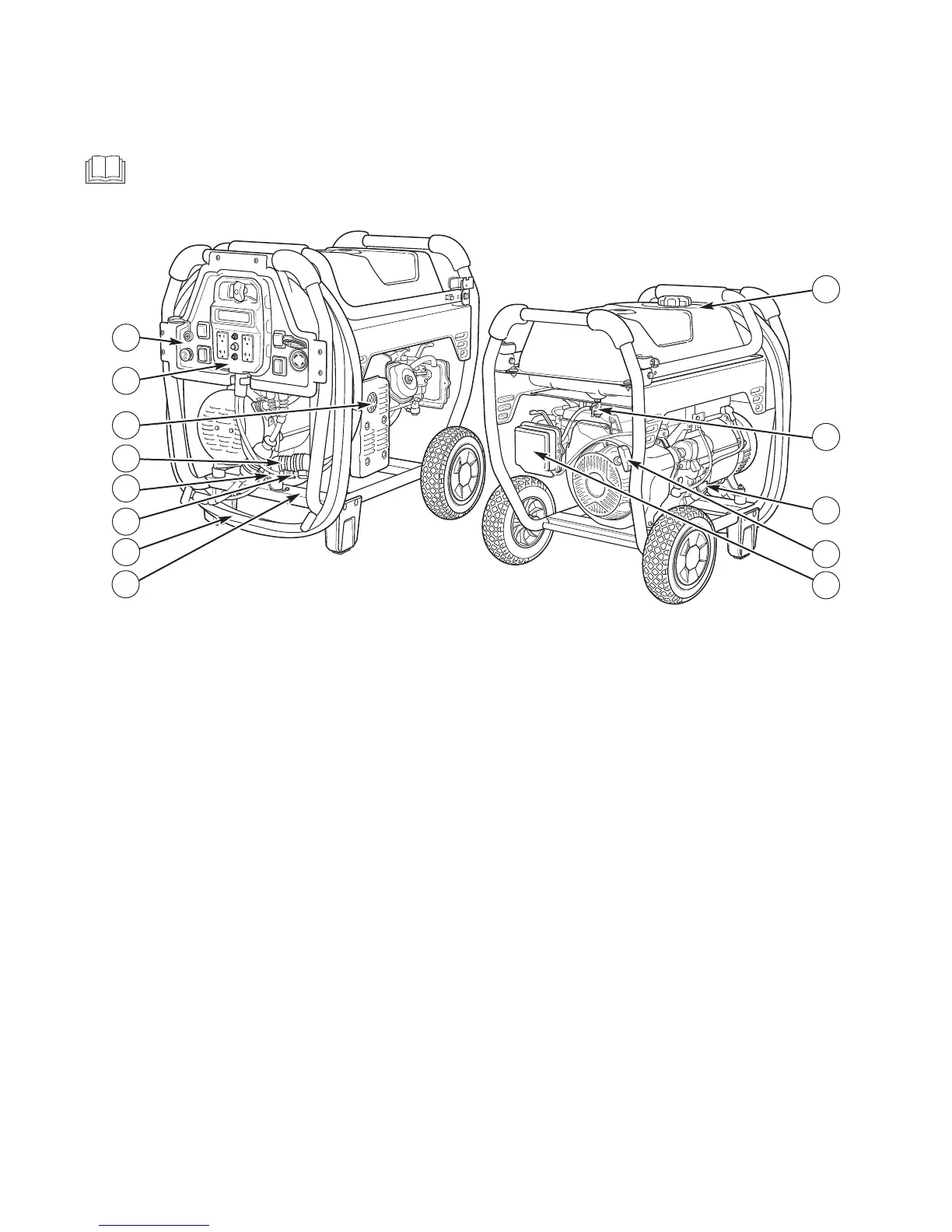

Compare the illustrations with your generator, to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
A - Main Control Panel — Permanently affixed to generator.
See Control Panel on next page.
B - Extend-a-panel™ — May be removed and connected to
generator with accessory cord for remote operation. See
Control Panel on next page.
C - Spark Arrester Muffler — Exhaust muffler lowers engine
noise and is equipped with a spark arrester screen.
D - Twistlock Connector — Used to connect Extend-a-
panel™ directly to generator or with provided accessory
cord.
E - Grounding Fastener — Consult your local agency having
jurisdiction for grounding requirements in your area.
F - 2 Pin Connector — Plug in to sense current for dual load
monitoring on Extend-a-panel™.
G - Accessory Cord — Extend-a-panel™ can be connected to
generator with provided 20 Amp, 25 ft. (7.6 m)
accessory cord.
H - Identification Label — Provides model, revision and
serial number of generator. Please have these readily
available when calling for assistance.
J - Air Cleaner — Protects engine by filtering dust and
debris out of intake air.
K - Recoil Starter — Used to start the engine manually.
L - Oil Fill Cap — Check and add engine oil here.
M - Fuel Valve — Used to turn fuel supply on and off to
engine.
N - Fuel Tank — Capacity of 8.5 U.S. gallons (32.2 l).
Items Not Shown:
Engine Identification — Provides model, type and code of
engine. Please have these readily available if calling for
assistance.
Oil Drain Plug — Drain engine oil here.
G
A
N
B
K
C
D
M
J
L
E
F
H
