14 troybilt.com
Extend-a-panel™
A double pole rocker switch circuit breaker on the main panel
is provided to protect the cordset off main panel. If this
circuit breaker is tripped, all power from cordset is
disconnected.

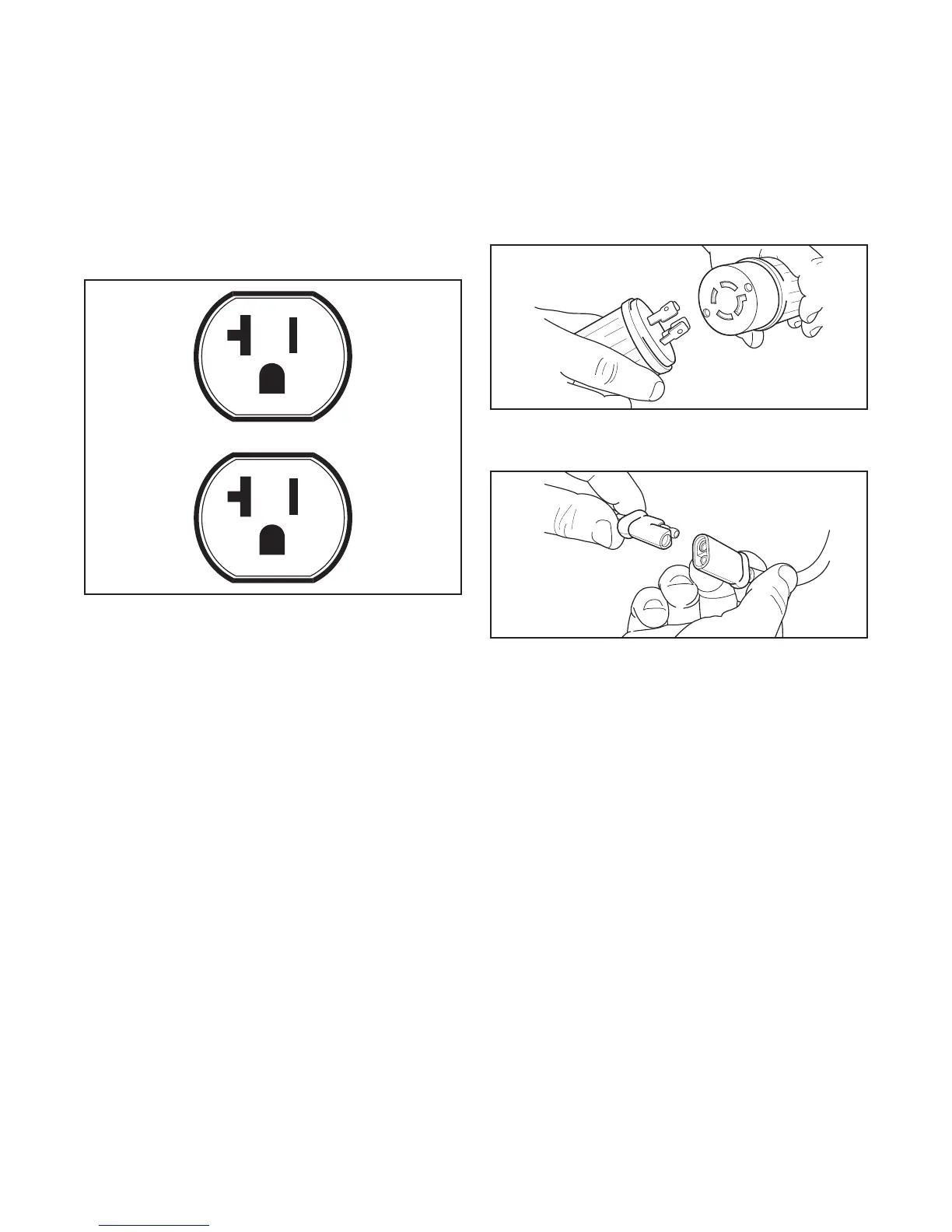

120 Volt AC, 20 Amp, Duplex Receptacles
The Extend-a-panel™ has two 120 Volt, 20 Amp duplex
receptacles. Each receptacle is protected against overload by
push-to-reset circuit breakers.
Use each receptacle to operate 120 Volt AC, single-phase,
60 Hz electrical loads requiring up to 2,400 watts (2.4 kW) at
20 Amps of current. Use cord sets that are rated for 125 Volt
AC loads at 20 Amps (or greater). Inspect cord sets before
each use.
Extend-a-panel™ Accessory Cord
The Extend-a-panel™ can be connected to the generator
directly or with the provided 20 Amp, 25 ft. (7.6 m) accessory
cord. When using the 25 ft. (7.6 m) accessory cord with the
Extend-a-panel™, always make sure to follow all safeties and
instructions on cord.
1. Disconnect Extend-a-panel™ twistlock from small
twistlock cord under main panel on generator.
2. Disconnect Extend-a-panel™ two-pin connector from
small two-pin connector cord under main panel on
generator.
3. Connect Extend-a-panel™ twistlock and two-pin
connector to female end of accessory cord.
4. Connect male end of accessory cord twistlock and two-
pin connector to small cords under main panel on
generator.
NOTICE DO NOT exceed a seperation length of 50 ft.
(15.24 m) or a combination of two Extend-a-panel™
accessory cords. Use only with original replacement
accessory cords.
Extend-a-panel™ LCD
The Extend-a-panel™ also has a bult in LCD display with
alarm system to monitor the following features:
• Dual Load Monitor (Panel and Total)
• Maintenance Reminder
• Security Warning
• Generator Shutdown
