3.3. Remove the reverse clutch cable’s Z-fitting from
the reverse idler arm. See Figure 3.3.
NOTE: The reverse return spring will drop off its
anchoring position at the left frame rail. Make
certain it is correctly installed during assembly.
See the Image Below.
3.4. Loosen the lock nut securing the reverse idler
pulley belt guide in position using a 1/2” socket
and wrench. See Figure 3.4.
3.5. Remove the reverse drive belt from the reverse
idler pulley.
3.6. Remove all four self-tapping screws securing the
pulley/belt guard to the left and right engine
brackets using a 3/8” socket and wrench.
NOTE: The wheel and tire assemblies can be
move outward for extra clearance.
3.7. Remove the pulley/belt guard.

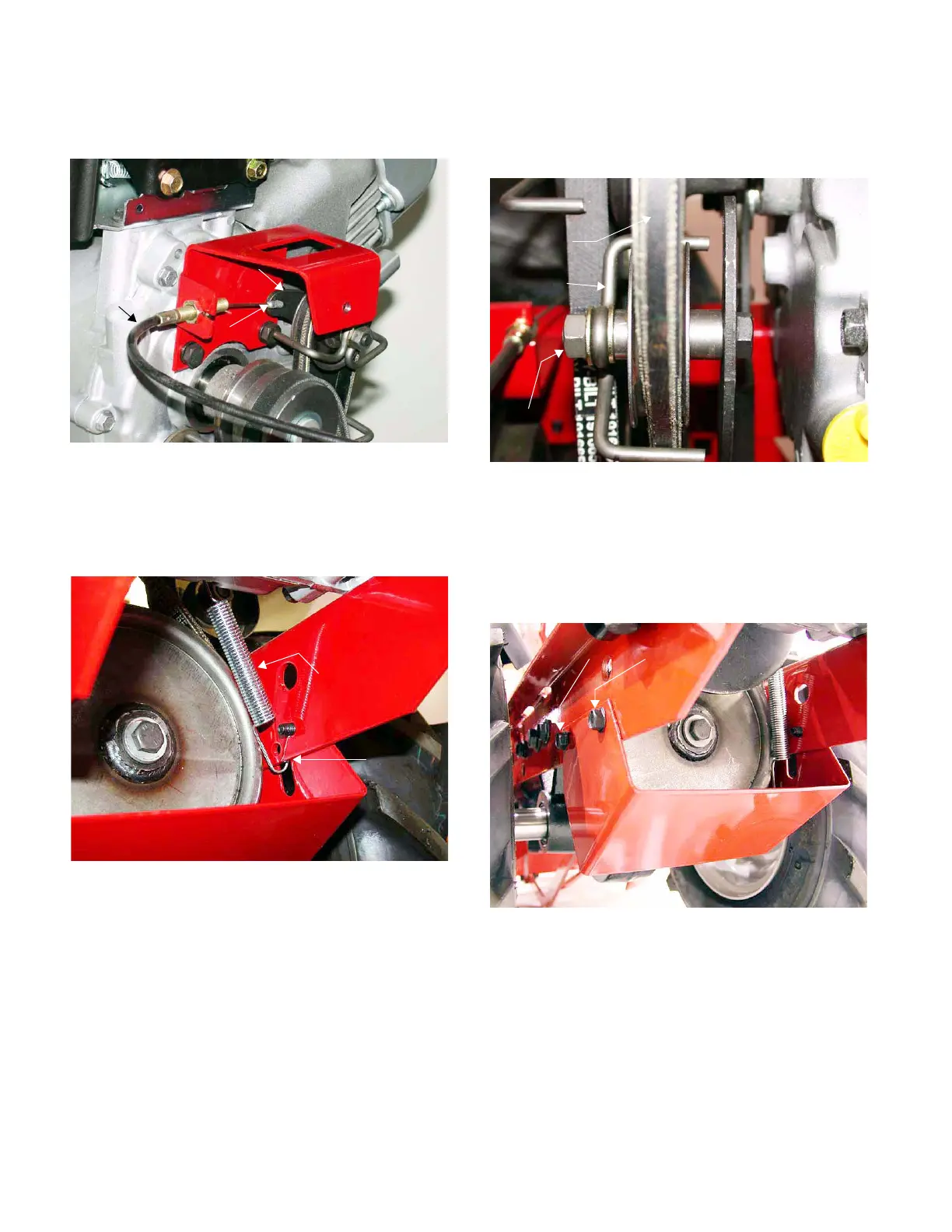

Figure 3.3
Reverse
Clutch Cable
Reverse Idler Arm
Z-Fitting
Reverse Return Spring Location
Reverse
Return Spring
Anchor
Position
Figure 3.4
Lock Nut
Belt Guide
Reverse Drive
Belt
Figure 3.6
Self-Tapping Screws
