12 Section 3— ASSembly & Set-Up

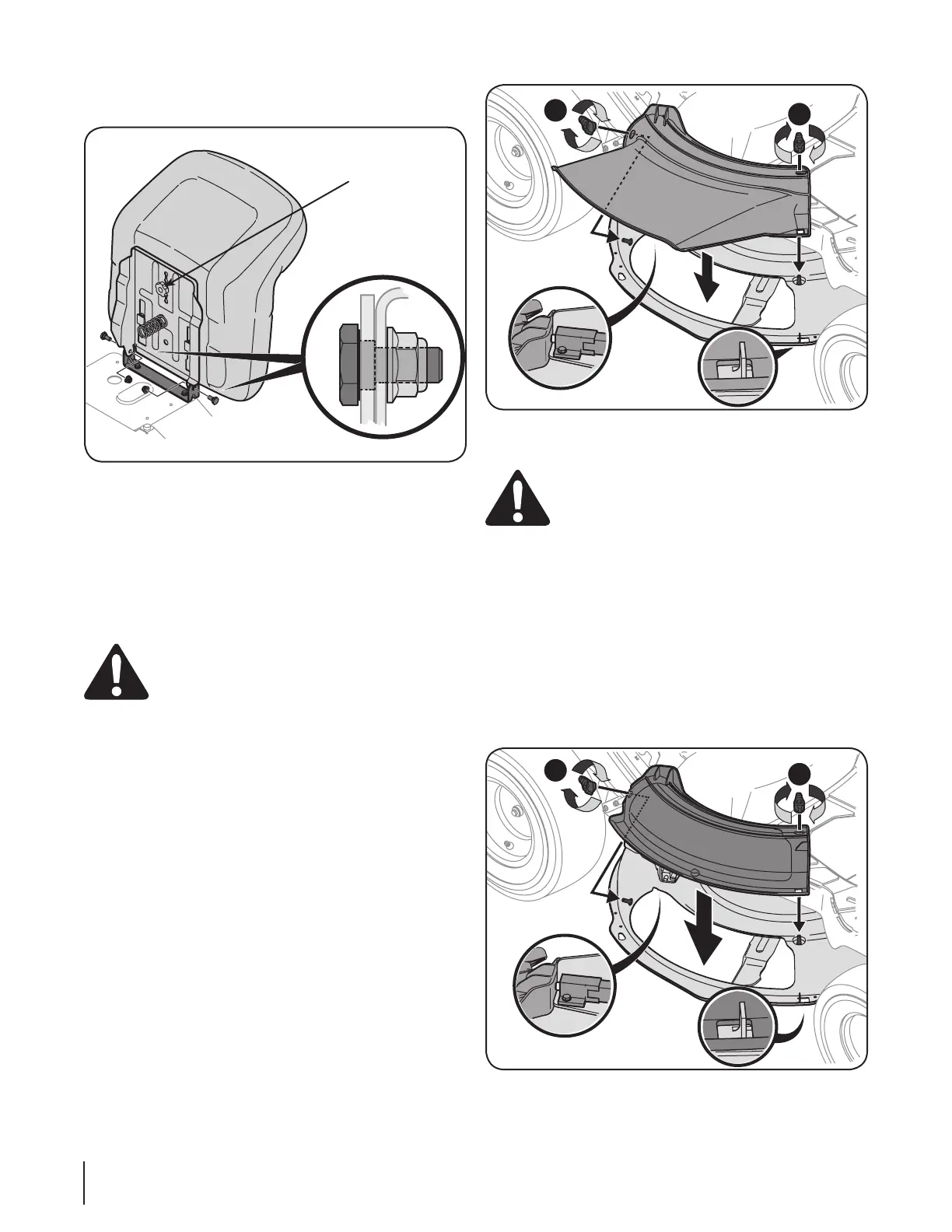

Figure 3-8
Installing the Mulch Plug
WARNING! NEVER operate this tractor without
either the mulch plug or deck chute installed.
Remove the wing knobs installed on the mowing deck and
retain for later installation.
2. Install the mulch plug into the deck discharge opening on
the deck. The studs on the deck surface will fit through the
holes on the upper portion of the mulch plug. The small
tab on the deck lip area will fit through the square cutout
Note: Make certain that the upper-rear portion of mulch
plug is depressing the safety switch located on the deck
surface. The engine will not start without the mulch plug
properly in place.
Figure 3-9
3. Secure the mulch plug by tightening the wing knobs
removed earlier.
Install the two shoulder bolts and lock nuts removed from
Adjustment knob
Figure 3-7
Note:
recessed into the seat bracket when securing the lock nut.
7. To adjust the position of the seat, loosen the adjustment
knob on the bottom of the seat. Slide the seat forward or
backward as desired. Retighten the adjustment knob. Refer
to Fig. 3-5.
Installing The Deck Chute
WARNING! NEVER operate this tractor without
either the mulch plug or deck chute installed.
Remove the wing knobs installed on the mowing deck and
retain for later installation.
2. Install the deck chute into the deck discharge opening on
the deck. The studs on the deck surface will fit through the
holes on the upper portion of the deck chute. The small tab
on the deck lip area will fit through the square cutout on
the lower portion of the deck chute. See Figure 3-8.
Note: Make certain that the upper-rear portion of deck
chute is depressing the safety switch located on the deck
surface. The engine will not start without the deck chute
properly in place.
3. Secure the deck chute by tightening the wing knobs
removed earlier. See Figure 3-8.
