Assembly & Set-Up
3
10

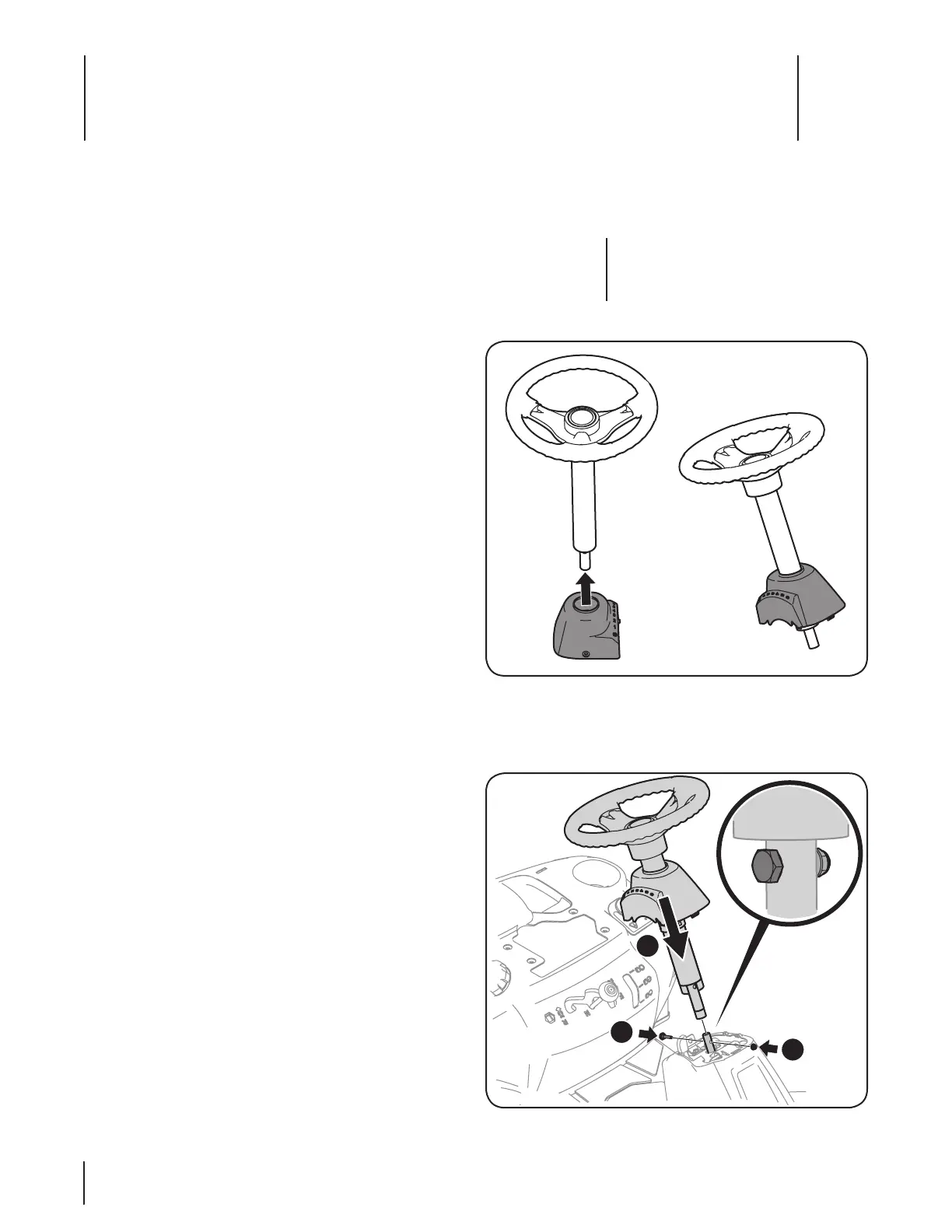

Figure 3-1
Lower the steering wheel assembly onto the lower steering
shaft and secure with the shoulder bolt and lock nut
previously removed. See Figure 3-2.
Figure 3-2
Contents of Hardware Pack
Before beginning installation, remove all the contents from the
crate and all the hardware from the pack from to make sure
everything is present. Hardware is listed below. Part numbers are
shown in parentheses.
Hitch Plate
Seat Mounting Bracket (with two shoulder bolts & lock nuts
installed)
Recommended Tools for Assembly
Phillips Screw Driver
Installing The Steering Wheel Assembly
If the steering wheel assembly for your tractor did not come
alredy installed, follow the steps below:
Slide the pedestal cap onto the steering shaft so that when
the steering shaft is installed on the tractor, the pedestal
2. Remove the shoulder bolt and lock nut from the steering
shaft and retain for later steps.
3. With the steering wheel assembly upright and positioned
over the lower steering shaft on the tractor, align the
steering wheel so that with the tractor wheels straight, the
large opening on the steering wheel is facing forward.
Contents of Crate
Manual
Assembly & Set-Up
3
10
