E34
TB475SS PARTS LIST
Item Part No. Description
1 753-04234 Throttle Housing Assembly (includes 2 & 3)
2 753-04119 Throttle Trigger
3 791-182690 Throttle Trigger Spring
4 791-182405 Switch Assembly
5 791-180869 Deluxe D-Handle Assembly ( includes 6-8)
6 791-181070 Handle Mount Hardware
7 791-182167 Deluxe D-Handle
8 791-182168 Bottom Clamp
9 753-04508 Upper Drive Shaft Housing Assembly
10 753-1190 Split Boom Coupler (includes 11-14)
11 791-182057 Screw
12 791-181617 Bolt
13 791-181981 Adjustment Knob
14 753-04386 Knob Retaining Nut
15 791-182388 Lower Drive Shaft Housing Assembly
16 791-181166 Lower Flexible Drive Shaft
17 791-153597 Lower Clamp Assembly (includes 18)
18 791-145569 Anti-Rotation Screw
19 791-180547 Shield Mounting Hardware
20 753-1213 Shield and Blade Assembly (includes 21)
21 791-181823 Blade Assembly
22 791-181566 Gearbox Assembly
23 791-181457 Outer Spool Assembly (includes 24)
24 791-181458 Retaining Ring
25 791-181561 Thrust Washer
26 791-181459 Small Spring
27 753-04257 Slider
28 791-181532 E-Clip
29 791-181531 Spring
30 791-181462 Plunger
31 791-181463 C-Clip
32 791-181464 Inner Reel
33 791-181465B Large Spring
34 791-181467 Foam Seal
35 791-181468 Bump Head Knob Assembly (includes 33 & 34)
Optional Accessories
* 791-180120 Replacement Line, 0.095 Diameter
* 753-04218 Reel and Line Assembly
* 791-682075 Shoulder Strap Assembly
* Items Not Shown
19
22
18
19
17
16
15
10
11
12
13
8
7
6
5
4
1
1
2
3
28
20
21
9
14
23
31
29
27
24
25
26
28
30
32
33
34
35

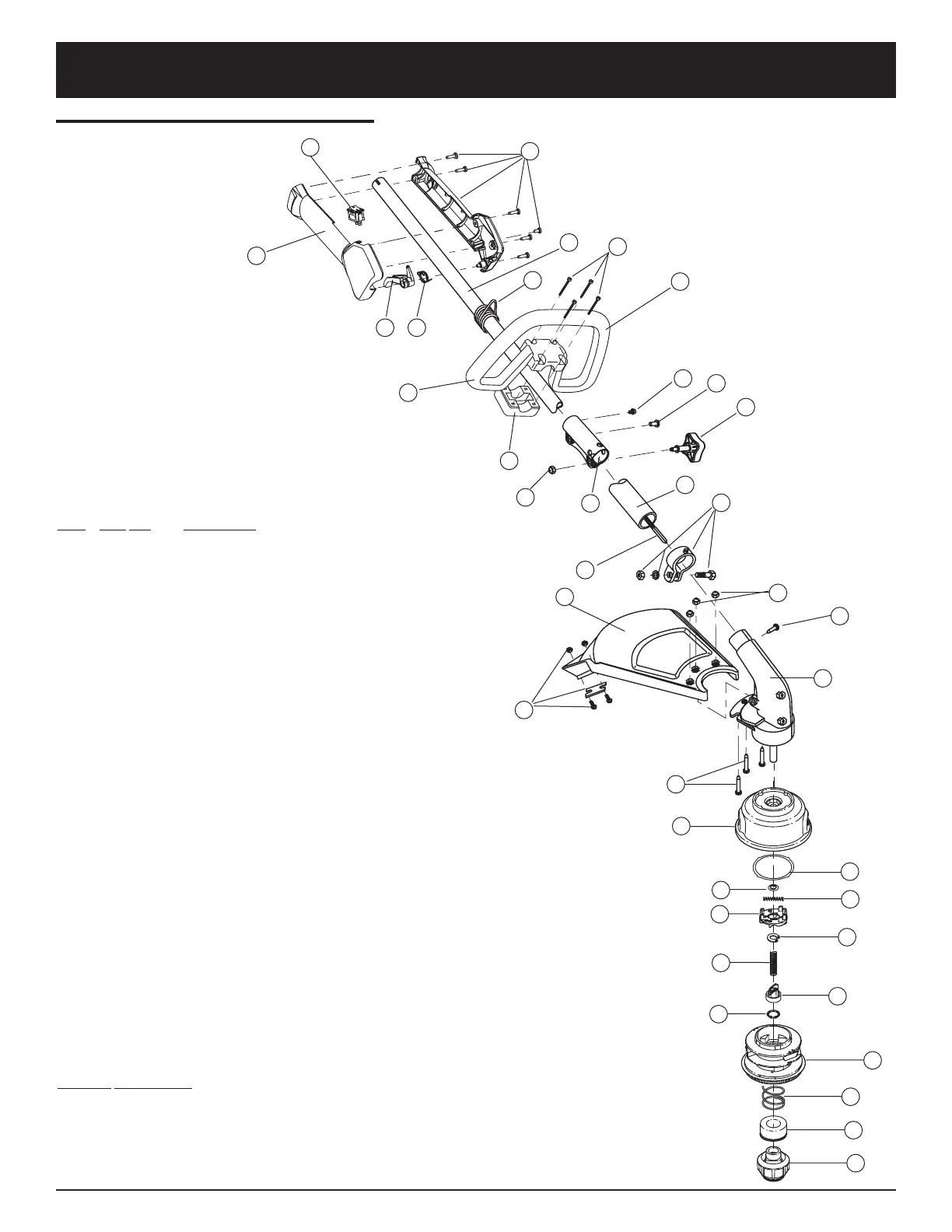

BOOM AND TRIMMER PARTS - MODEL TB475SS
4-CYCLE GAS TRIMMER
