Troy-Bilt TB4516CC - Parts List

E23

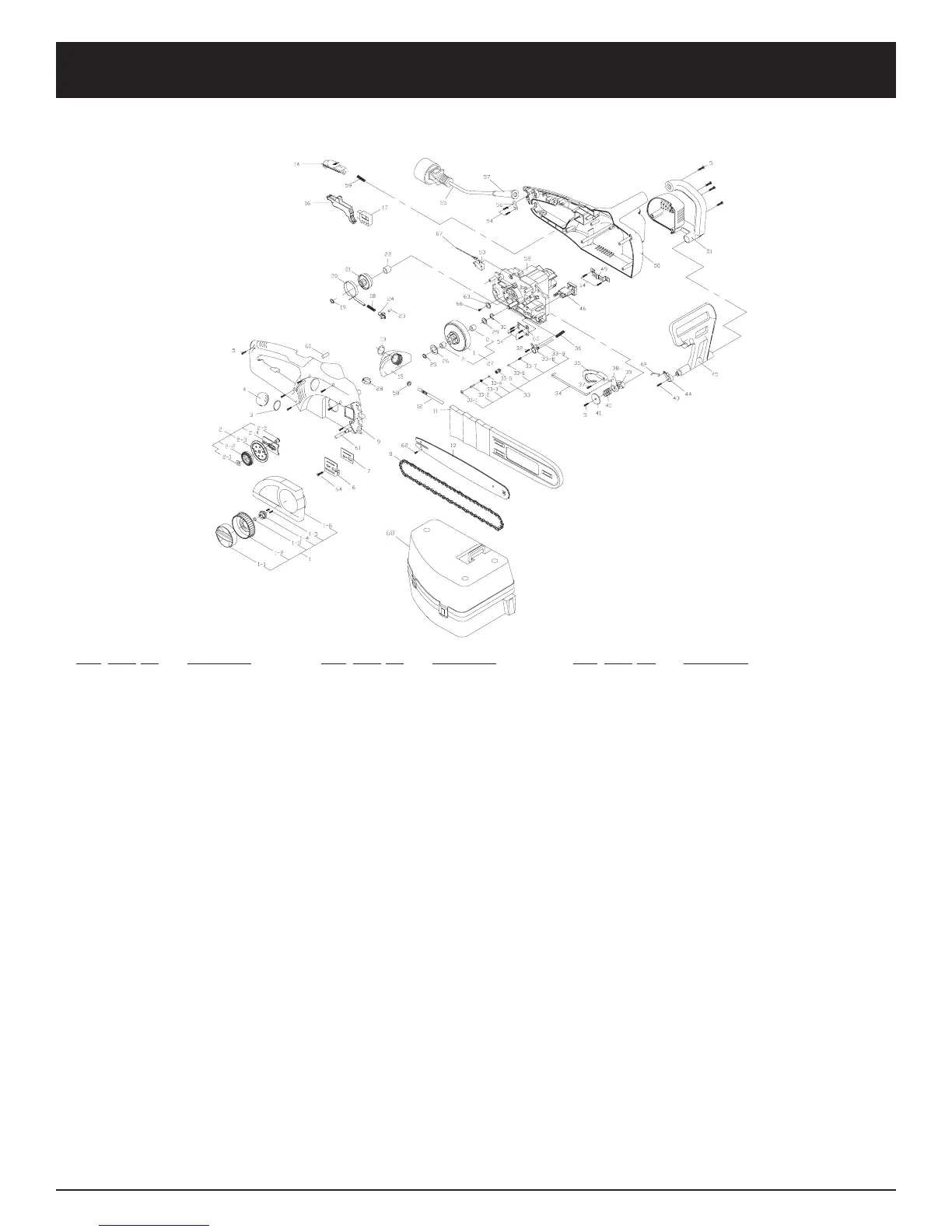

PARTS LIST
MODEL TB3516/TB4516CC
Item Parts No. Description
1 6228-211403 HOUSING (R)
2 6228-211504 CHAIN COVER ASS'Y
3 6012-210501 WASHER
4 6017-210103 OIL COVER
5 6SDABB04-18 SCREW
6 6043-211302 ADJUSTMENT PLATE
7 6050-211302 OIL WASHER
8 6220-210201 CHAIN
9 6038-211505 HOUSING (R)
10 9040-310175 BAR
11 6010-210506 COVER
12 6228-211506 OIL PIPE ASS'Y
13 6076-210503 WASHER
14 6056-211502 SWITCH BUTTON
15 6066-211501 OIL TENK
16 6028-211502 TRIGGER
17 6022-211502 SWITCH
18 6024-211505 SPRING
19 6CY-08 RING
20 6079-211501 SPRING, BRAKE
21 6073-211501 GEAR
22 6059-210201 ADJUSTMENT COVER
23 6115-211502 PIN
24 6154-211502 CONNECTION
25 6CG-9.5 C RING
52 6228-211301 MOTOR GEAR BOX ASS'Y(TB3516)
6228-211401 MOTOR GEAR BOX ASS'Y(TB4516CC)
Item Parts No. Description
33 6228-210105 OIL PUMP ASS'Y
34 6188-211501 PULL BAR
35 6114-211501 PULL PLATE
36 6024-211507 SPRING
37 6SDABB04-14 SCREW
38 6181-211501 CLUTH
39 6181-211502 CLUTH
40
41
6024-211503 SPRING
42 6154-211503 CONNECTING BAR
6014-211501 WASHER
43 6SQABB4.5-30 SCREW
44 6154-211504 CONNECTOR
45 6017-211503 FRONT-HAND GUARD
46 6228-211303 FIXED ACC'Y
48
49
6SDABB04-16 SCREW
50
6079-211503 SPRING
51
6038-211506 HOUSING (L)
6086-211501 REAL COVER
26 6014-210502 WASHER
27 6228-210104 GEAR BEARING ASS'Y
28 6077-211501 COVER
29 6057-210102 WASHER
30 6CC-10 C RING
32 6SDABB03-18 SCREW
Item Parts No. Description
53 6022-211501 SWITCH
54 6SDABB04-10 SCREW
55 6011-211502 POWER CORD
56 6043-840001 STRAIN RELIEF
57 6059-855001 CORD GUARD
58 6012-211501 RUBBER STOP
59 6024-211506 SPRING
60 6PC-05-15 PIN
61 6PC4.4-35 PIN
62 6SQAB-04-06 SCREW
63 6WFB-03-12 WASHER
64 6SDABB03-18 SCREW
65 6158-211502 PLATE
66 6SLAB4-6 SCREW
67 6101-211301 WIRE
68 6120-211401 CARRY CASE (TB4516CC)
