15
PARTS LIST
14
MAINTENANCE INSTRUCTIONS
9.

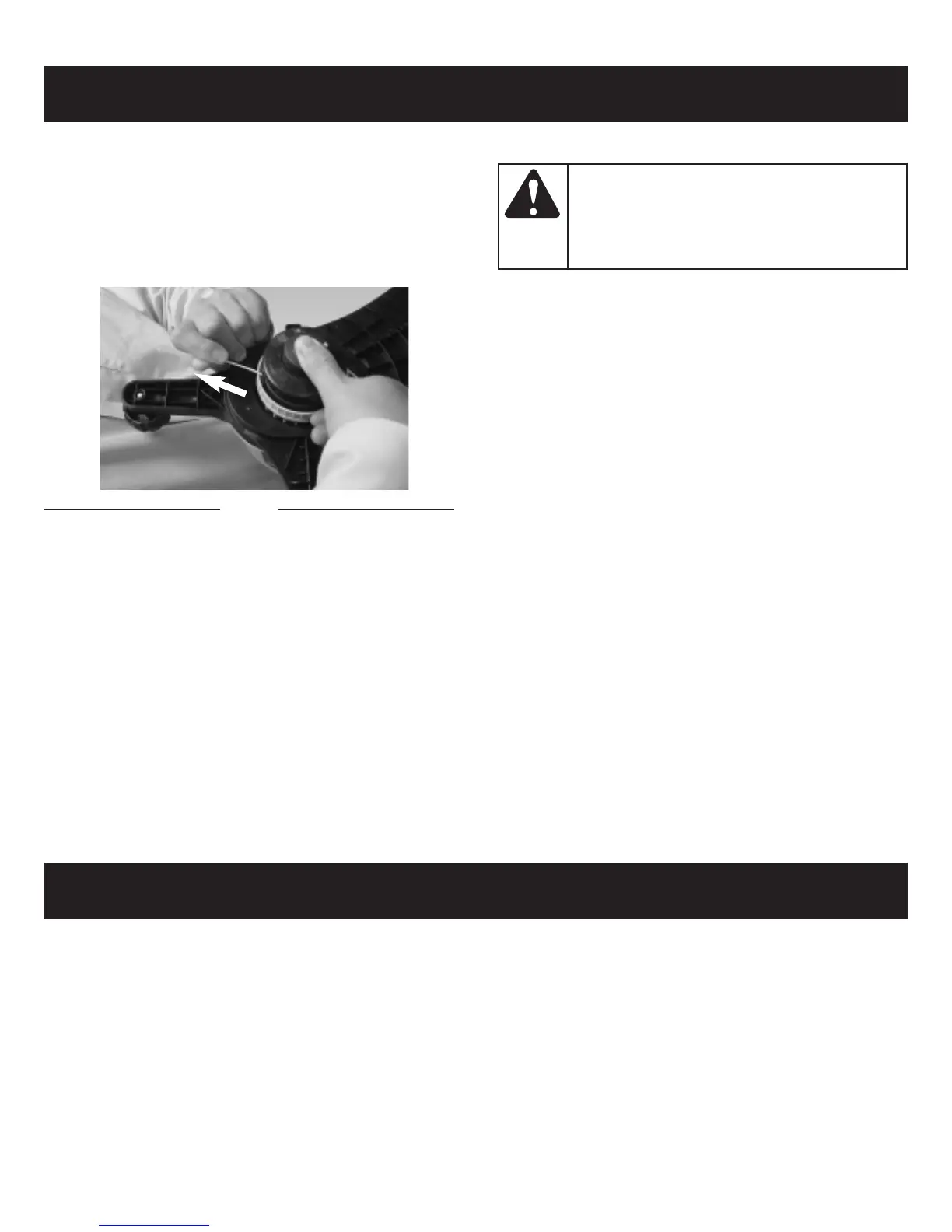

To test if the line is advancing properly, push the but-
ton with your thumb while pulling the line with your fin-
gers. The line should advance freely. (Fig. 30).
10. In the event of the line breaking inside the spool,
repeat the replacement oper
ation.
11. Start the grass trimmer following the instructions in
the “STARTING” section.
MAINTENANCE
1. Regular cleaning and maintenance of your string trim-
mer will ensure efficiency and prolong the life of your
machine.
2. After each cutting operation, take apart and clean out
the grass and soil from: the spool and its slot and in
particular the debris shield.
3. During operation, keep the air slots clean and free of
grass.
4. Only use a cloth soaked with hot water and a soft
brush to clean the string trimmer.
5. Do not spray or wet the appliance with water.
6. Do not use detergents or solvents as these could ruin
the trimmer. The parts made of plastic can easily be
damaged by chemical agents.
Fig. 30
Before carrying out
any maintenance
operations, cut off the electric power supply by
disconnecting the plug from the extension
cord.
CAUTION :
SPECIFICATIONS
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120V~, 60Hz, 4.5 Amp
No Load Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7,500/min
Cutting width
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15” (380mm)
Line diameter
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ø .065”
(1.65mm)
Net weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6.4 Lbs (2.9 Kg)
No. Parts No. Description No. Parts No. Description
1 6011-202A02 POWER CORD 28 6131-202A02 EXPANDING RING
2 6199-202A01 CORD GUARD 29 6SVABB04-10 SCREW
3 6043-202A01 PALTE (PRESSING CORD) 30 6SDABA03-16 SCREW
4 6SDABB04-14 SCREW 31 6041-840001 TERMINAL BLOCK
5 6022-202A01 SWITCH 32 6038-202A04 HOUSING (L)-MTD ROJO
6 6134-202A01 TRIGGER 33-1 6099-202B01 MOTOR
7 6024-202A01 SPRING 33-2 6187-202A01 FIX PLATE
8 6134-202A02 TRIGGER 33-3 6SADB-03-12 SCREW
9 6010-202A01 WIRE 33-4 6SADB-04-12 SCREW
10 6068-202A04 UPPER HANDGRIP (R)-MTD RED 33-5 6270-202003 WHEEL PLATE
11 6068-202A03 UPPER HANDGRIP (L)-MTD RED 34 6131-202A04 CUSHION RING
12 6056-202A03 BUTTON-Black 35 6114-202A02 EGDER GUIDE
13 6021-202A01 LEVER 36 6NBB-06 NUT
14 6024-202A02 SPRING 37 6043-815501 WASHER
15 6131-202A01 JOINT PIPE 38 6SXDB-06-20 SCREW
16 6129-202A01 CENTRAL TUBE 39 6115-202A01 SHAFT PIN
17 6SDABB04-06 SCREW 40 6137-202A01 WHEEL
18 6NGB-06 NUT 41 6NAB-05 NUT
19 6056-230302 KNOB 42 6RAE03-6.5 SCREW
20 6196-202601 ASSIST HANDLE 43 6250-202503 LINE CUTTING BLADE
21 6SHDB-06-52 SCREW 44 6262-202A02 SHIELD
22 6SDABB04-18 SCREW 45 6024-202A04 SPRING
23 6038-202A03 HOUSING (R)-MTD RED 46-1 6059-202004 BLISTER PACK
24 6059-202A01 JACKET 46-2 6008-202001A SPOOL CARRIER
25 6056-202A04 BUTTON-Black 46-3 6194-202001 TRIMMER LINE
26 6239-202A01 FIXED RING 46-4 6059-202005 SPOOL COVER
27 6024-202A03 SPIRNG 46-5 6RE-04-04 PILOT
