Troy-Bilt TB45E User Manual

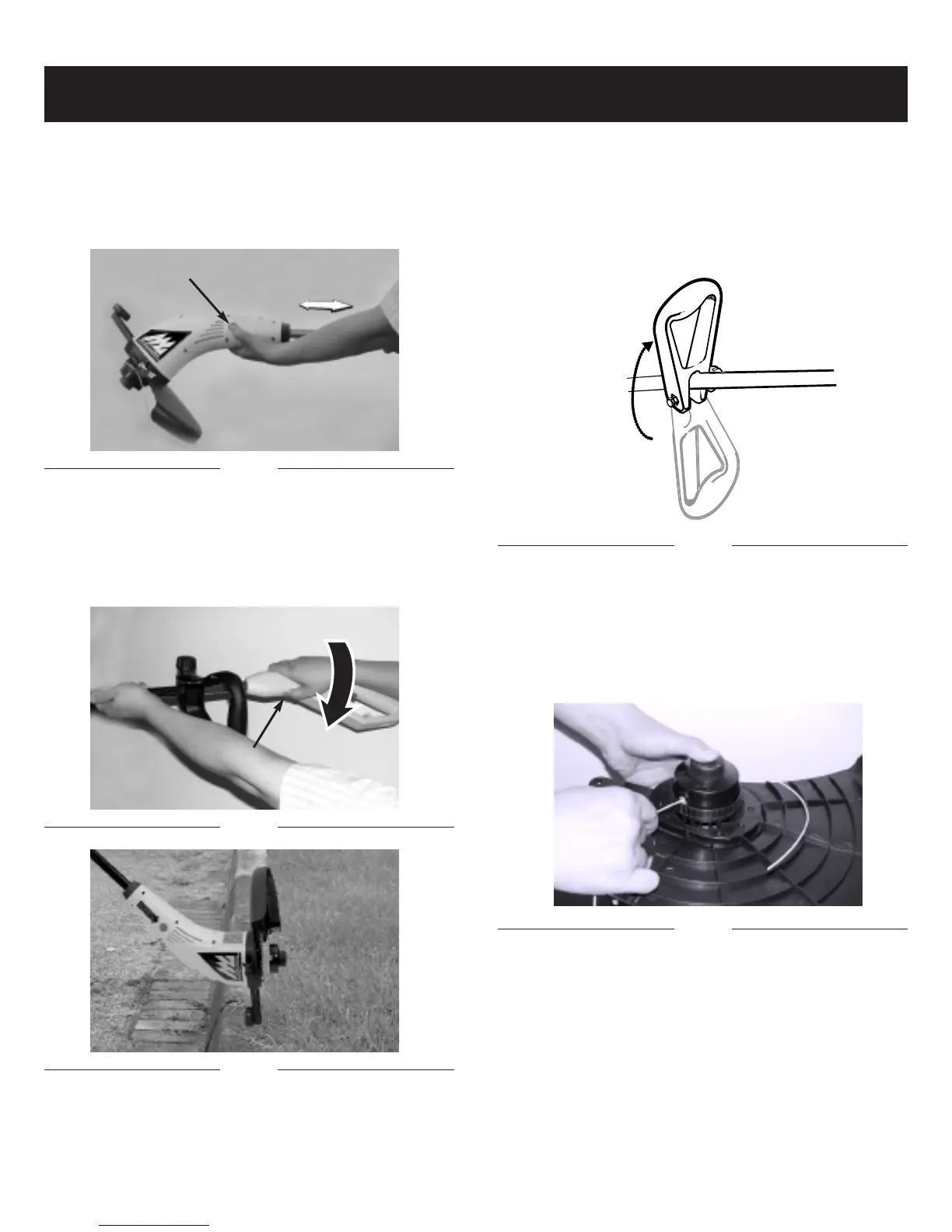

ADJUST SHAFT LENGTH
1. Grip shaft firmly.
2. Push shaft release button (A) and move motor hous-
ing forward or backward to desired length. (Fig. 5)
NOTE: Shaft may be adjusted in trimming or edging mode.
EDGING CONVERSION
1. Grip shaft firmly.
2. Push edge button (B) and rotate handle assembly
until an audible click is heard. (Fig. 6 & Fig. 7)
3. Adjust assist handle as required.
ADJUST THE ASSIST HANDLE
NO
TE:
The assist handle is attached to the shaft b
ut has
been turned under for packing
1. Loosen adjustment knob and rotate handle to the top
of shaft (Fig. 8).
2. Tighten adjustment knob securely.
STARTING
1. Before starting the grass-trimmer for the first time,
check that the nylon lines touch or pass over the line-
cutting blade. If they are not long enough, press the
bump knob and, at the same time, pull the nylon lines.
(Fig. 9).
2. Connect the correct extension cord to the string trim-
mer power cord per the instructions in Section 5-1
Connect the cord.
3.
Mak
e sure the length of g
rass trimmer and position of
assist handle is most comf
or
tab
le bef
ore use
, adjust
the length of grass trimmer by pressing the shaft
adjustment button, adjust the height of assist handle
b
y loosening the adjustment knob.
ADJUSTMENT INSTRUCTIONSASSEMBLY INSTRUCTIONS
NOTE: The only assembly required for your trimmer is to
install the debris shield and the assist handle.
EDGE GUIDE WHEEL INSTALLATION
1. Position the edge guide wheel (A) to the front of the
motor housing as shown in Fig. 1.
2. Tighten the wing nut (B) firmly. (Fig. 2)
DEBRIS SHIELD INSTALLATION
1. Position the motor housing with string head carrier
facing up. (Fig. 3)
2. Slide debris shield over motor housing.
3 Secure it with 4 screws (C). (Fig. 4)
8 9
Fig. 1
A
Fig. 2
Fig. 4
B
Fig. 3
C
C
Fig. 5
A
Fig. 6
Fig. 7
B
Fig. 8
Fig. 9
