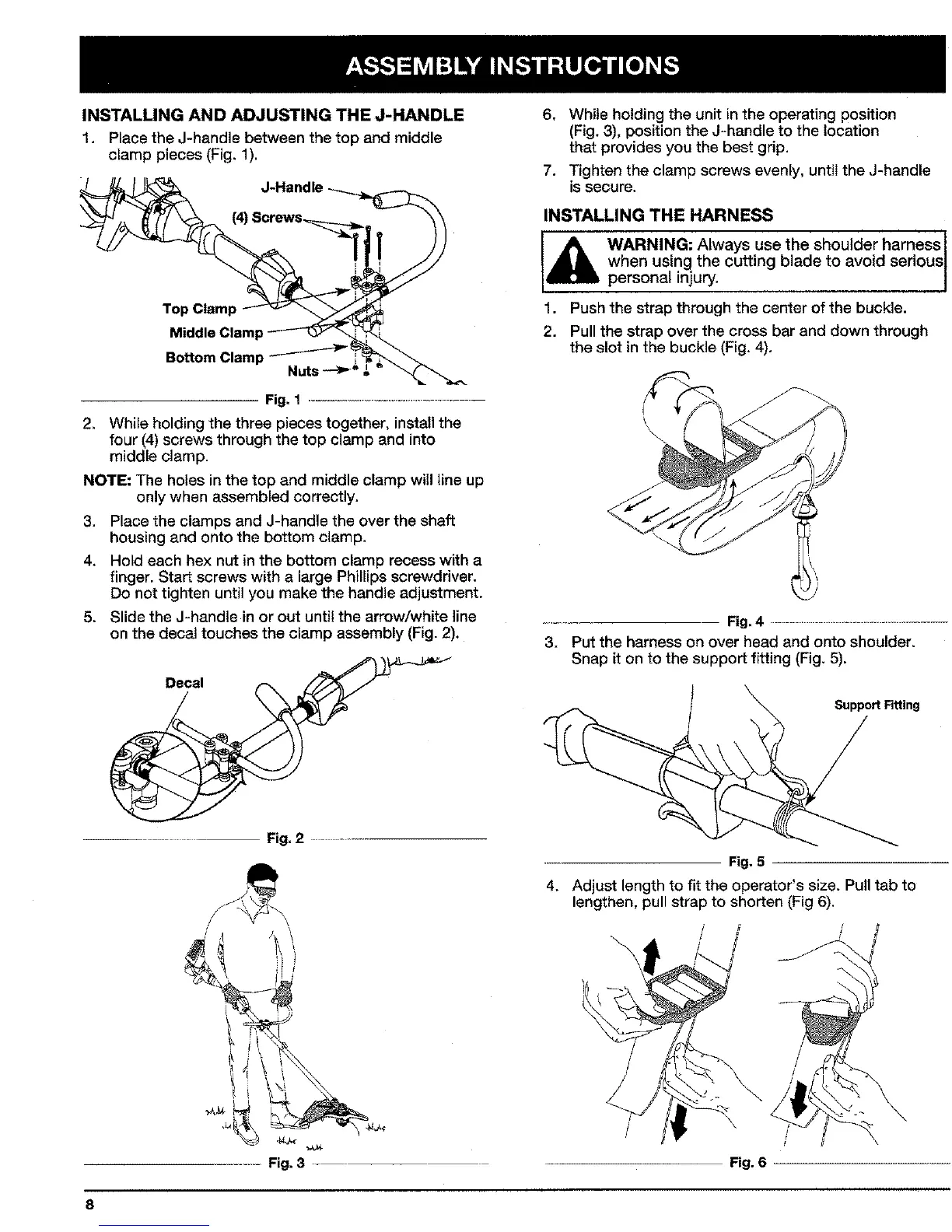

INSTALLINGANDADJUSTINGTHEJ-HANDLE
1. Place the J-handle between the top and middle
clamp pieces (Fig. 1).
J-Handle
(4)
Top Clamp
Middle Clamp
Bottom Clamp
Nuts
Fig, 1 .....................................
2. While holdingthe three pieces together, install the
four (4) screws through the top clamp and into
middle clamp.
NOTE: The holes in the top and middle clamp will tine up
only when assembled correctly.
3. Place the clamps and J-handle the over the shaft
housing and onto the bottom clamp.
4. Hold each hex nut in the bottom clamp recess with a
finger. Start screws with a large Phillips screwdriver.
Do not tighten until you make the handle adjustment.
5. Slide the J-handle in or out until the arrow/white line
on the decal touches the clamp assembly (Fig. 2).
\
S
Fig. 3
6, While holding the unit in the operating position
(Fig. 3), position the J-handle to the location
that provides you the best grip.
7. Tighten the clamp screws evenly, until the J-handle
is secure.
INSTALLING THE HARNESS
IA WARNING: Always use the shoulder harness
personalwhenus nginjury.thecutt ng bade to avo d ser cue
1. Push the strap through the center of the buckle.
2. Pull the strap over the cross bar and down through
the slot in the buckle (Fig. 4).
\
\
Fig,4 ................................
3. Put the harness on over head and onto shoulder.
Snap it on to the support fitting (Fig. 5).
Support Fitting
Fig, 5
4. Adjust length to fit the operator's size. Pull tab to
lengthen, pull strap to shorten (Fig 6).
#
\
Fig. 6
