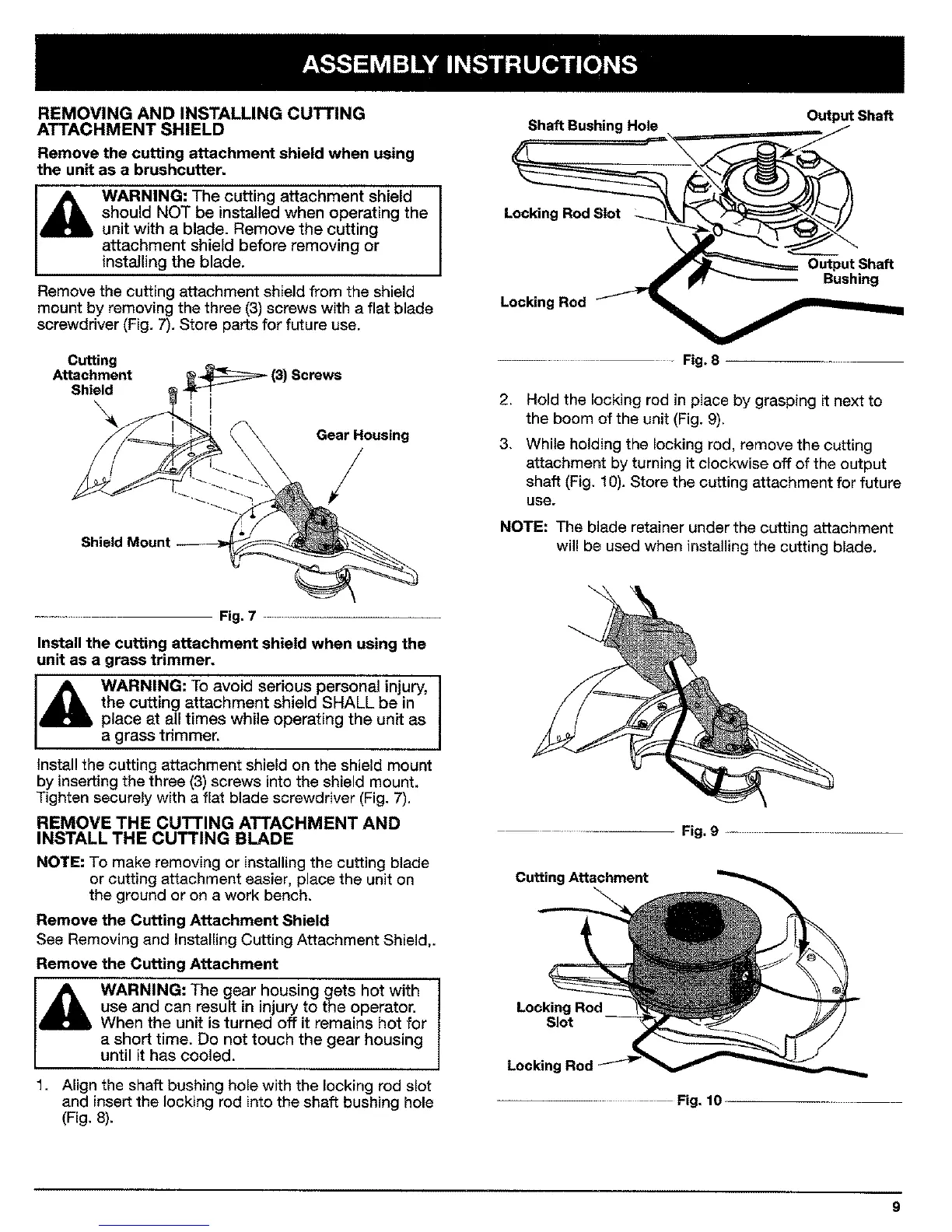

REMOVING AND INSTALLING CUTTING
ATTACHMENT SHIELD
Remove the cutting attachment shield when using
the unit as a brushcutter.
WARNING: The cutting attachment shield I
should NOT be installed when operating the
I
unit with a blade. Remove the cutting
attachment shield before removing or
installing the blade.
Remove the cutting attachment shield from the shield
mount by removing the three (3) screws with a flat blade
screwdriver (Fig. 7). Store parts for future use.
Cutting
Attachment
Shield
Screws
Gear Housing
Shield Mount
OutputShaft
j OutputSh
_ | Bushing
Locking Rod i _ _dl_m_mmm.__
........ Fig, 8
2. Hold the locking rod in place by grasping it next to
the boom of the unit (Fig. 9).
3, While holding the locking rod, remove the cutting
attachment by turning it clockwise off of the output
shaft (Fig. 10). Store the cutting attachment for future
use.
NOTE: The blade retainer under the cutting attachment
wil! be used when installing the cutting blade.
............ Fig. 7
Install the cutting attachment shield when using the
unit as a grass trimmer.
WARNING: To avoid serious personal injury,
the cutting attachment shield SHALL be in
place at all times while operating the unit as
a grass trimmer.
Install the cutting attachment shield on the shield mount
by inserting the three (3) screws into the shield mount.
Tighten securely with a flat blade screwdriver (Fig. 7).
REMOVE THE CUTTING ATTACHMENT AND
INSTALL THE CUTTING BLADE
NOTE: To make removing or installing the cutting blade
or cutting attachment easier, place the unit on
the ground or on a work bench.
Remove the Cutting Attachment Shield
See Removing and Installing Cutting Attachment Shield,.
Remove the Cutting Attachment
WARNING: The gear housing gets hot with
use and can result in injury to the operator.
r
When the unit is turned off it remains hot for
a short time. Do not touch the gear housing
until it has cooled.
1. Align the shaft bushing hole with the locking rod slot
and insert the locking rod into the shaft bushing hole
(Fig. 8).
Cutting Attachment
Fig. g .......
Locking Rod
Slot
Locking Rod
....... Fig. 10
9
