AIS CTRX GRAPHENE Class B AIS Transponder Manual
1.4E 22 CTRX GRAPHENE Manual

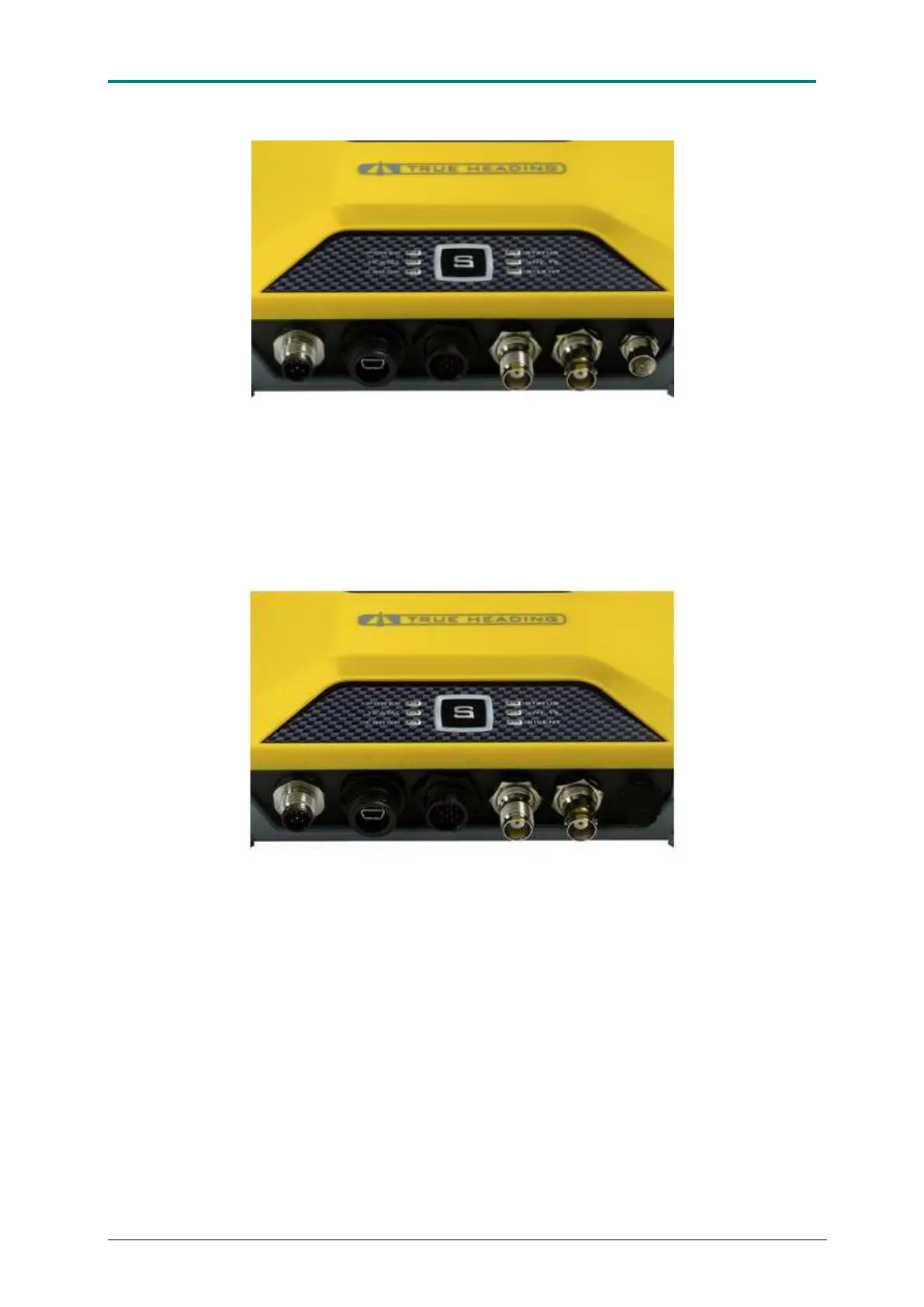

Figure 7. CTRX Graphene+: From L to R: NMEA2000 connector, USB-mini connector, Data/DC
circular connector, GPS antenna (TNC), VHF antenna (BNC) and VHF radio (FME).
Figure 7. CTRX Graphene: From L to R: NMEA2000 connector, USB-mini connector, Data/DC
circular connector, GPS antenna (TNC), VHF antenna (BNC).
After installation of the antennas the AIS CTRX GRAPHENE should be connected to
the application where the AIS data from the transponder will be used. AIS CTRX
GRAPHENE has three data ports, 1 NMEA2000, 1 USB and 1 NMEA 0183 to
choose from.
