AIS CTRX GRAPHENE Class B AIS Transponder Manual
1.4E 23 CTRX GRAPHENE Manual

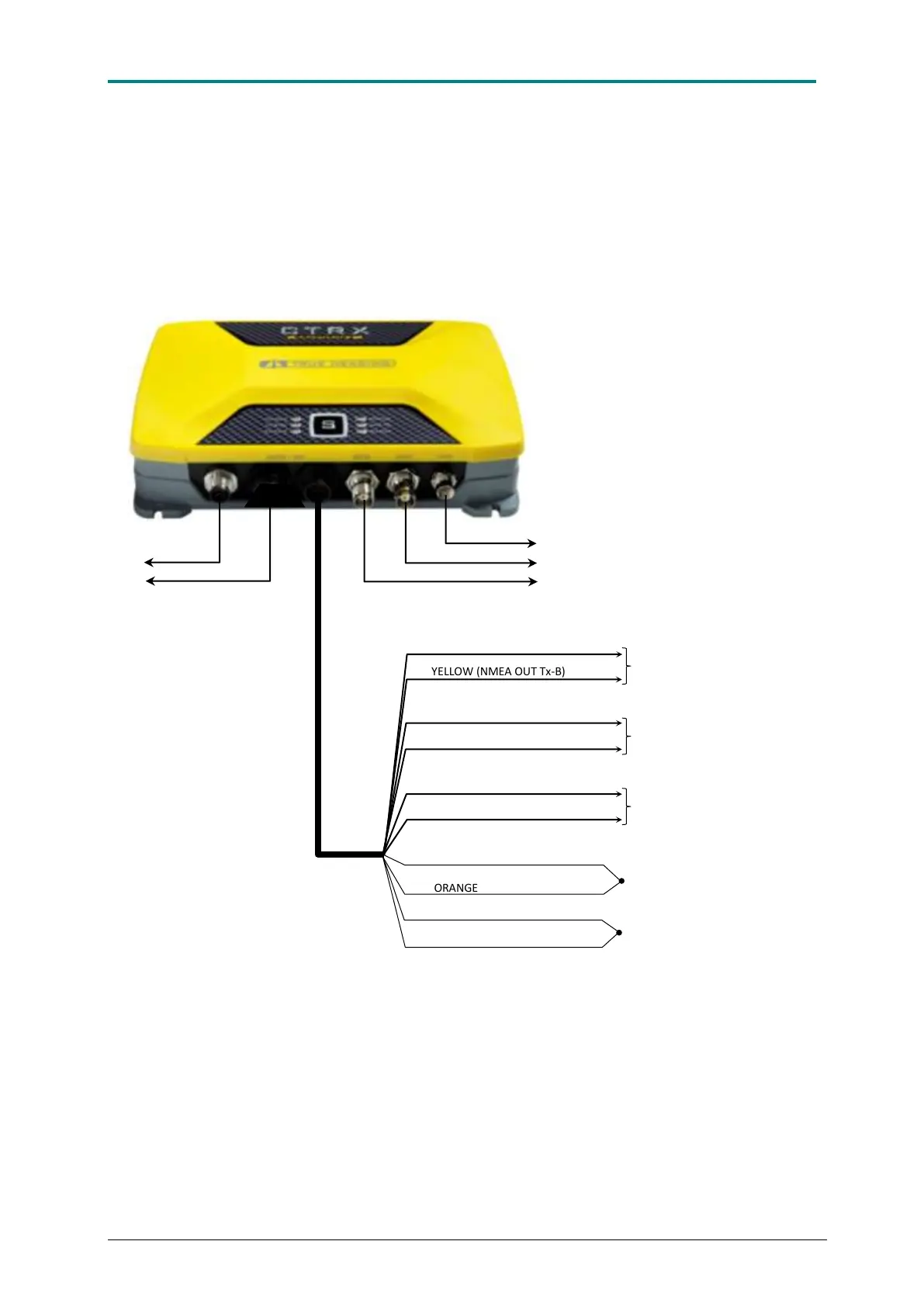

CONNECTION, GENERAL OVERVIEW
9-32 VDC Power supply
YELLOW (NMEA OUT Tx-B)
GREY (NMEA OUT Tx-A)
RED
0V DC
ORANGE
VHF antenna (BNC)
GPS antenna (TNC)
USB to computer
NMEA2000*
BLACK
BLUE
GREEN
PURPLE
GREEN
WHITE
To external Silent button
To external LED for Silent button
DC/Data cable
To VHF radio (Graphene+ only)
To NMEA0183 nav display, e.g. plotter
