CONNECTION TO AN NMEA2000 NETWORK

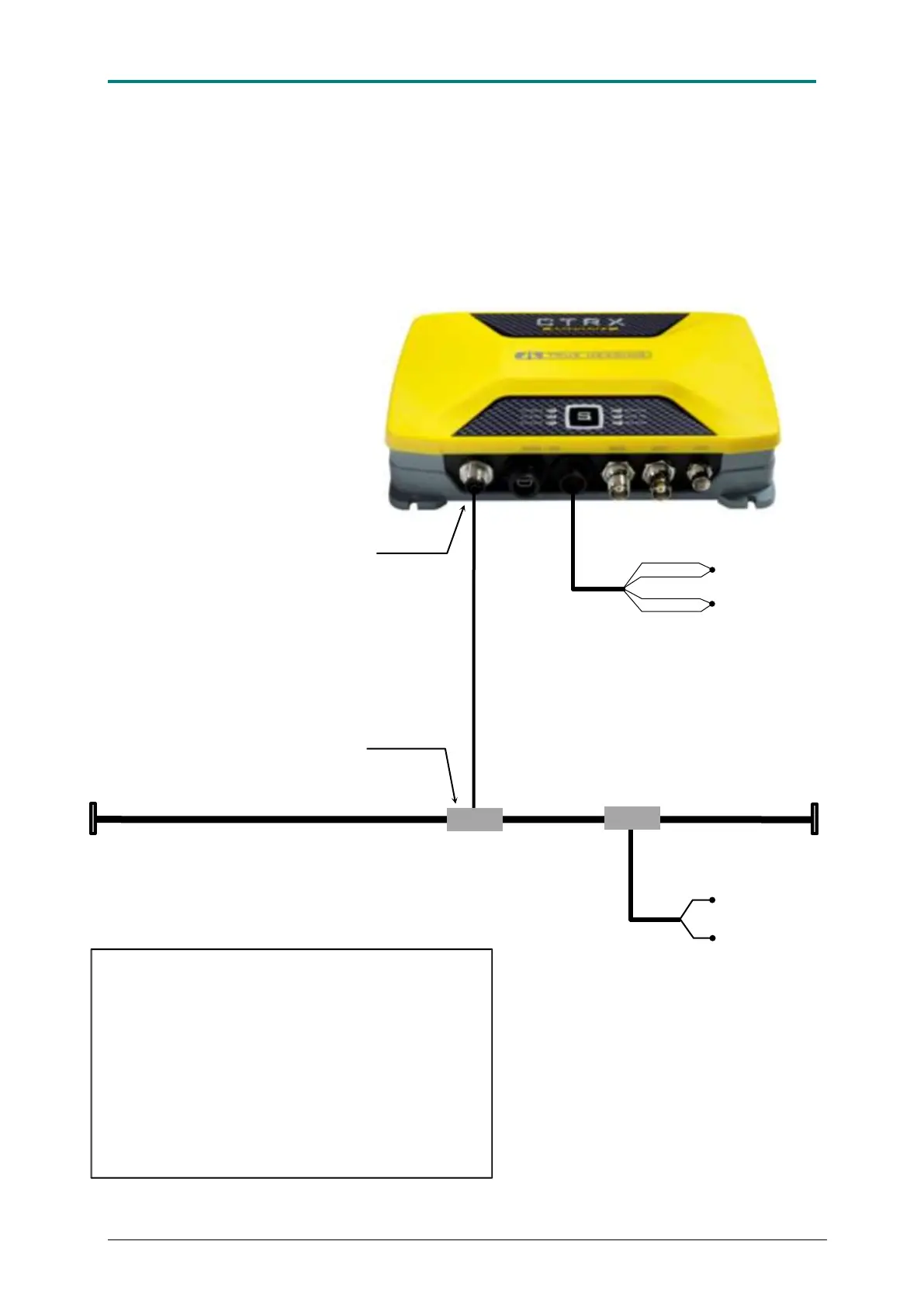

The picture shows the CTRX Graphene+
NMEA2000*
Connection
NMEA2000 T-connection
NMEA2000 Backbone
NMEA2000 Drop cable
Must not be longer than 6m
NMEA2000
End resistor
120 Ohm
9-16 VDC (+)
0 VDC (-)
NMEA2000
Power Tap
9-32 VDC (+)
RED
0 VDC (-)
ORANGE
BLACK
BLUE
NMEA2000
End resistor
120 Ohm
NOTE: The transponder must be connected to an
external power source when connected to an
NMEA2000 network. Even though some
NMEA2000 devices can operate on the bus
power, the transponder current consumption is
higher than the maximum allowed and
subsequently must use external power.
LEN=1 (LEN= Load Equivalence Number)
