True Heading AIS CTRX GRAPHENE - Connection of an external Silent switch with LED indicator

AIS CTRX GRAPHENE Class B AIS Transponder Manual
1.4E 27 CTRX GRAPHENE Manual

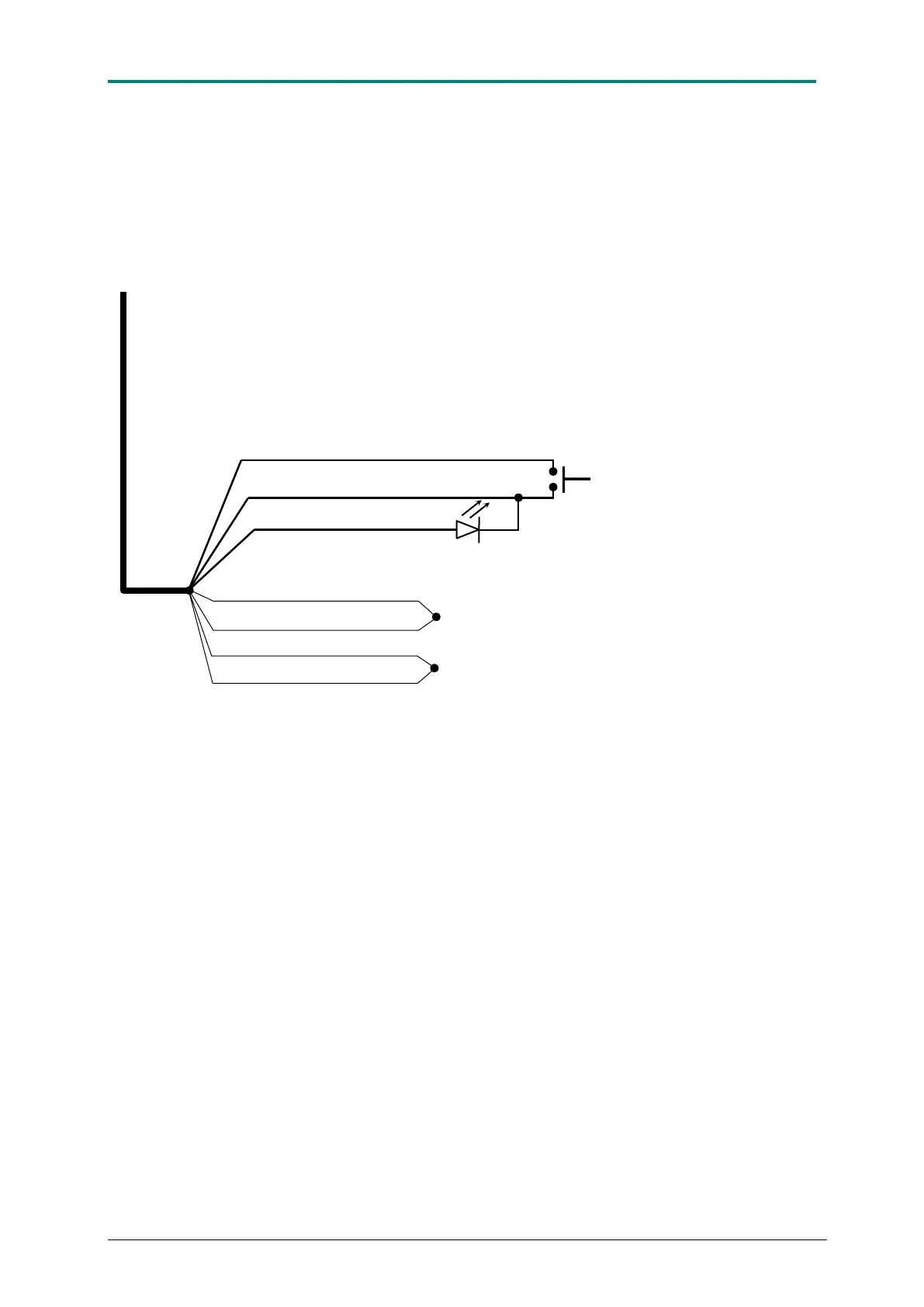

Connection of an external Silent switch with LED indicator
WHITE
RED
ORANGE
BLACK
BLUE
9-32 VDC
0 VDC
PURPLE
GREEN
Single pole, pushbutton switch
DC/DATA Cable
LED (blue color recommended)
