AIS CTRX GRAPHENE Class B AIS Transponder Manual
1.4E 35 CTRX GRAPHENE Manual
The last page in proAIS is Serial data. This window offers the more experienced
installer a valuable tool to monitor the data output from the transponder. Data is
output in NMEA0183 format. Received data will appear as !AIVDM strings,
transmitted data as !AIVDO and GPS data as $GPRMC. The field Enter commands
below is used for input data to the transponder. This field is only used for
diagnostics, service functions etc.
The data shown in the window can be logged and recorded in file format for later
recovery and analysis.

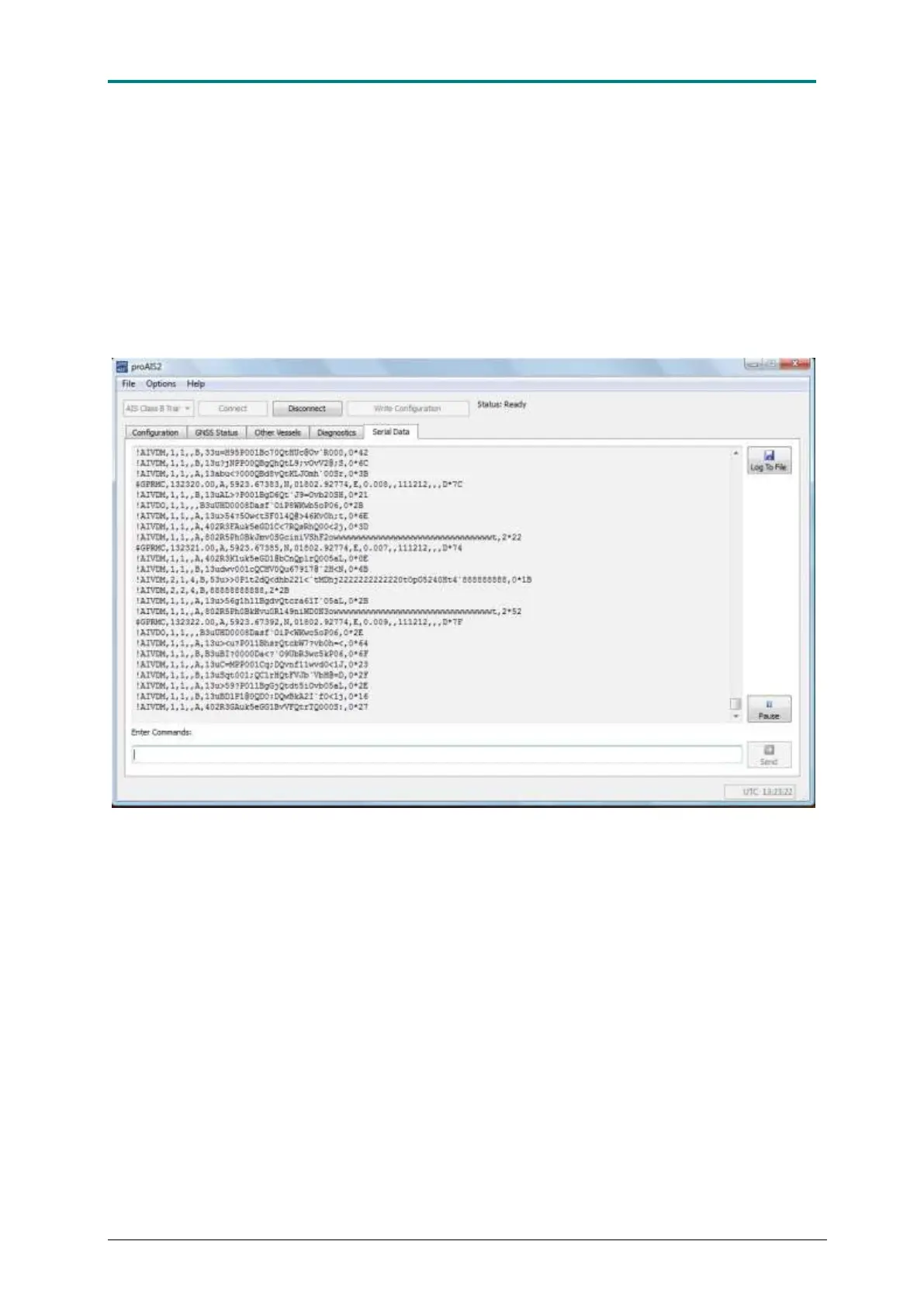

Figure 19 In the field Serial data the data the transponder transmits is displayed on its port and from this data,
important information can show that the transponder functions correctly.
