26

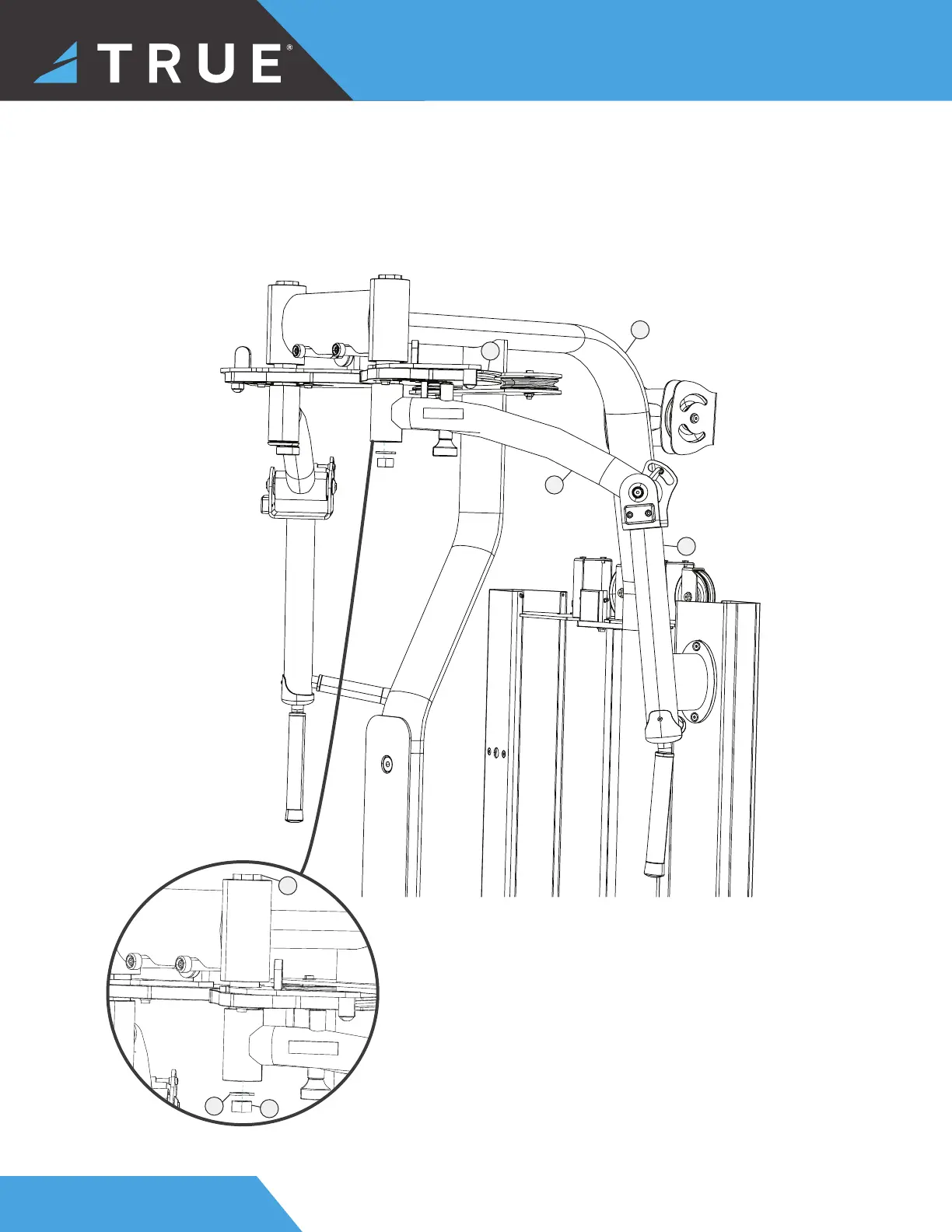

j. Using a 30mm or 1" 3/16 socket, attach the pulley cam and arm to the main frame assembly using the 1 hex nut and
1 fl at washer you removed previously. Use an adjustable wrench with a 41mm or 1" 5/8 opening to hold the axle in
place while reattaching the hardware.
NOTE: Do not overtighten while reattaching the hex nut and fl at washer. The arm still needs to be able to swing when
adjusted into place.
STEP 2—ROUTE CABLE THROUGH UPRIGHT AND MAIN FRAME ASSEMBLIES CONTINUED
2
3
4
5
19
17
18
