25
STEP 2—ROUTE CABLE THROUGH UPRIGHT AND MAIN FRAME ASSEMBLIES CONTINUED
g. Using wire cutters, carefully remove the cable tie.
IMPORTANT! DO NOT accidentally cut the cable.

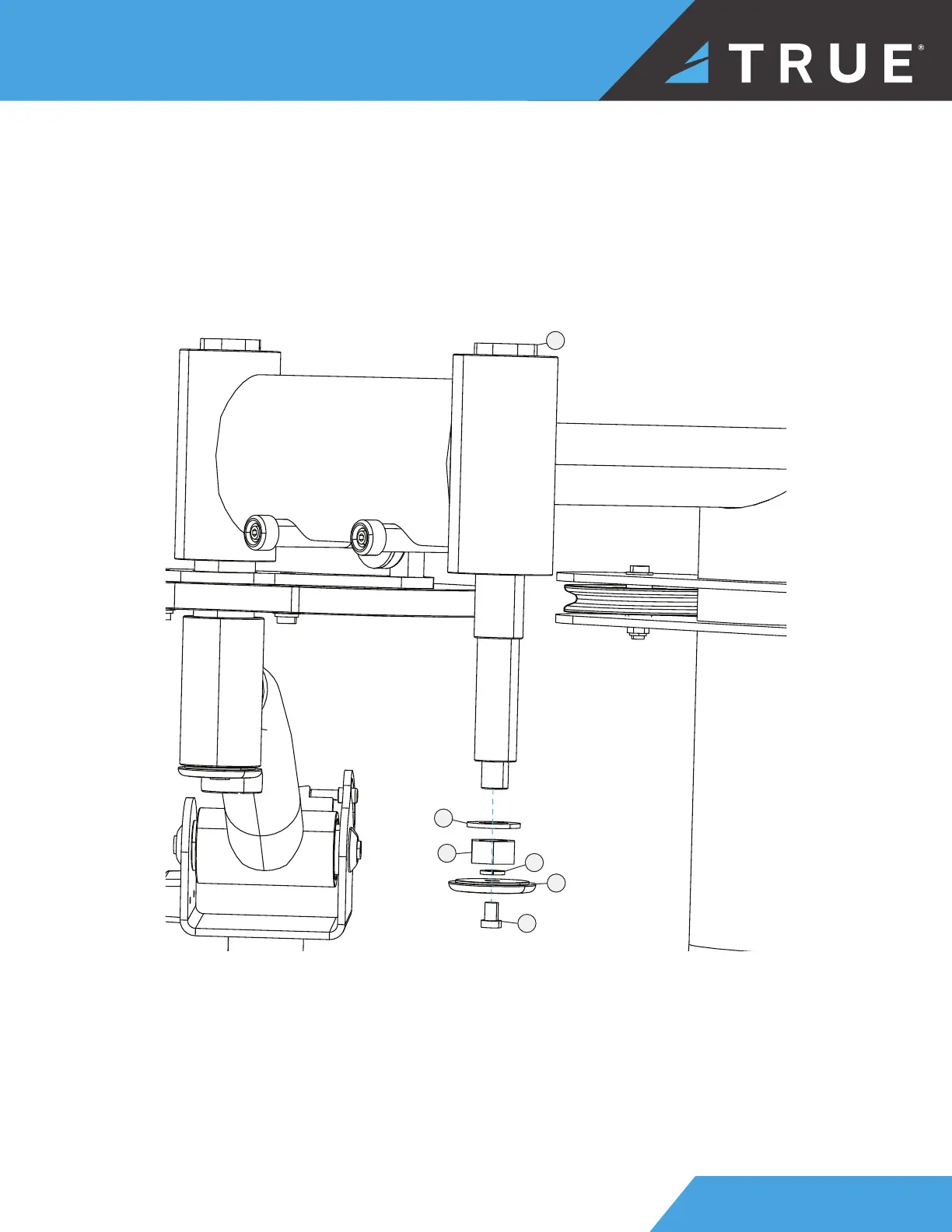

h. Using an allen wrench, remove and set aside the 1 cap, 1 hex screw, and 1 lock washer from the main frame
assembly.
i. Using a 30mm or 1" 3/16 socket, remove the 1 hex nut and 1 fl at washer needed to fasten the pulley cam and arm.
Use an adjustable wrench with a 41mm or 1" 5/8 opening to hold the axle in place while removing the hardware.
19
15
16
13
17
18
To Next Page
