29

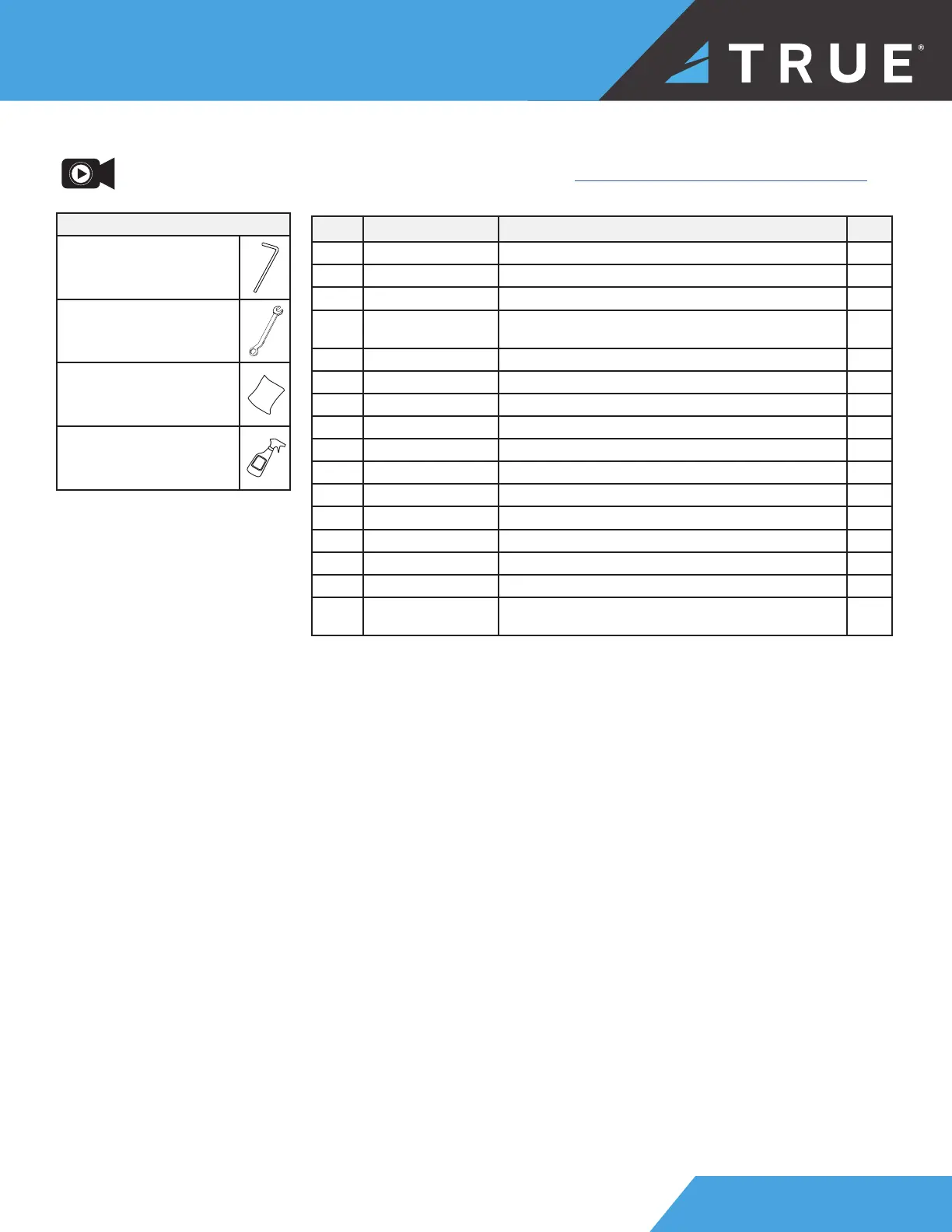

STEP 3—ATTACH WEIGHT STACK TO UPRIGHT ASSEMBLY
ITEM PART DESCRIPTION QTY
1 SPL-10-UPR200X UPRIGHT ASSEMBLY 1
2 SPL-00-GRB001 BRACE, GUIDE ROD 1
3* SPLBX15* SUBASSEMBLY, SPL WEIGHT PLATES 4X15LB 4*
4 SPL-00-TPL300X
SPL-00-TPL200X
SUBASSEMBLY, TOP WEIGHT - GENERATION 2
SUBASSEMBLY, TOP WEIGHT - GENERATION 1
1
5 SPL-00-GRD101X GUIDE ROD ASSEMBLY 2
6* SPL-00-WBR002* WEIGHT STACK BUMPER 6*
7 SPL-00-PIN030X SUBASSEMBLY, SELECTORY PIN 1
8 SPL-10-CBL100X SUBASSEMBLY, CABLE, UPRIGHT, SPL1000 1
9 D1261 CABLE BOLT FTG, 1/2-13 X 1-3/4” 1
10 C1256 LPSHCS, 3/8”-16 X 1” E-COAT 2
11 C 749B LOCK WASHER, 3/8”, BLK ZP 2
12 C 754B WASHER, FLAT, 3/8” SAE, BLK 2
13 C 603A SHCS, 10-32, 1/2" BLK 1
14 C 900B LOCK WASHER, #10 MED SPLIT, BLK 1
15 C 900A WASHER, FLAT, #10 USS, ZP (.0028#) 1
16 LBL-WS-SPL310 LABEL, SPL WEIGHT STACK LABEL 310LBS 20
PLATE
1
*Weight stack and bumper quantities are dependent on the weight confi guration that
was ordered.
TOOLS NEEDED
Allen Wrench
Wrench
Cloth
Lubricant
PT
F
E
L
U
B
R
I
C
A
N
T
NOTE: Supplemental weight stack video available on vimeo.com: https://vimeo.com/773978716?share=copy.
