42
ITEM PART DESCRIPTION QTY
1 SPL-10-MFR000X MAIN FRAME ASSEMBLY 1
2 SPL10PDKT PAD KIT, PEC FLY REAR DELT 1
3 C 631A SHCS, 3/8"-16 X 3" BLK 2
4 C 749B LOCK WASHER, 3/8”, BLK ZP 6
5 C1257 LPSHCS, 3/8”-16 X 1-1/4” E-COAT 2
6 C 754B WASHER, FLAT, 3/8” SAE, BLK 4

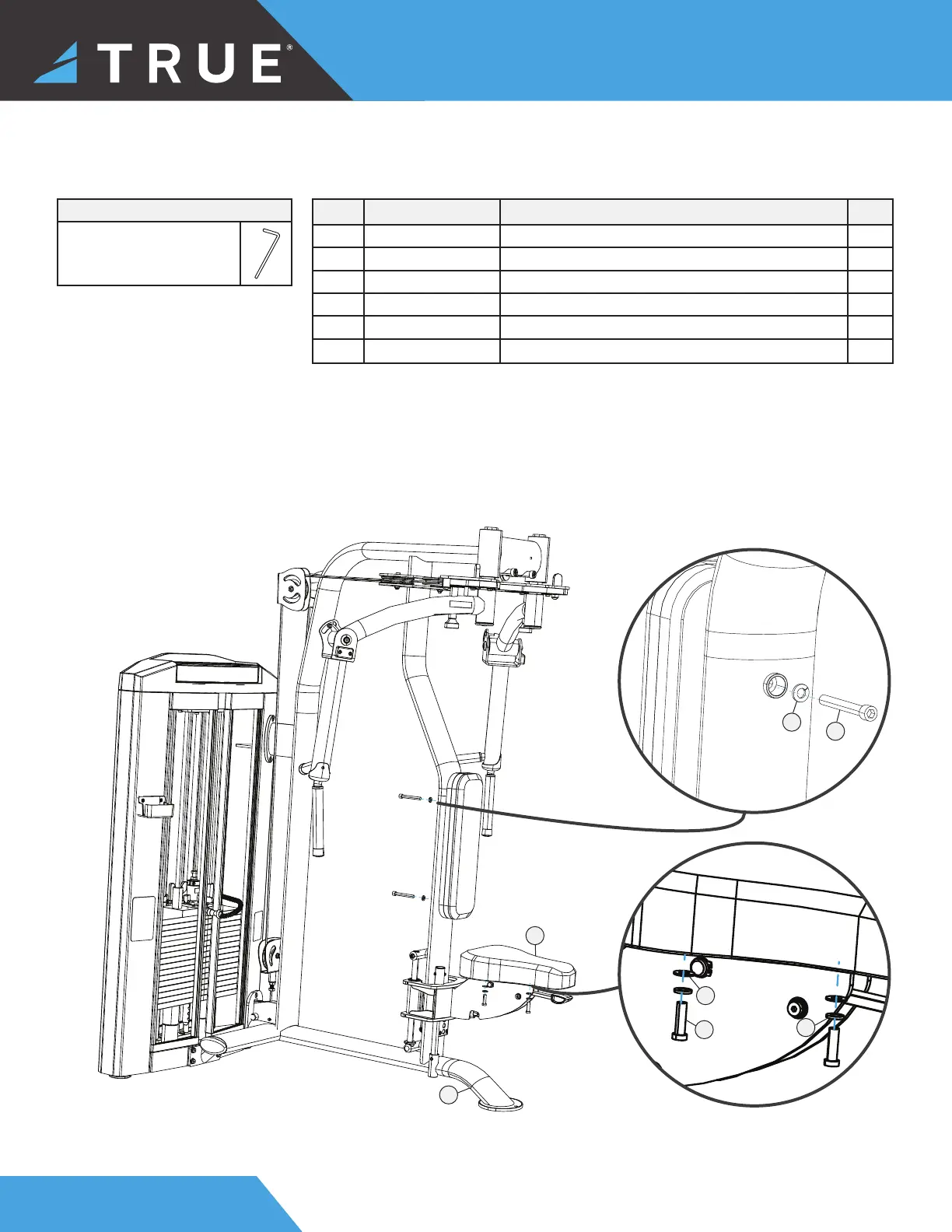

STEP 7—ATTACH PADS TO MAIN FRAME ASSEMBLY
a. Using an allen wrench, attach the back pad to the main frame assembly using 2 hex screws and 2 lock washers.
b. Using an allen wrench, attach the seat pad to the main frame assembly using 4 hex screws, 4 lock washers. and 4 fl at
washers.
TOOL NEEDED
Allen Wrench
1
2
3
5
6
4
4
To Next Page
