CABLE FITTING ATTACHMENTS (IF APPLICABLE)
Depending upon the machine, cable end fi ttings can either be securely fi xed, rotate about a single axis, or can be free
fl oating. On machines where the cable fi tting is designed to rotate about a single axis, verify that the fi tting rotates freely
and that the hardware used to secure the cable pivot axle (most likely a pin or a bolt) is correctly fastened.
!
CAUTION: When tightening hardware for cable fi ttings that are designed to rotate, make sure not to overtighten as to
cause the cable fi tting to bind. An occasional application of synthetic grease can be applied to the cable fi tting pivot axle.

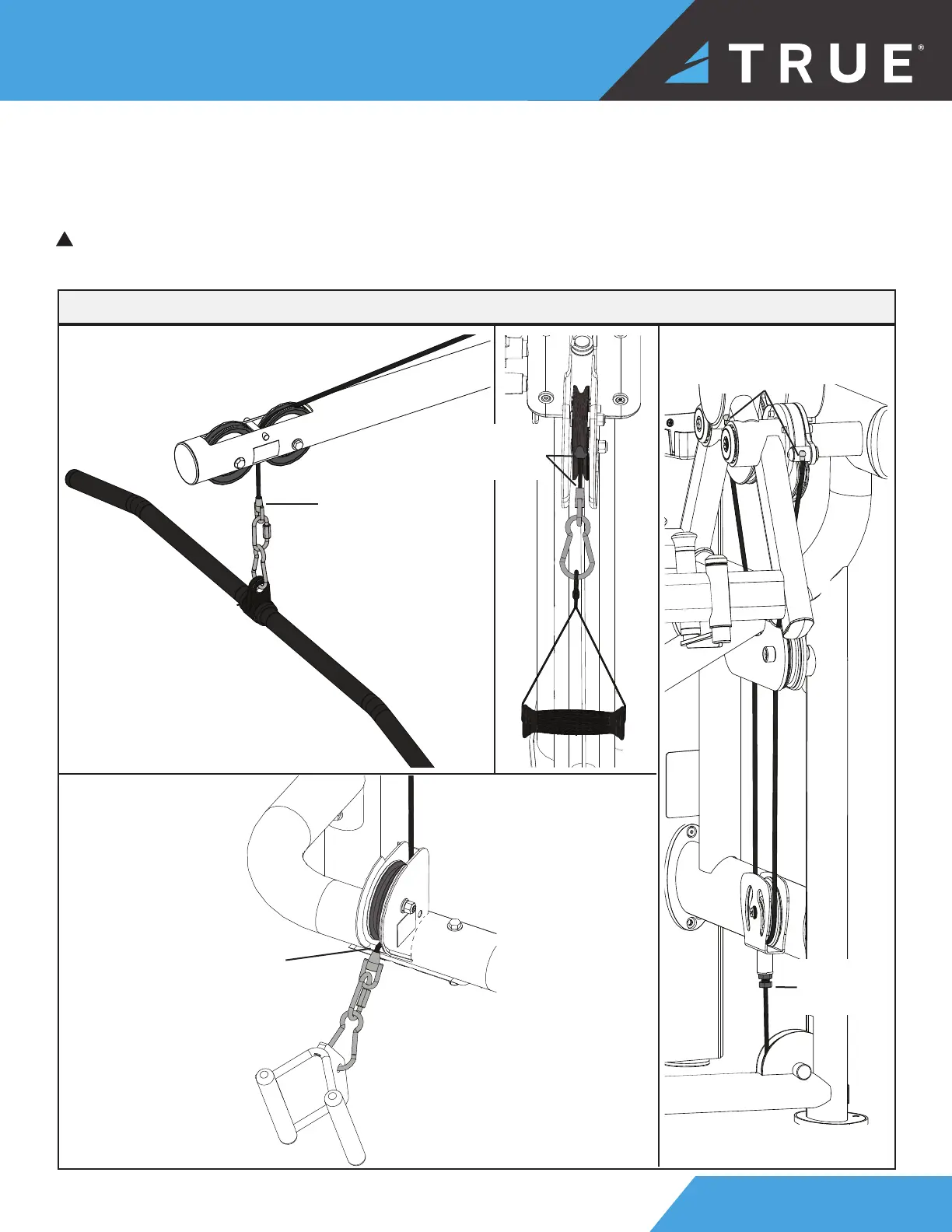

Examples of Cable Fitting Attachments
check
attachment
points
check
attachment
points
check
attachment
points
check
attachment
points
check
attachment
points
