INSTALLATION / OPERATION INSTRUCTIONS
ALL OTHER UNITS.
Defrost System!



REQUIRED TOOLS:
• Phillips Screwdriver
• 1/4” Nut Driver or Socket
Locating The Defrost Timer:


Two Door Models:
Defrost timer is located in the middle of the
cabinet, behind the louvered grill. Timer is
mounted to the left of the centered ballast
box (Inside of gray timer box).
Three Door Models:
Defrost timer is located on the left upright
post behind the louvered grill (Inside of gray
timer box).
Setting the timer:
(UNPLUG UNIT FROM
POWER SUPPLY!)
DO NOT SET THE TIME BY
ROTATING THE “OUTER” DIAL.




The following procedure may be followed to
customize your needs.
STEP 1





NOTE
TRUE recommends a minimum 30 minute (2
tabs) defrost cycle three times per day.
(Except T-19F/19FZ/23F).
FREEZERS DEFROST TIME CLOCK OPERATION
Inner most dial.
Time of day.
Outer most dial.
White tabs represent
15 minutes of defrost
time.

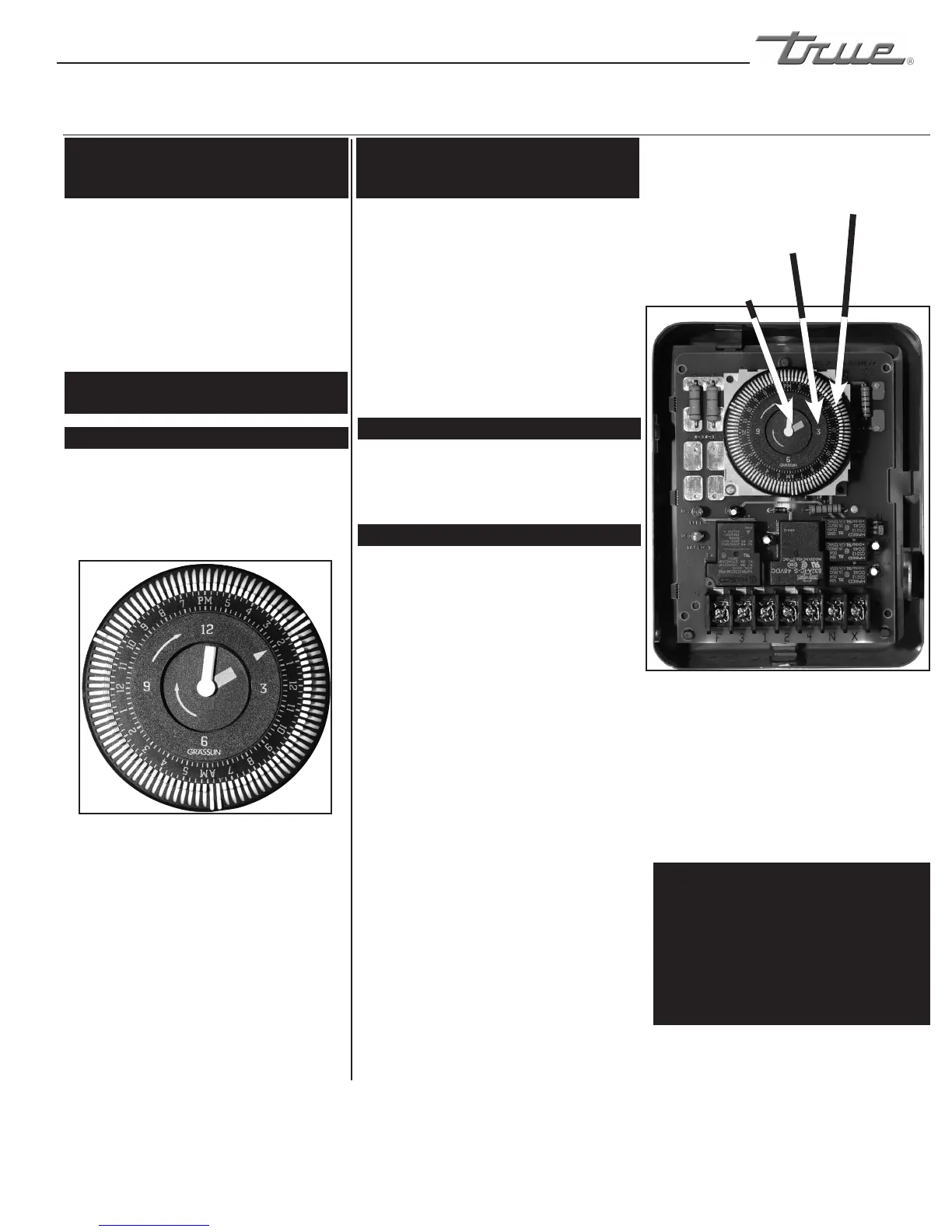

Defrost Timer Box Image 1
All models except T-19F, T-19FZ, T-23F.
WARNING:
High usage, high temperature, and
high humidity may require additional
defrost settings per day. Once clock
is set & grill is correctly reinstalled
cabinet can be plugged in.
T-19F, T-19FZ, T-23F
Defrost System!



REQUIRED TOOLS:
 
 
Locating The Defrost Timer:

* T-23F-2 / T-23DT Grill must be reattached
correctly for proper operation.
Single Door Models:
Defrost timer is located in the lower right corner
behind the louvered grill (inside galvanized
electrical box).
Factory setting 2 am, 8 am, 2 pm, 8 pm. 15
minutes in length. TRUE recommends maximum
15 minute defrost cycles & minimum 4 defrost
periods per day.
Setting the timer:
(UNPLUG UNIT FROM
POWER SUPPLY!)
DO NOT SET THE TIME BY
ROTATING THE “OUTER” DIAL.



The following procedure may be followed to
customize your needs.
STEP 1




Outer most dial. White tabs represent 15 minutes of
defrost time.








True T-23 Specifications

General

Manufacturer	True Manufacturing
Model	T-23
Category	Refrigerator
Capacity	23 cubic feet
Exterior Material	Stainless Steel
Number of Doors	1
Refrigerant	R290
Voltage	115V
Shelves	3 adjustable shelves
Temperature Range	33°F to 38°F
Interior Material	Aluminum interior with stainless steel floor
Door Type	Solid Swing Door
