INSTALLATION / OPERATION INSTRUCTIONS
Rail End
Lower Rail
Assembly
Snug Fit
Here
Leveling Shim
CastorLeg
Bearing
Race
Lower Rail Assembly
Snug Fit
Here
Rail End
Thread castor into the underside of
cabinet frame rail.
Thread leg into cabinet bottom
frame rail.
The end of the leg is adjustable
to easy leveling.
Use the tool provided to tighten
the castor into place.
For leveling, insert the shim
between the castor and frame rail.
1
2
3
4
5

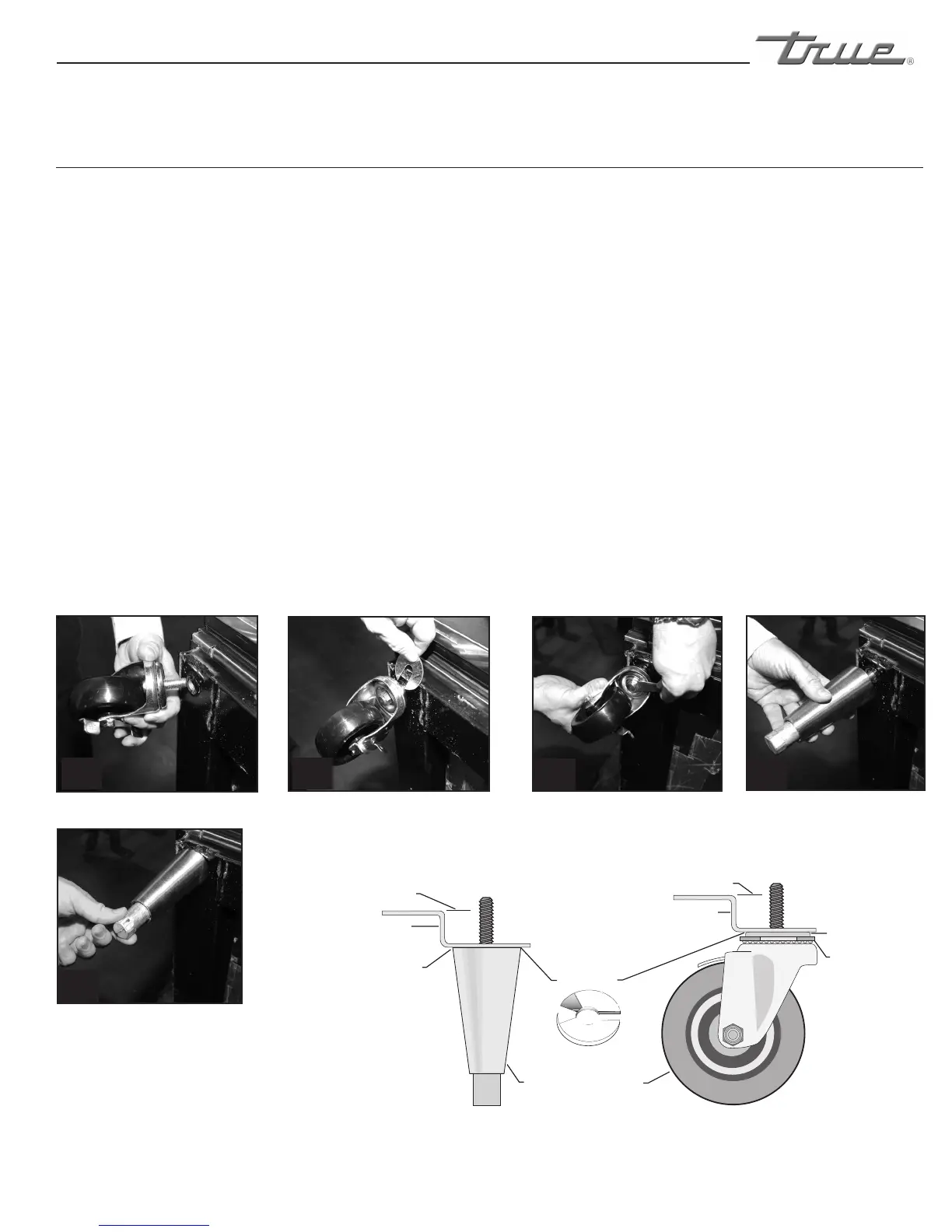

INSTALLATION OF CASTORS OR OPTIONAL LEGS
Important Safeguard for installation of leg/castor (Images 1-5 demonstrate procedure)
Securing Castors and Legs
Unit leveling
A.
B.
C.
D.
CAUTION
To avoid damage to lower rail assembly, slowly raise unit to
upright position.
NOTE
Open holes located on the cross members of the frame rail
should be plugged before unit is in use.
