trcb – chef base equipment
www.truemfg.com
TEC_RM_006 REV. A 09/21/2018 Page 6 of 27
INSTALLATION OF CASTORS OR
OPTIONAL LEGS

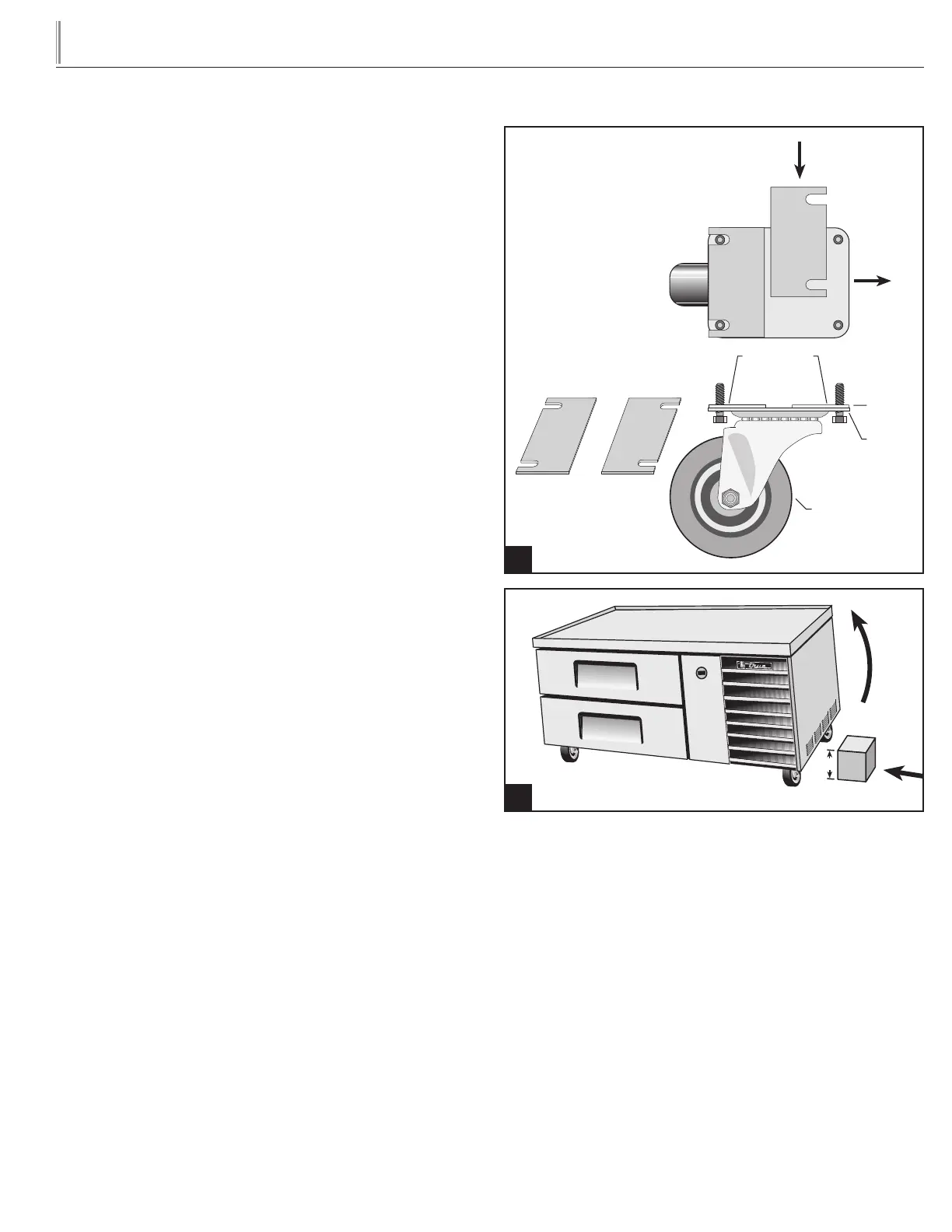

Important safeguard for installation of leg/castor. Images 1 & 2
demonstrate procedure.
LEVELING CASTORS
Four sets of shims have been provided in warranty packet for leveling
castored units positioned on uneven floors. Shims must be positioned
between cabinet and castor mounting plate. See image 1.
If the cabinet is not level prop up one end of the cabinet between
castors with a 6" block. See image 2.
NOTE: Do not push block more than 5" under cabinet.
Loosen castor bolts with an adjustable wrench enough to slide shims
between the castor mounting plate and cabinet bottom.
Install the desired number of shims (in pairs as shown in image 1),
making sure the slots in the shim are in contact with the castor
mounting bolts.
Tighten and secure the shims and castor(s). Remove 6" block and
check to determine if cabinet is level. Repeat process until cabinet
is level.
Ensure that the drain hose or hoses are positioned in the pan.
Leveling Shims
Castor
Snug Fit
Here
Leveling Shims
Side View
Top View
Left Shim
In Position
Castor
Mounting
Plate
1
F°
35°
6”
2
