DuoControl CS installation and
connection

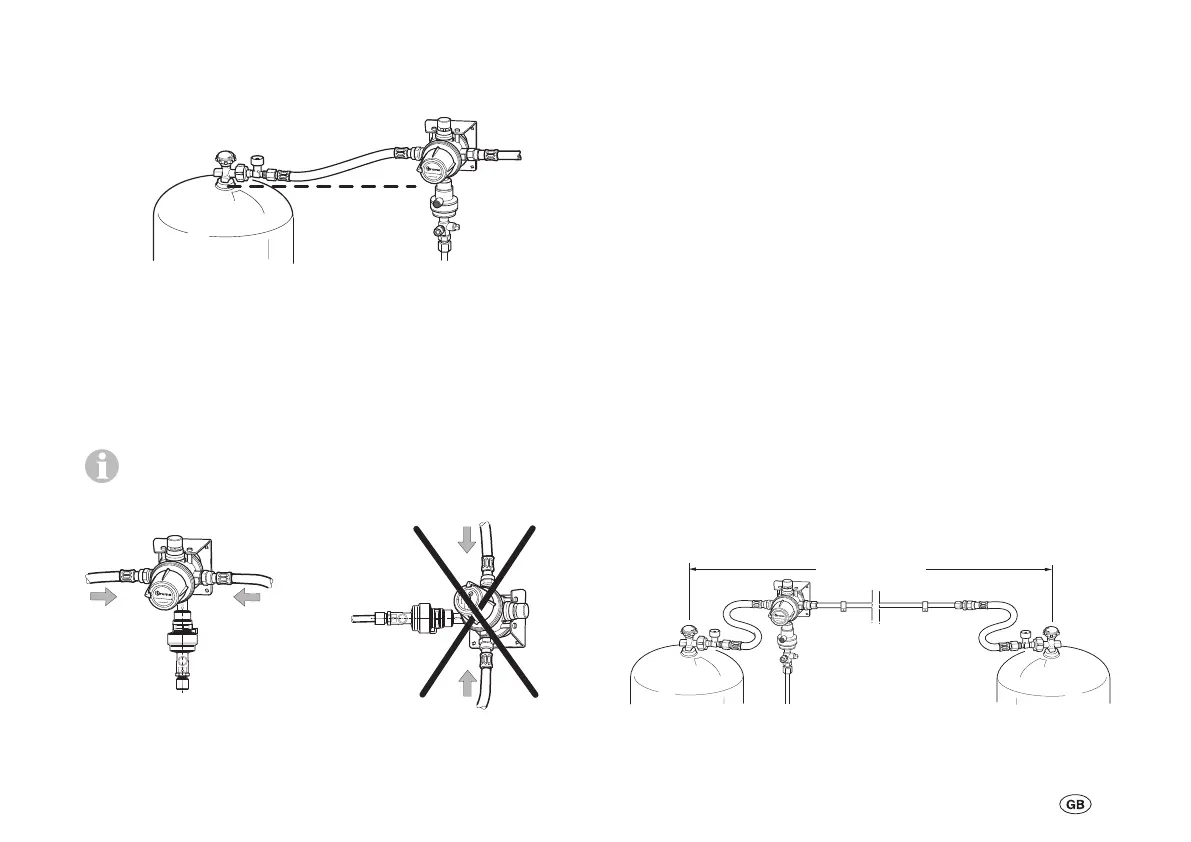

The DuoControl CS must be installed in such a way that the
high-pressure hose connections are in the highest possible
location, which must be at least higher than the cylinder valve
level (broken line).
The high-pressure hoses must slope downwards all the way
to the cylinder valve.
Installation above the cylinder valves makes it more
difficult for gas in the liquid phase to penetrate the gas
pressure regulation system, particularly while driving.
The DuoControl CS must always be installed in such a way
that the high-pressure hose connections are arranged in a
horizontal position.
The DuoControl CS is connected to the high-pressure line via
a male thread M20 x 1.5 (G.13) at the inlet side, and to the
gas pipe via an olive screw connection (8 or 10 mm) at the
outlet side.
With 30 mbar systems with 8 mm gas pipes, the enclosed
Z 10 / RVS 8 adapter (for trade only) must be used.
When it is being used outdoors, the DuoControl CS must be
protected from the elements with a protection hood.
Choose a suitable position for the DuoControl CS, in particular:
– Type plate legible
– Status indicator recognisable
– Avoid damage during cylinder replacement
– Make it difficult for gas in the liquid phase to penetrate the
regulation system
– Allow enough room to retrofit the Truma remote display
– Route high-pressure hoses without tension.
If the gas cylinder valves are more than one metre apart, the
additional kit (part no. 50020-61100) may be used.
